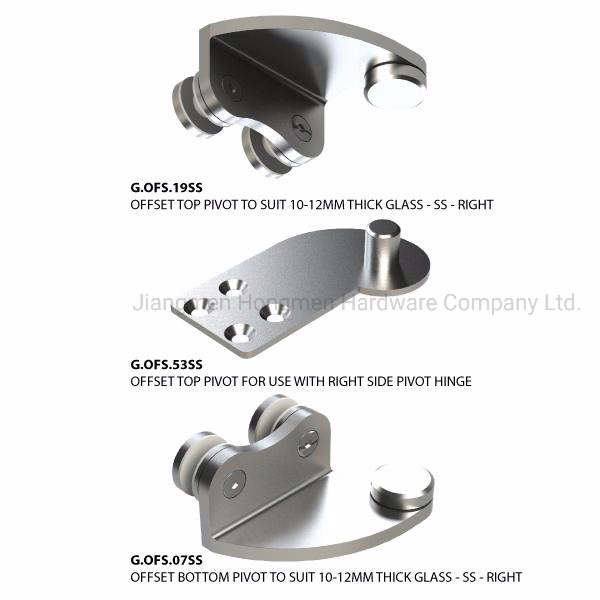

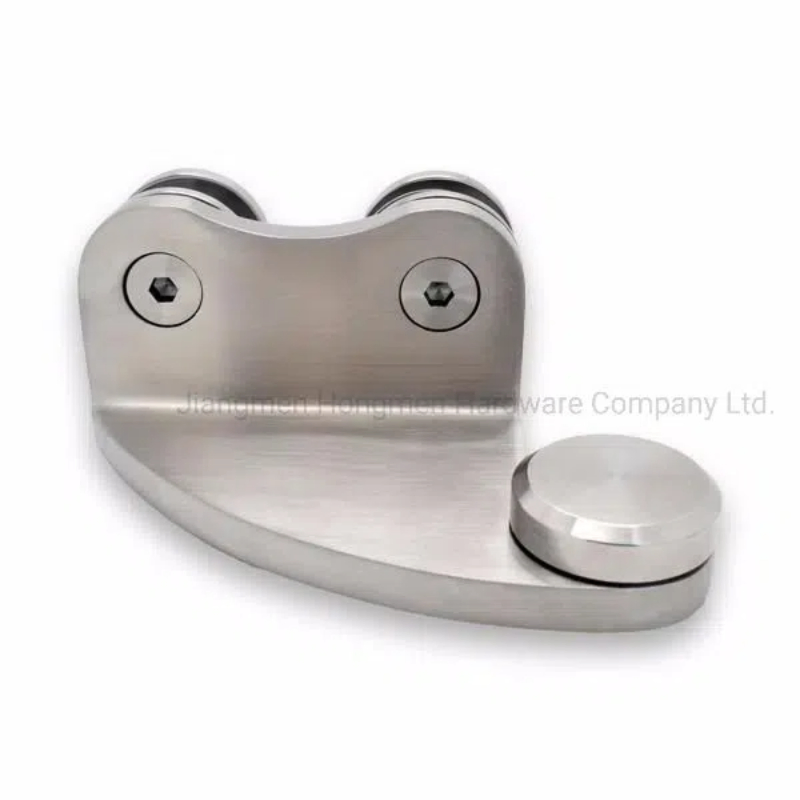

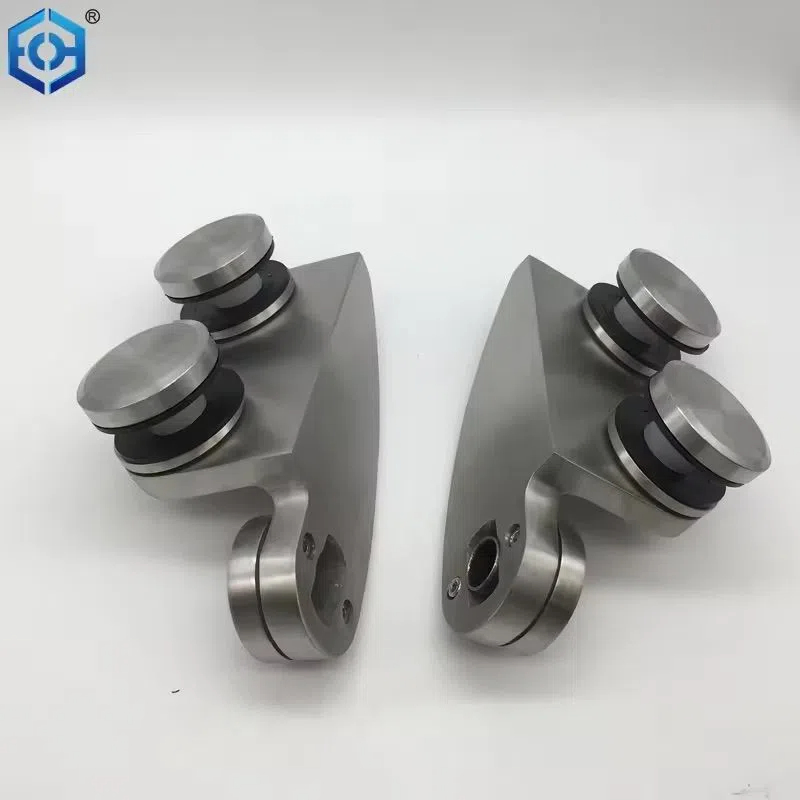

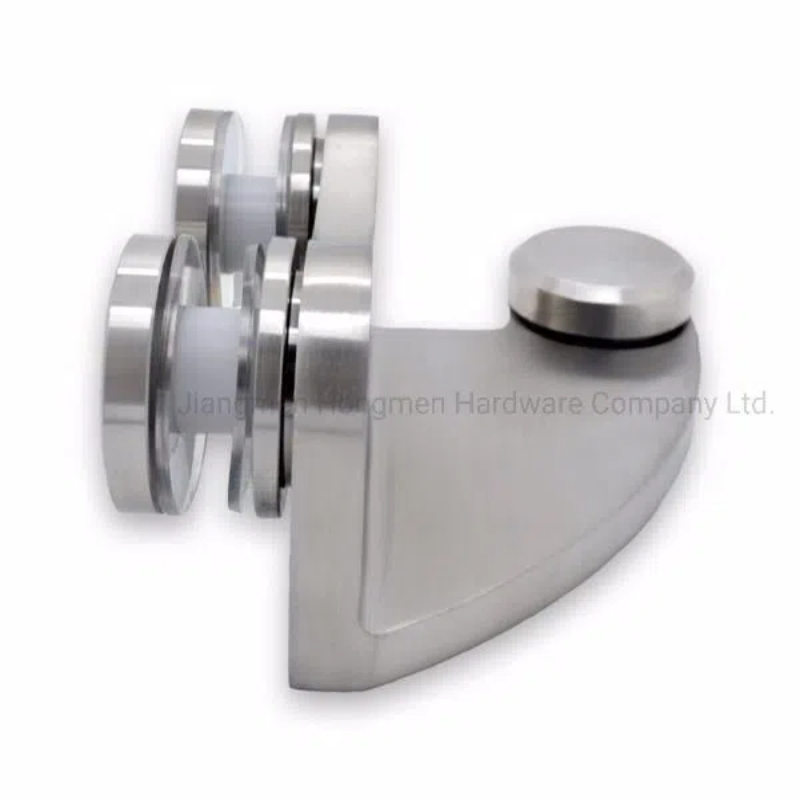

Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right
Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right
Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right
Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right
Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right
1 / 5
Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right
Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right
Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right
Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right
Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right

Offset Bottom Pivot to Suit 10-12mm Thick Glass-Ss-Right

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
G. OFS. 07. SS
Type
360° Hinge
Finish
Powder Coating
Material
Stainless Steel
Origin
China
Product Name
Pivot Hinge
Application
Frameless Glass Doors, Outer Door, Glass Door
MOQ
100PCS
Packing
White Box
Specification
23.2 x 8.9 x 6.6 cm
Capacity
100,000 sets Per Month
Trademark
OEM
📦

Packaging & Delivery

Package Size
40.00cm * 30.00cm * 30.00cm
Gross Weight
2.000kg
★

Product Description

Maximum Door Width 1000mm
Maximum Door Weight 100kg

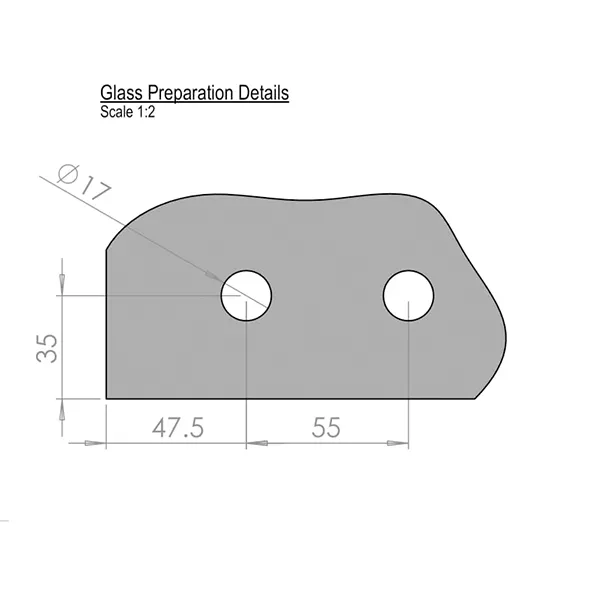

Offset Bottom Pivot

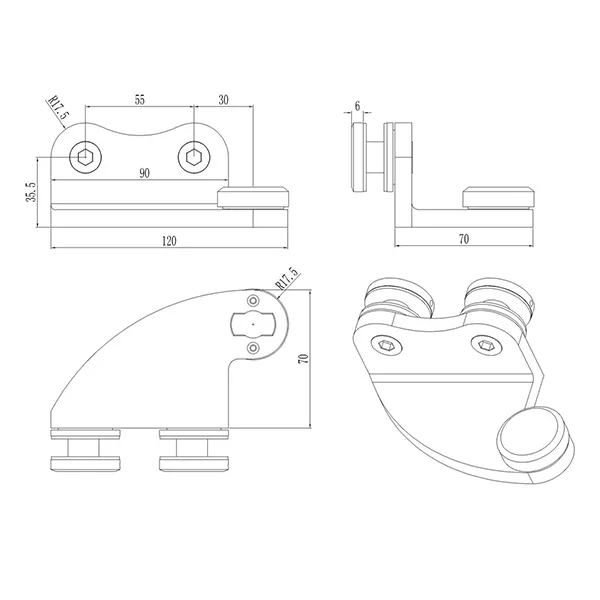

Glass Door Pivot Hinge
✔
Excellent Pivot Set: Ideal when door weight stress on traditional door frame butt hinges is a concern.
✔
Premium Material: Constructed from high-quality Stainless Steel for durability and rust resistance.
✔
Versatile Application: Suitable for wooden doors, cabinet doors, alloy doors, and tall building rotary doors.
✔
Package Contents: Includes 1 set x I Shape Door Pivot Hinge and 1 set x L Shape Door Pivot Hinge.

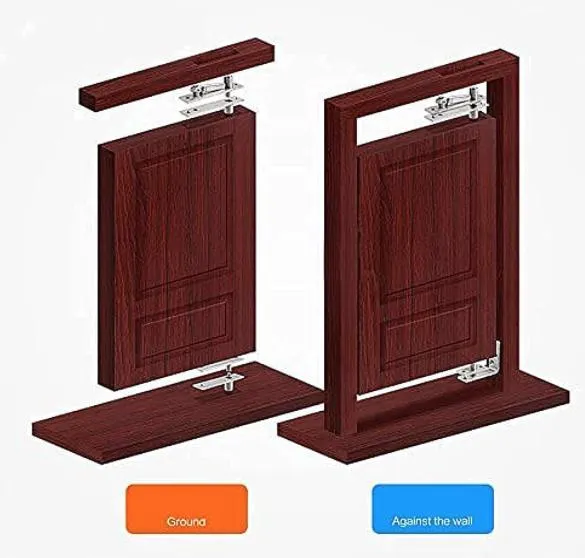

Pivot Detail 1

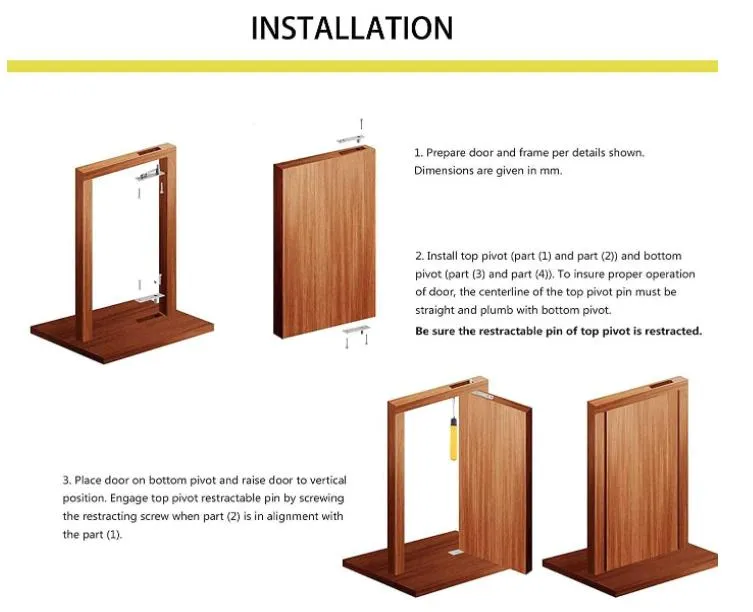

Pivot Detail 2

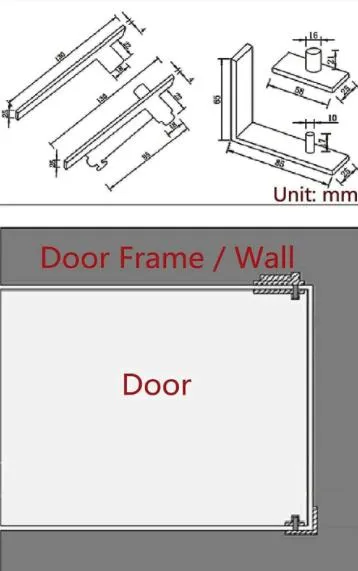

Pivot Detail 3

Heavy Duty Stainless Steel Hidden Door Pivot Hinge System

  • Rugged metal construction made of thick stainless steel, specially treated to prevent rust and breakage.
  • Supports the door from the bottom arm and the floor instead of the frame, reducing structural pressure.
  • Unique up and down link function with 360-degree rotation for a clean, elegant look.
  • Easy installation with detailed visual instructions for a step-by-step setup.
  • Strict quality control ensures the highest standards for long-term service life.
?

Frequently Asked Questions

What is the maximum door weight this hinge can support?
The pivot hinge system is designed to support a maximum door weight of 100kg.
Is this hinge suitable for glass doors?
Yes, it is specifically designed as an offset bottom pivot to suit 10-12mm thick frameless glass doors.
What material is the hinge made of?
The hinge is constructed from high-grade Stainless Steel with a powder-coated finish for enhanced durability and rust prevention.
Does the hinge allow for full rotation?
Yes, this model features a 360-degree rotation capability, making it ideal for rotary or invisible doors.
What are the dimensions of the I Shape and L Shape parts?
The I Shape top part is 130mm x 25mm. The L Shape part features a shaft size of 18 x 53mm and a plate size of 58 x 25mm.
Where can this pivot hinge be applied?
It is widely used in bedrooms, living rooms, and tall buildings for wooden doors, aluminum frame doors, cabinet doors, and hidden door systems.
