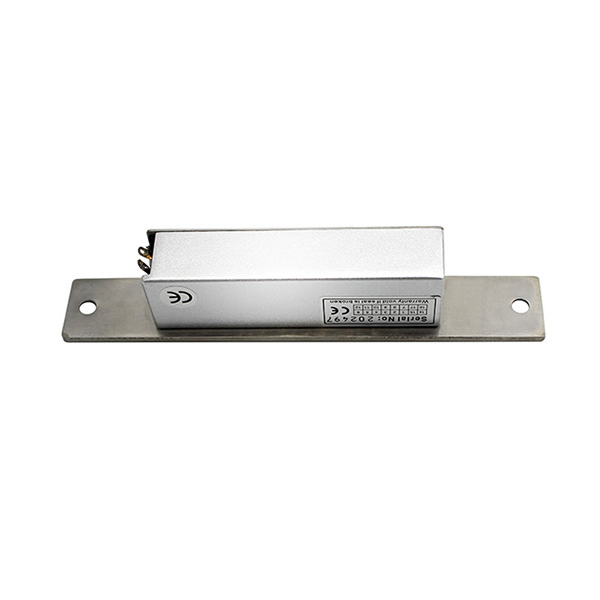

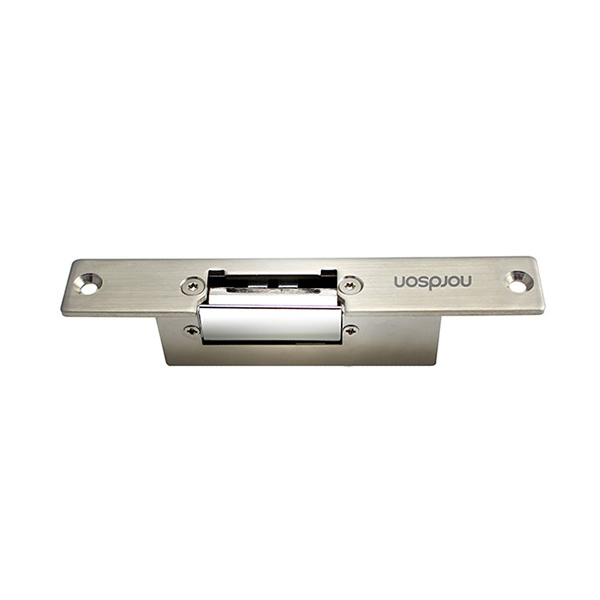

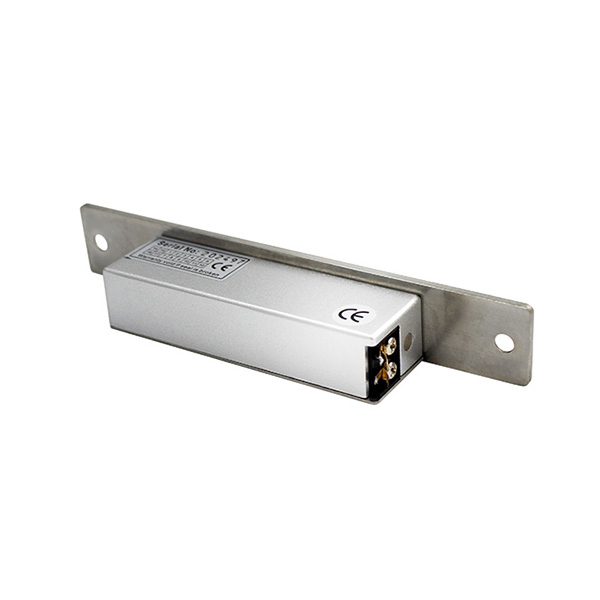

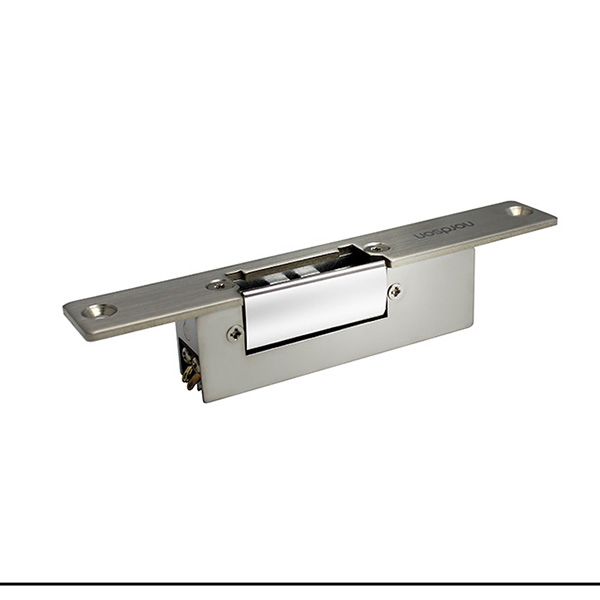

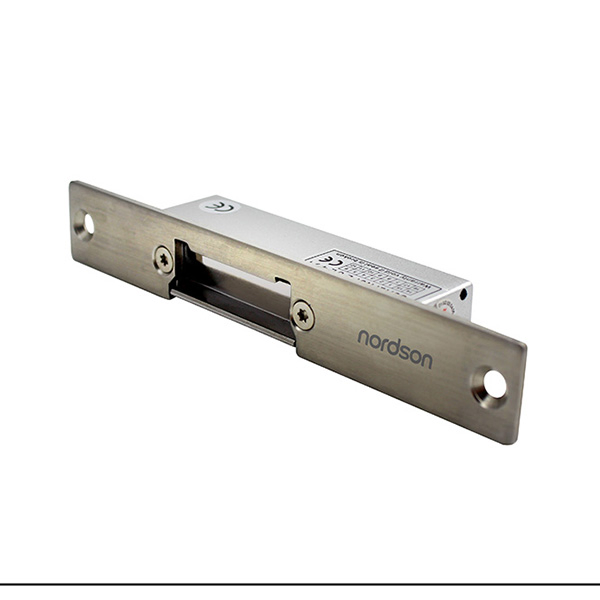

Wide Mouth Nordson Type Electric Strike Locks with Lock Status Sensor

1 / 5

Wide Mouth Nordson Type Electric Strike Locks with Lock Status Sensor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

NJ-350 electric strike lock

Style

Modern

Shear Strength

500kg

Operating Voltage

DC 12V

Standby Current

200mA

Face Plate Material

High Aluminum

Usage

Cabinet Lock, File Drawer Lock, etc.

Dimensions

150Lx28Wx31H(mm)

🔍 Product Overview

Wide Mouth Type Electric Strike Locks

The NJ-350B is a wide-mouth-type electric door strike operating at 12V. It utilizes magnetic force generated by an electromagnetic field for efficient locking and unlocking, featuring integrated short circuit protection. This model supports two working modes: Power-to-open and Power-to-lock. Constructed from high-quality aluminum, it offers superior hardness, corrosion resistance, and anti-deformation properties. It is ideal for wooden, metal, and PVC doors.

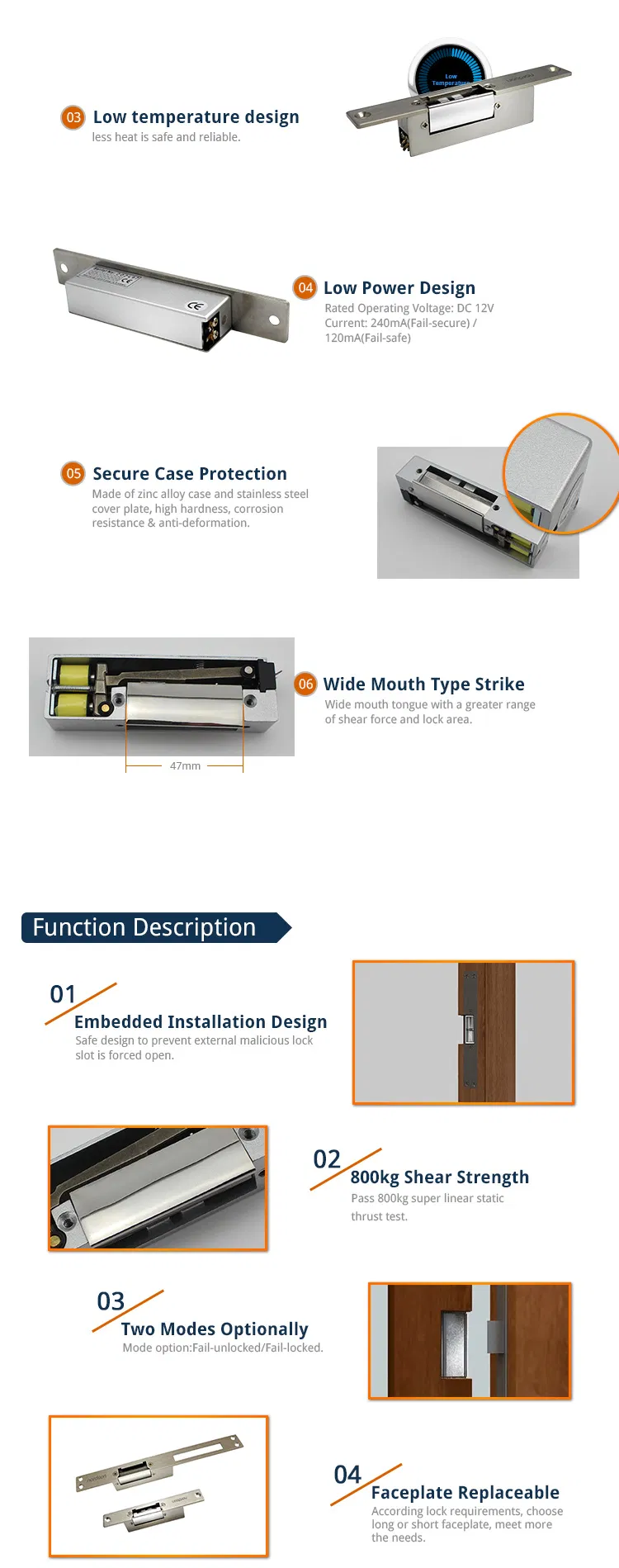

⭐ Key Functions

✔ Passed 1200lbs super linear static thrust test for maximum security.

✔ Dual Mode Options: Fail-unlocked (Fail-safe) and Fail-locked (Fail-secure).

✔ Adjustable tongue distance suitable for standard-type doors.

✔ Direct installation on metal door frames with convenient mounting holes.

✔ Passed 100,000 times high temperature aging tests.

✔ CE Certificate & MA Certificate approved for quality assurance.

📊 Technical Parameters

Version Options	NJ-350A: Fail-locked (Locked when power is off) NJ-350B: Fail-unlocked (Unlocked when power is off)
Shear Strength	500kg
Rated Operating Voltage	DC 12V
Ambient Temperature	-10°C to +55°C
Surface Temp	Low Temperature Operation
Suitable Doors	Wooden, Aluminum, Glass, Fireproof, and Metal Doors
Certification	CE-mark & RoHS-mark for building

📸 Product Gallery

❓ Frequently Asked Questions

1. What is the difference between NJ-350A and NJ-350B?

NJ-350A is Fail-locked (Stay locked when power is lost), while NJ-350B is Fail-unlocked (Opens automatically when power is lost).

2. How much pressure can this electric strike withstand?

This lock has passed a 1200lbs (500kg) linear static thrust test, providing high-level security.

3. Can this lock be used on glass or fireproof doors?

Yes, it is designed to be compatible with wooden, aluminum, glass, fireproof, and metal doors.

4. What are the power requirements for installation?

The lock operates on a rated voltage of DC 12V with a standby current of 200mA.

5. Is the material durable for long-term use?

Yes, it is made of high-quality aluminum known for high hardness, corrosion resistance, and anti-deformation, having passed 100,000 aging tests.
