Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock
Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock
Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock
Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock
Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock
1 / 5
Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock
Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock
Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock
Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock
Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock

Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock

Customization: Available
Material: 304 Stainless Steel
Type: Electronic
Send Inquiry

Product Description

Basic Information

Model NO.
NJ-320B glass door electric strike lock
Style
Modern
Shape
Cubiod
Anti-theft Standard
A
Usage
Household Door Locks, Bedroom, Channel Lock
Shear Strength
1600lbs(800kg)
Rated Operating Voltage
DC 12V
Face Place Material
Stainless Steel

Product Overview

NJ-320B is a heavy-duty ANSI standard American Electric Strike designed with magnetic force generated by an electromagnetic field for efficient locking and unlocking. It features specialized short circuit protection and offers two working modes: Power-to-open and Power-to-lock. Crafted from high-quality stainless steel, it ensures superior hardness, corrosion resistance, and anti-deformation properties. This lock is ideal for wooden doors, metal doors, and PVC doors.

Key Functions

  • Passes 1600lbs super linear static thrust test for maximum security.
  • Dual mode options: Fail-unlocked and Fail-locked available.
  • Strictly follows ANSI standards for the US Market.
  • Supports direct installation on Wooden, PVC, and metal door frames.
  • Highly durable: Passed high-temperature aging tests 100,000 times.
  • Premium construction: High-quality stainless steel for corrosion resistance.
  • Deep strike trough (15mm) compatible with various mechanical locks.
  • CE Certificate and MA Certificate approved.

Technical Specifications

Version NJ-320A: Fail-locked | NJ-320B: Fail-unlocked
Shear Strength 1600Lbs (800kg)
Operating Voltage DC 12V
Standby Current 220mA
Material Stainless Steel
Temperature Range -10°C to +55°C
Door Compatibility Wooden, Aluminum, Glass, Fireproof, and Metal doors
Dimensions 124L * 32W * 36H (mm)
Weight 0.38kg

Product Gallery

ANSI Standard Electric Strike Lock Structure

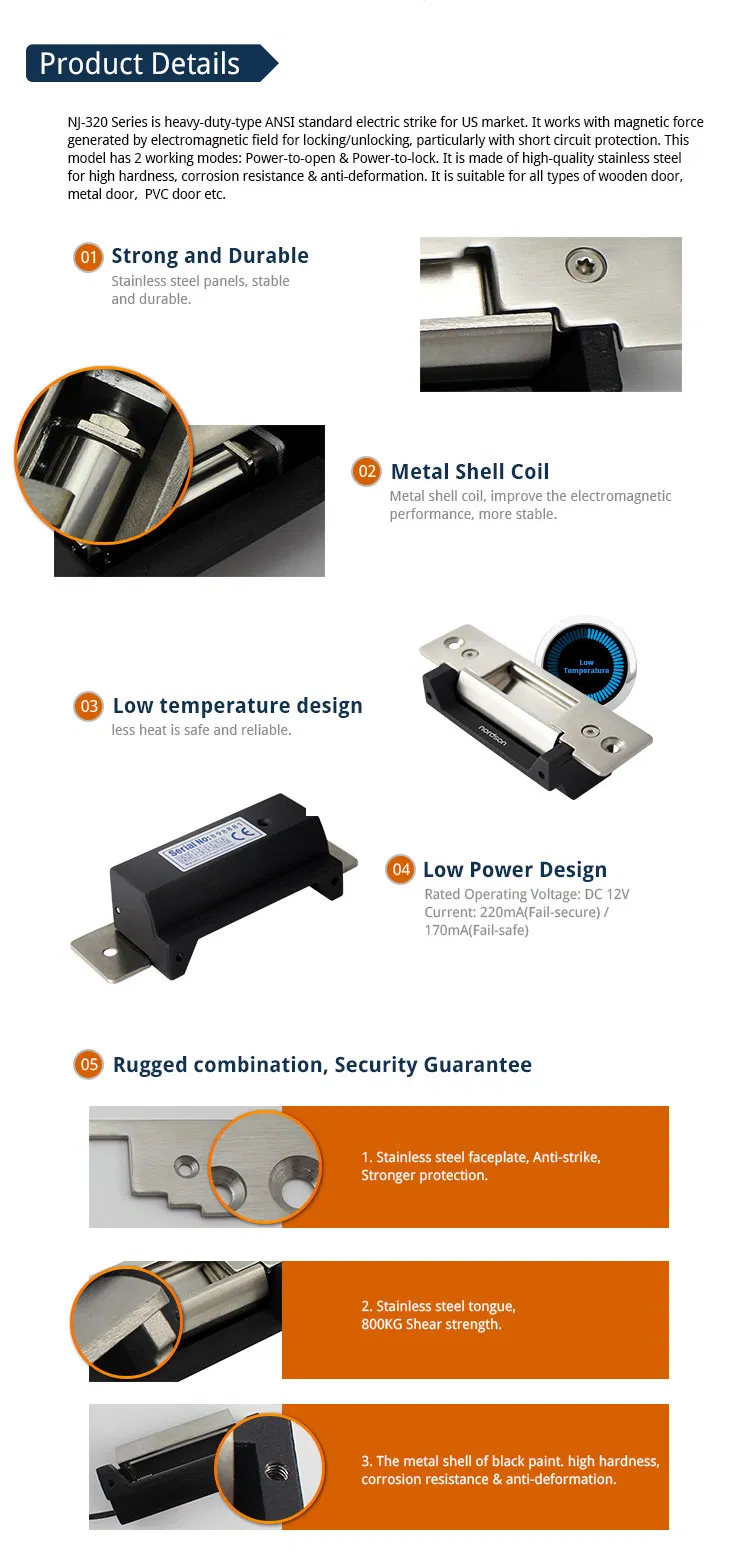

Heavy Duty Electric Strike Lock Dimensions

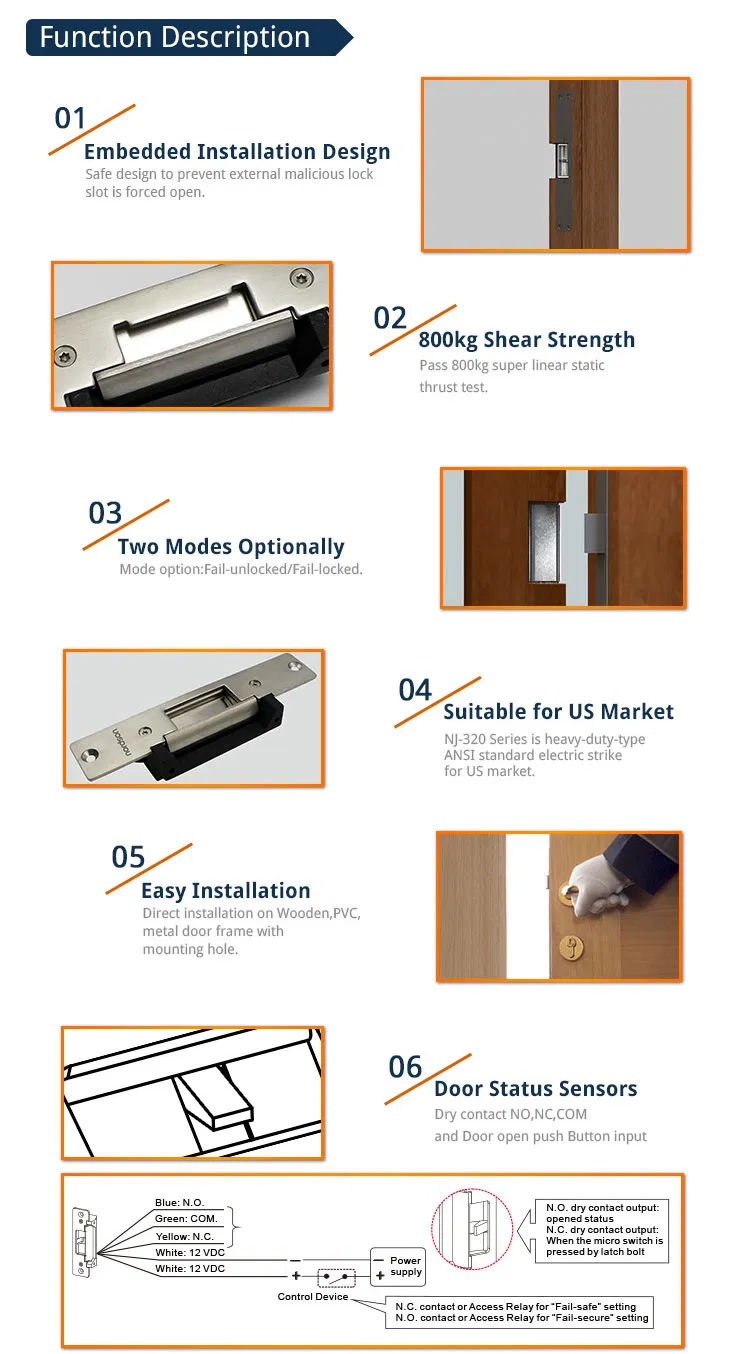

Glass Door Electric Strike Installation

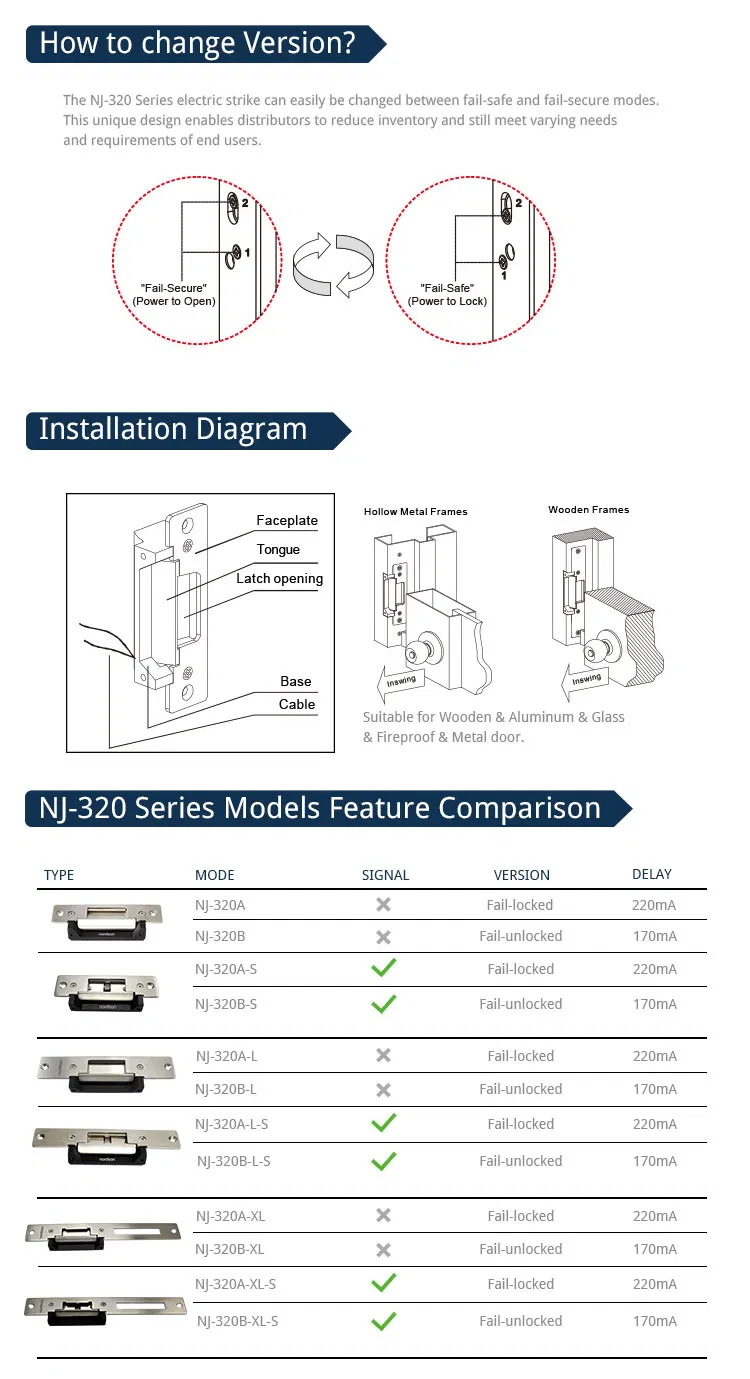

Electric Strike Lock Components

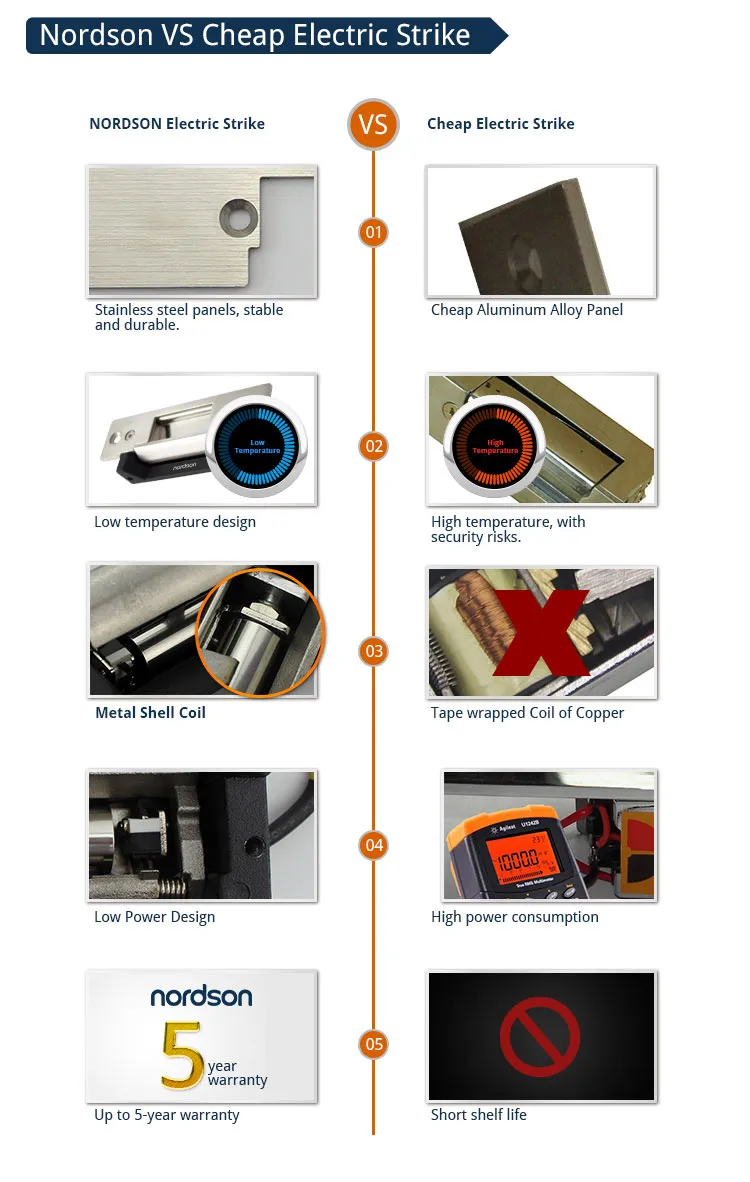

Electric Strike Lock Fail-Unlocked Mode

Frequently Asked Questions

● What is the difference between NJ-320A and NJ-320B?
NJ-320A is "Fail-locked" (stays locked when power is off), while NJ-320B is "Fail-unlocked" (unlocks when power is cut for safety/egress).
● Is this lock compatible with ANSI standards?
Yes, this model is designed according to heavy-duty ANSI standards, making it ideal for the US market and similar architectural requirements.
● What types of doors can I install this lock on?
It is versatile and suitable for wooden, metal, PVC, aluminum, and fireproof door frames.
● How much physical force can this strike lock withstand?
The lock has passed a super linear static thrust test of 1600lbs (approximately 800kg).
● Does the NJ-320B have built-in protection?
Yes, it features integrated short circuit protection and has undergone 100,000 cycles of high-temperature aging tests to ensure long-term reliability.
● What is the operating voltage and current?
The lock operates on DC 12V with a standby current of 220mA.
