Heavy-Duty-Type ANSI Standard Fail Safe Electric Strike Lock with Signal

Heavy-Duty ANSI Standard Fail Safe electric strike lock with Signal

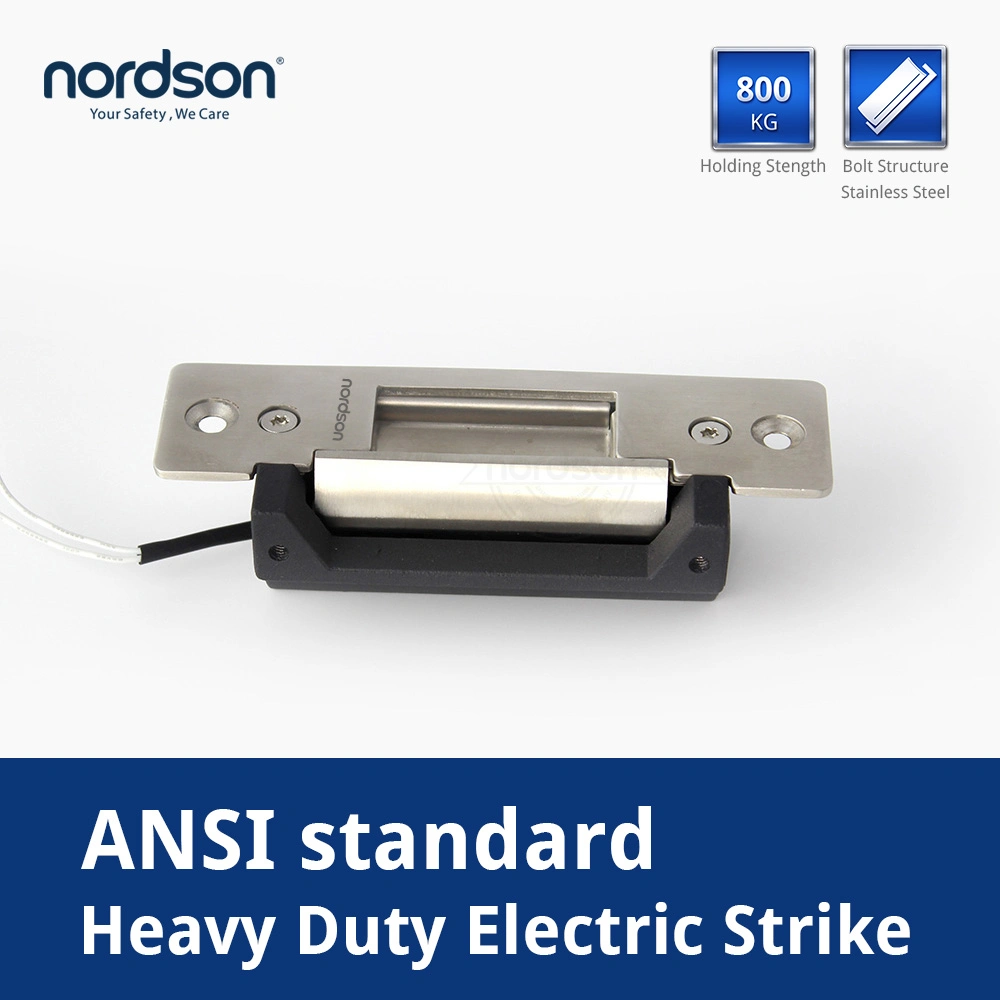

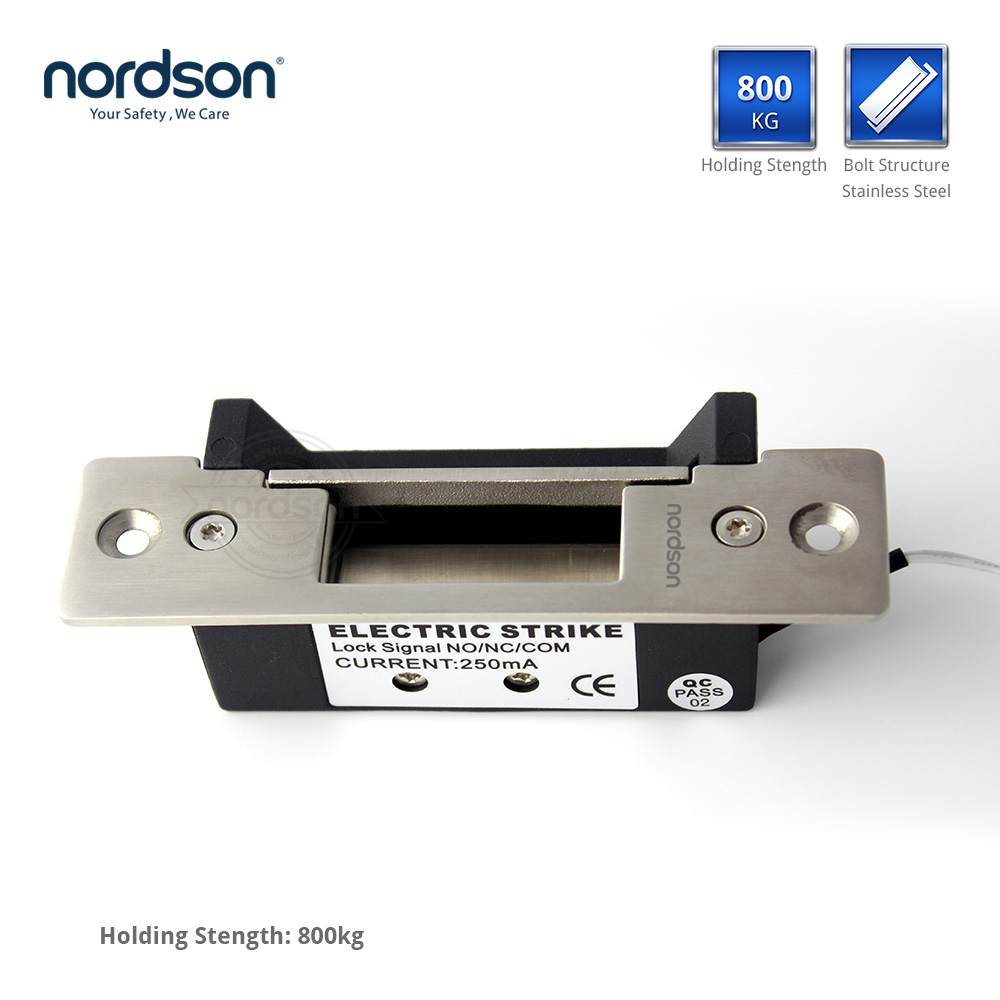

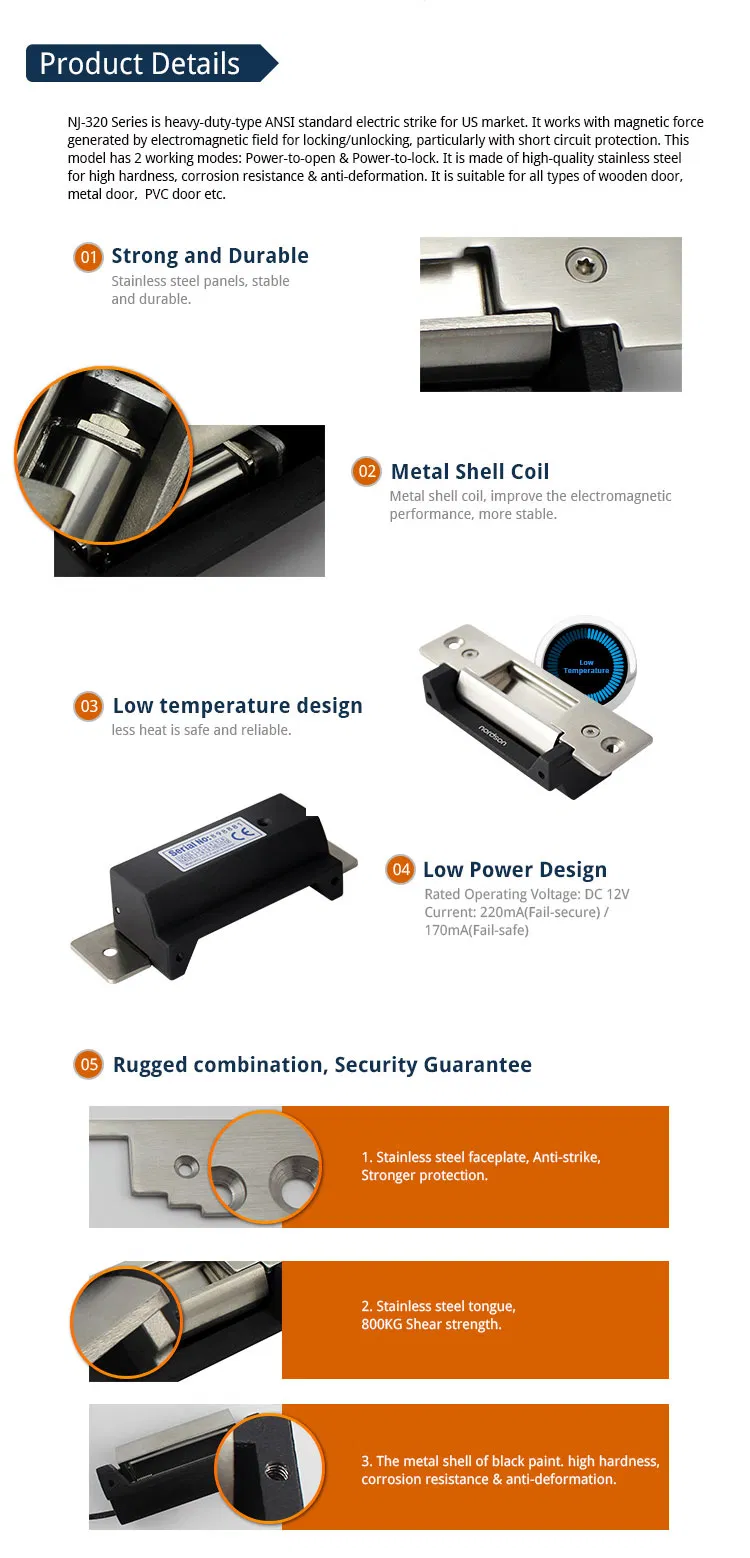

NJ-320B-S is a heavy-duty ANSI standard electric strike lock featuring feedback signal output. Utilizing magnetic force generated by an electromagnetic field for secure locking and unlocking, it includes short circuit protection. This model supports two working modes: Power-to-open and Power-to-lock. Constructed from high-quality stainless steel, it offers superior hardness, corrosion resistance, and anti-deformation properties. It is suitable for wooden, metal, and PVC doors.

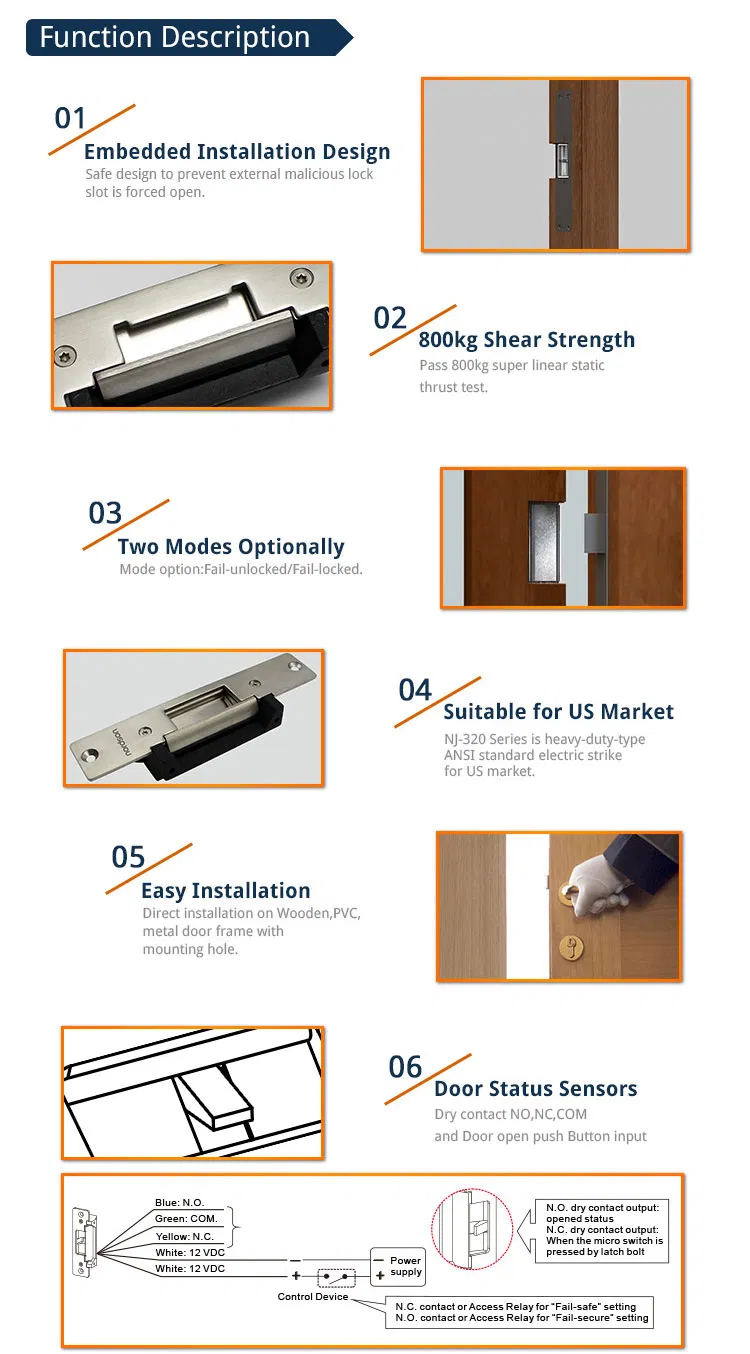

Key Functions:

• Passes 1600lbs super linear static thrust test

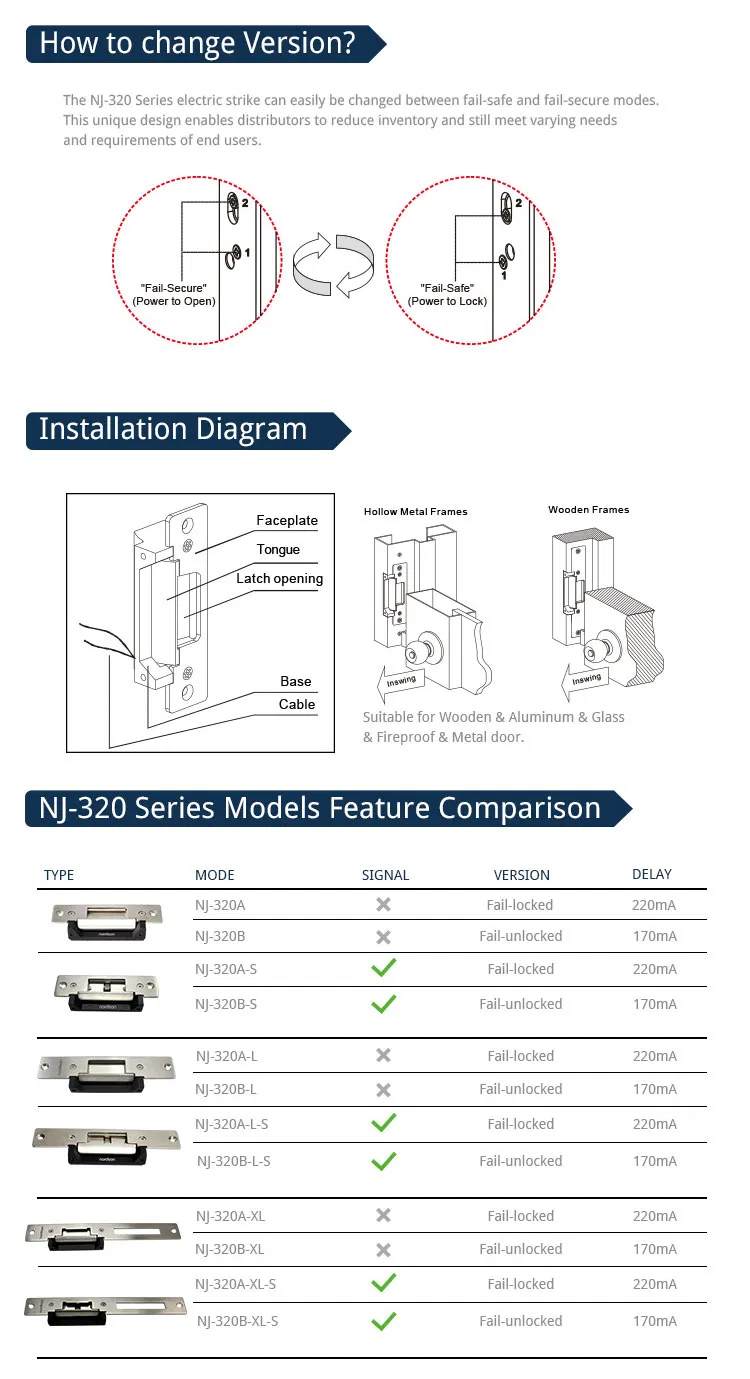

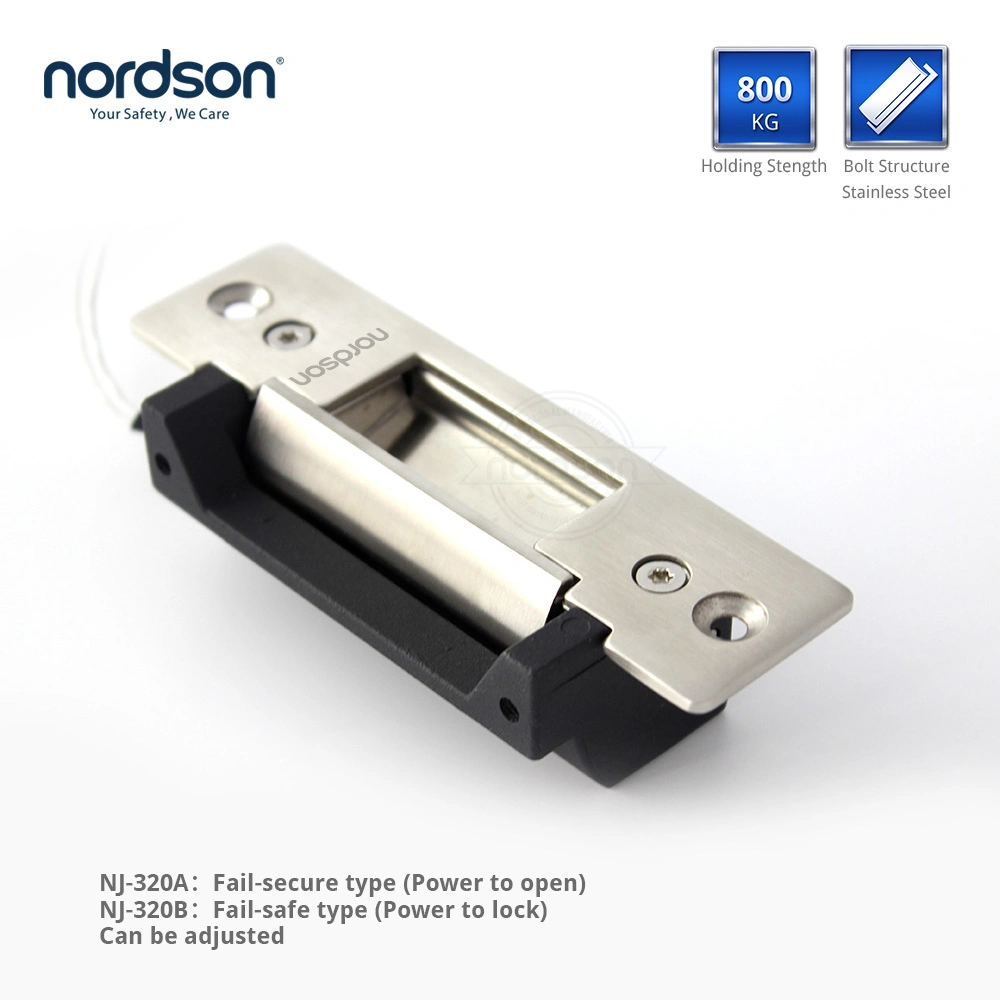

• Multiple mode options: Fail-unlocked or Fail-locked
• Compliant with ANSI standards for the US Market
• Direct installation on wooden, PVC, and metal door frames
• Tested for high-temperature aging up to 100,000 cycles

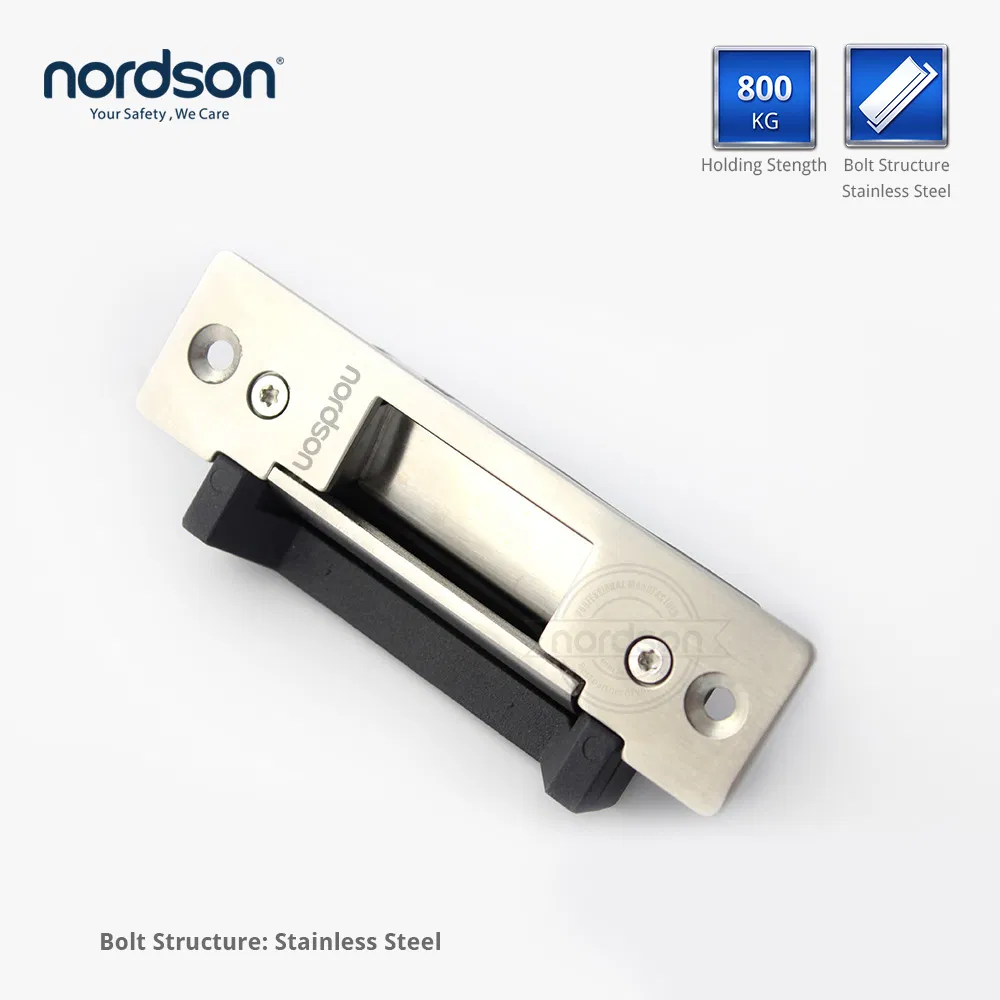

• Made of high-quality stainless steel for maximum durability
• 15mm deep strike trough, compatible with various mechanical locks
• CE and MA Certificates approved
