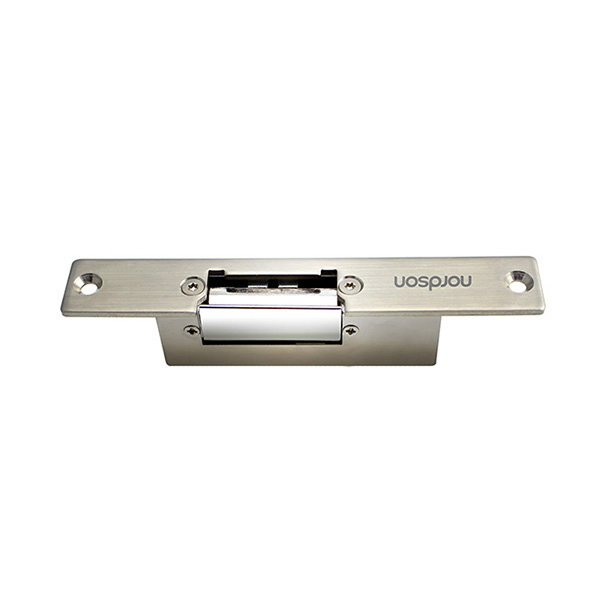

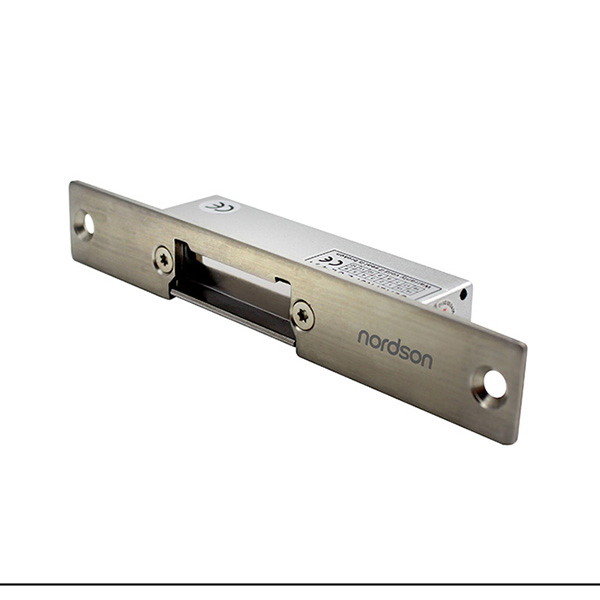

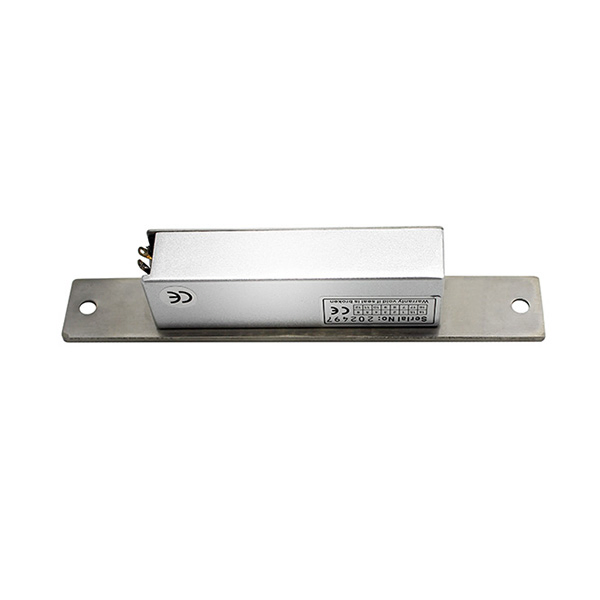

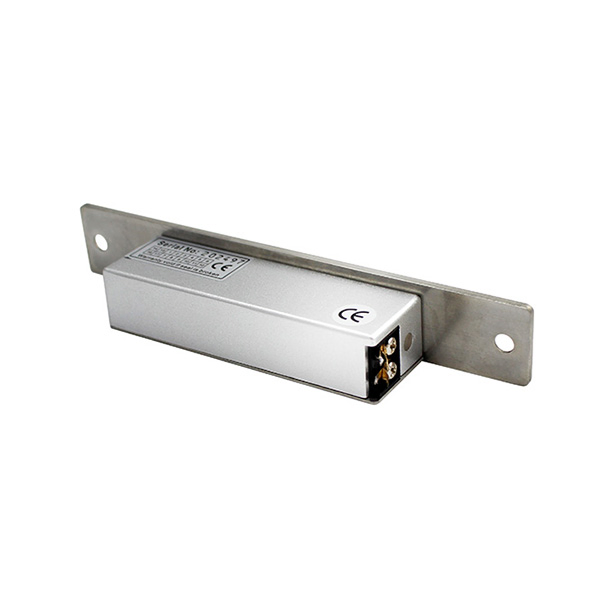

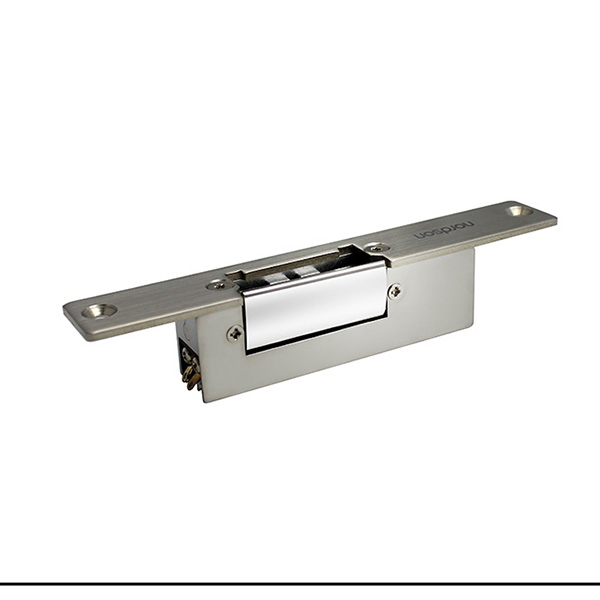

Wide Mouth Type Glass Door Electric Strike Lock with Lock Status Sensors

1 / 5

Wide Mouth Type Glass Door Electric Strike Lock with Lock Status Sensors

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

NJ-350 glass door electric strike lock

Style

Modern

Shape

Cuboid

Anti-theft Standard

Part

Lock

Backset

No Size Limit

Door Thickness Fits

Unlimited

Usage

Cabinet Lock; File Drawer Lock, etc.

Shear Strength

500kg

Rated Operating Voltage

DC 12V

Standby Current

200mA

Face Place Material

High Aluminum

🔍 Product Description

Wide Mouth Type Glass Door Electric Strike Lock

Overview: NJ-350B is a wide-mouth-type electric door strike 12v. It works with magnetic force generated by an electromagnetic field for locking/unlocking, featuring short circuit protection. This model offers 2 working modes: Power-to-open & Power-to-lock. Made of high-quality aluminum, it ensures high hardness, corrosion resistance, and anti-deformation. Suitable for wooden, metal, and PVC doors.

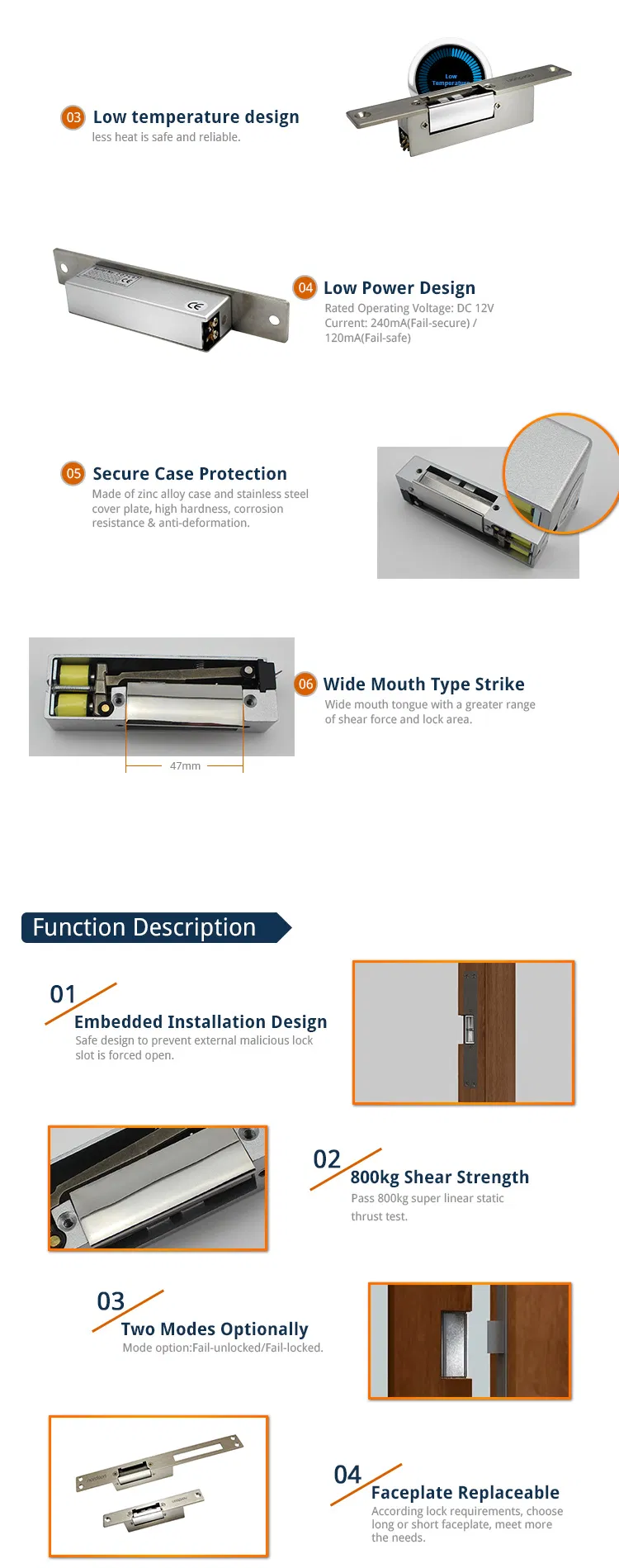

🛠️ Core Functions

Pass 1200lbs super linear static thrust test

Mode option: Fail-unlocked/Fail-locked

Suitable for standard-type doors with adjustable tongue distance

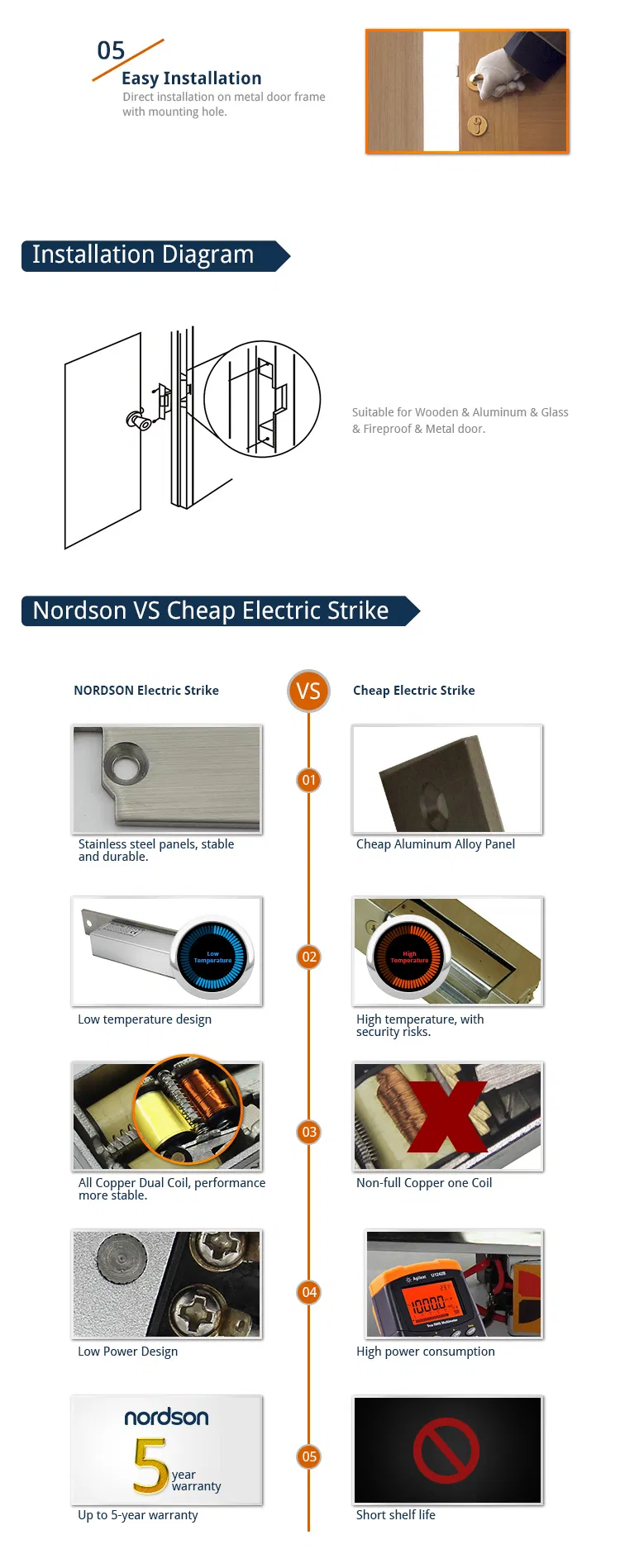

Direct installation on metal door frame with mounting hole

Pass high temperature aging test 100,000 times

High-quality aluminum for superior durability

CE Certificate & MA Certificate approved

📏 Technical Specifications

Version	NJ-350A: Fail-locked (locked when off) NJ-350B: Fail-unlocked (unlocked when off)
Shear Strength	500kg
Rated Operating Voltage	DC 12V
Standby Current	200mA
Face Place Material	High Aluminum
Surface Temperature	Low Temperature
Ambient Temperature	-10°C - +55°C
Suitable for	Wooden, Aluminum, Glass, Fireproof & Metal doors

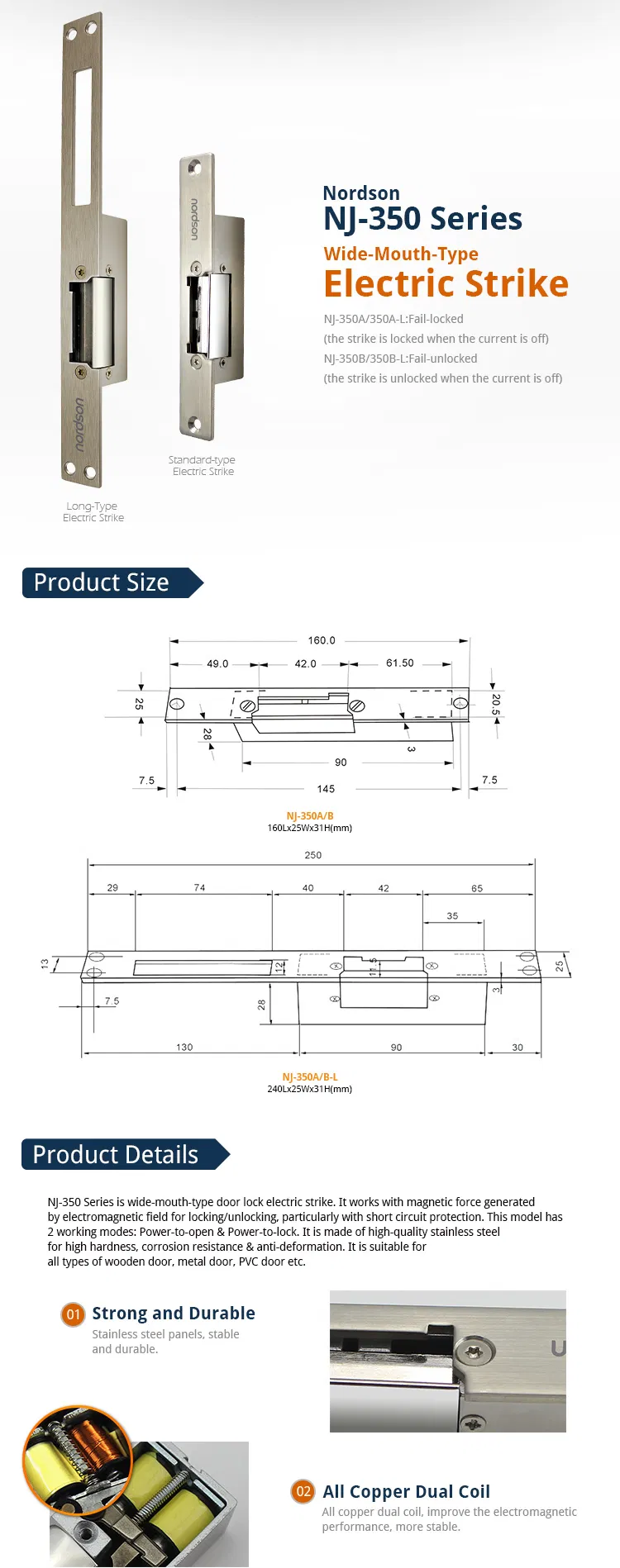

Dimensions (L x W x D)	150L x 28W x 31H (mm)
Weight	0.5kg
Certifications	CE-mark & RoHS-mark

🖼️ Product Gallery

❓ Frequently Asked Questions

What is the holding force capacity of the NJ-350 lock?

The lock has passed a 1200lbs (500kg) super linear static thrust test, providing robust security for various door types.

What is the difference between Fail-locked and Fail-unlocked versions?

NJ-350A is Fail-locked (remains locked when power is lost), while NJ-350B is Fail-unlocked (unlocks automatically when power is cut off).

What door materials is this electric strike compatible with?

It is highly versatile and suitable for wooden, aluminum, glass, fireproof, and metal doors.

What are the power requirements for installation?

The lock operates on a rated voltage of DC 12V with a standby current of 200mA.

Is this lock durable enough for high-traffic areas?

Yes, it has successfully passed high-temperature aging tests for 100,000 cycles, ensuring long-term reliability and performance.

What material is the faceplate made of?

The faceplate is constructed from high-quality aluminum, which offers excellent hardness, corrosion resistance, and prevents deformation.
