Overview:

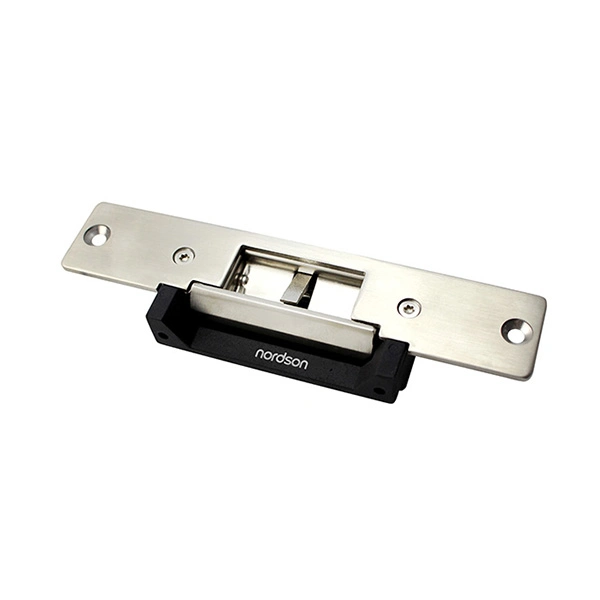

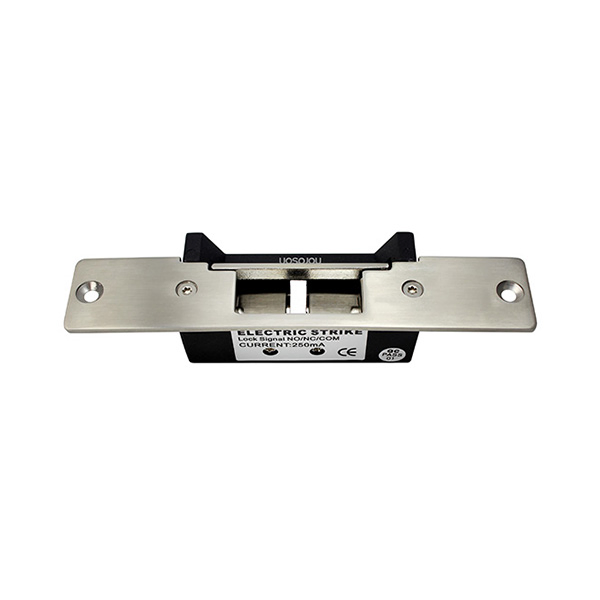

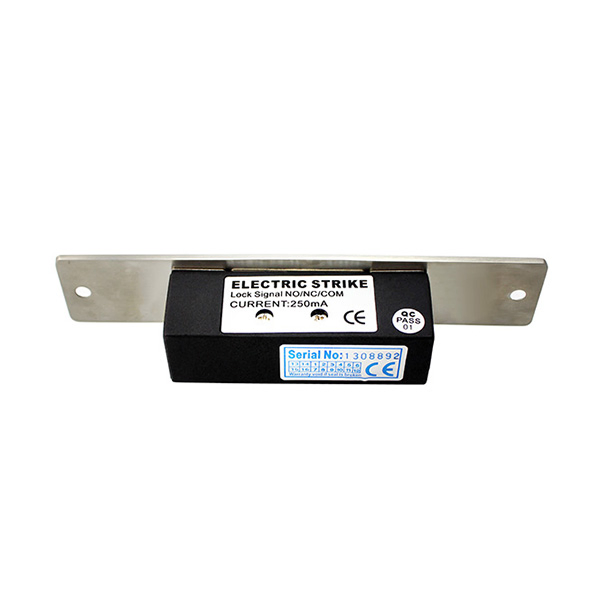

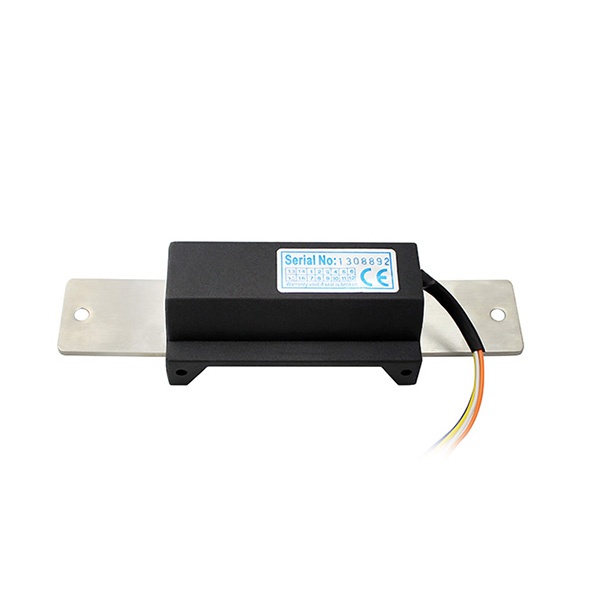

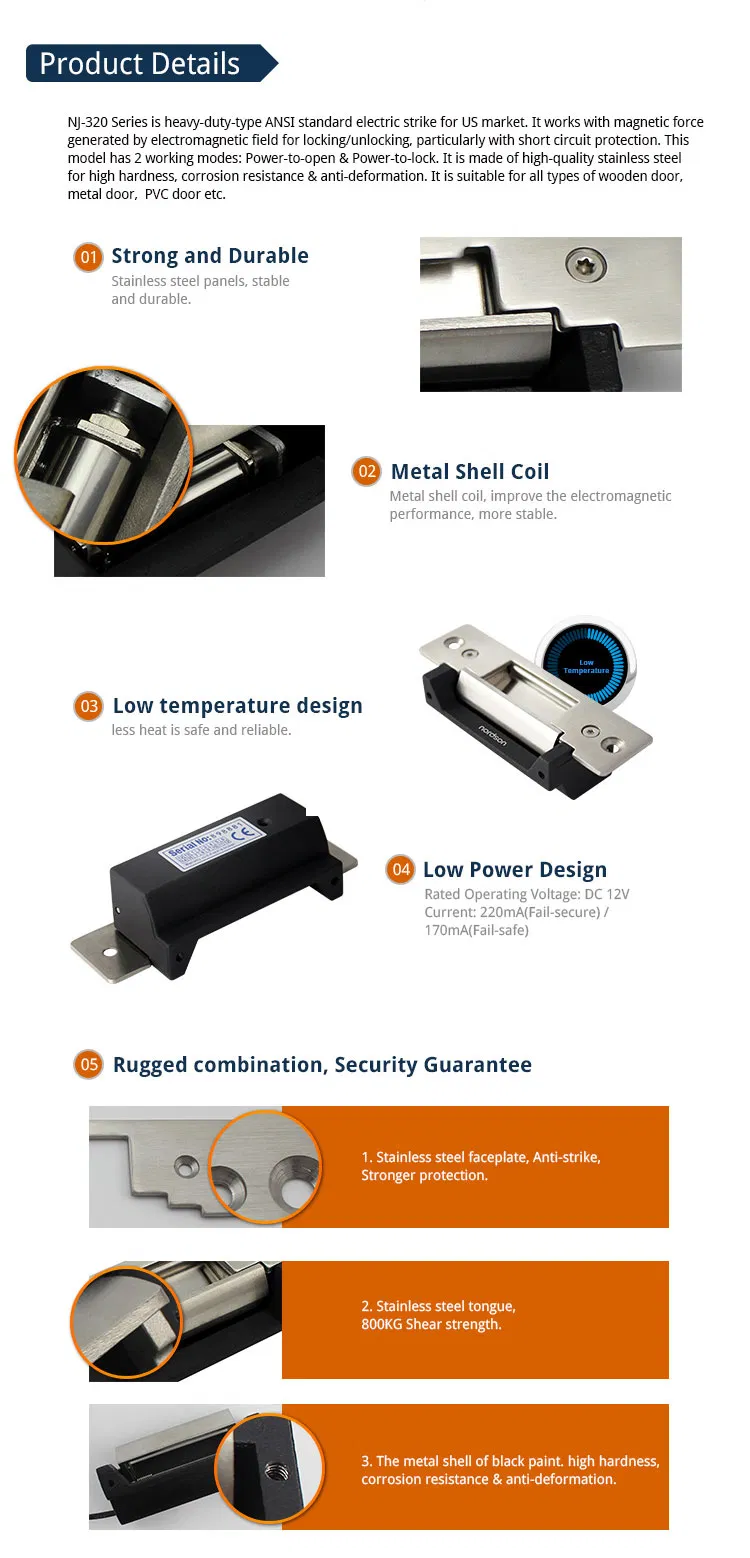

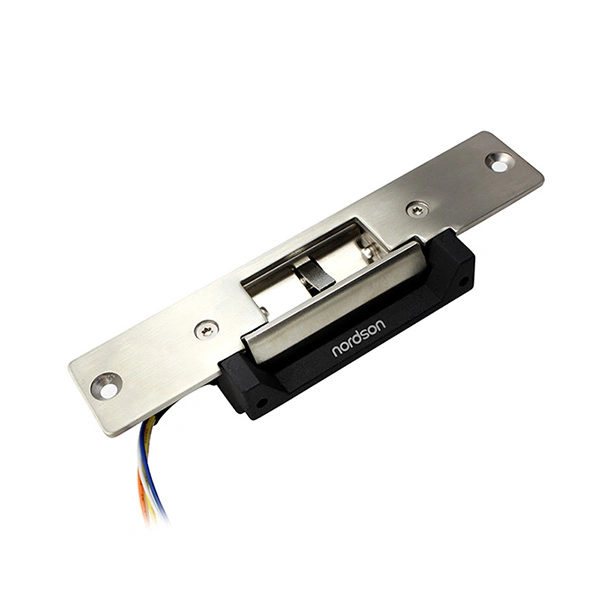

The NJ-320A-L is a heavy-duty, long ANSI standard electric strike lock. It operates using magnetic force generated by an electromagnetic field for locking and unlocking, featuring specialized short circuit protection. This model offers two working modes: Power-to-open and Power-to-lock. Constructed from high-quality stainless steel, it provides exceptional hardness, corrosion resistance, and anti-deformation properties. It is ideal for all types of wooden doors, metal doors, PVC doors, and more.

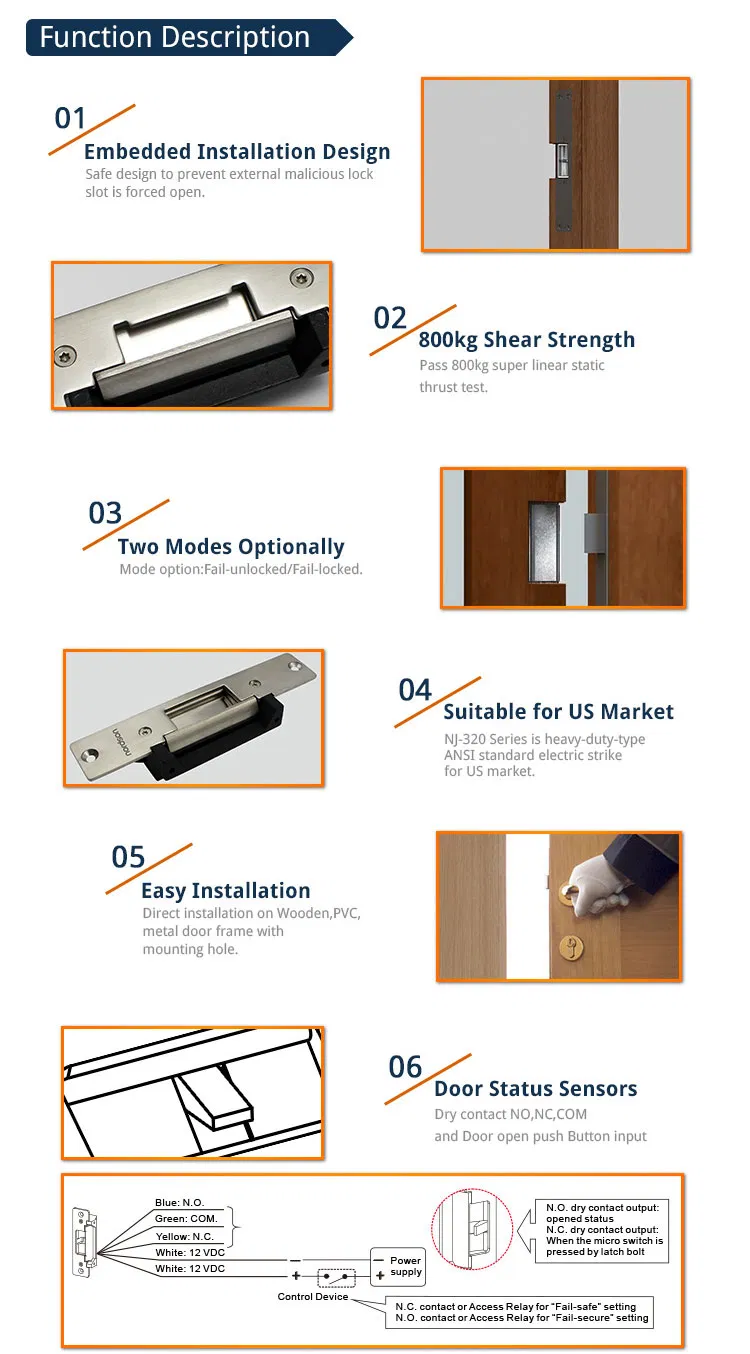

Key Functions:

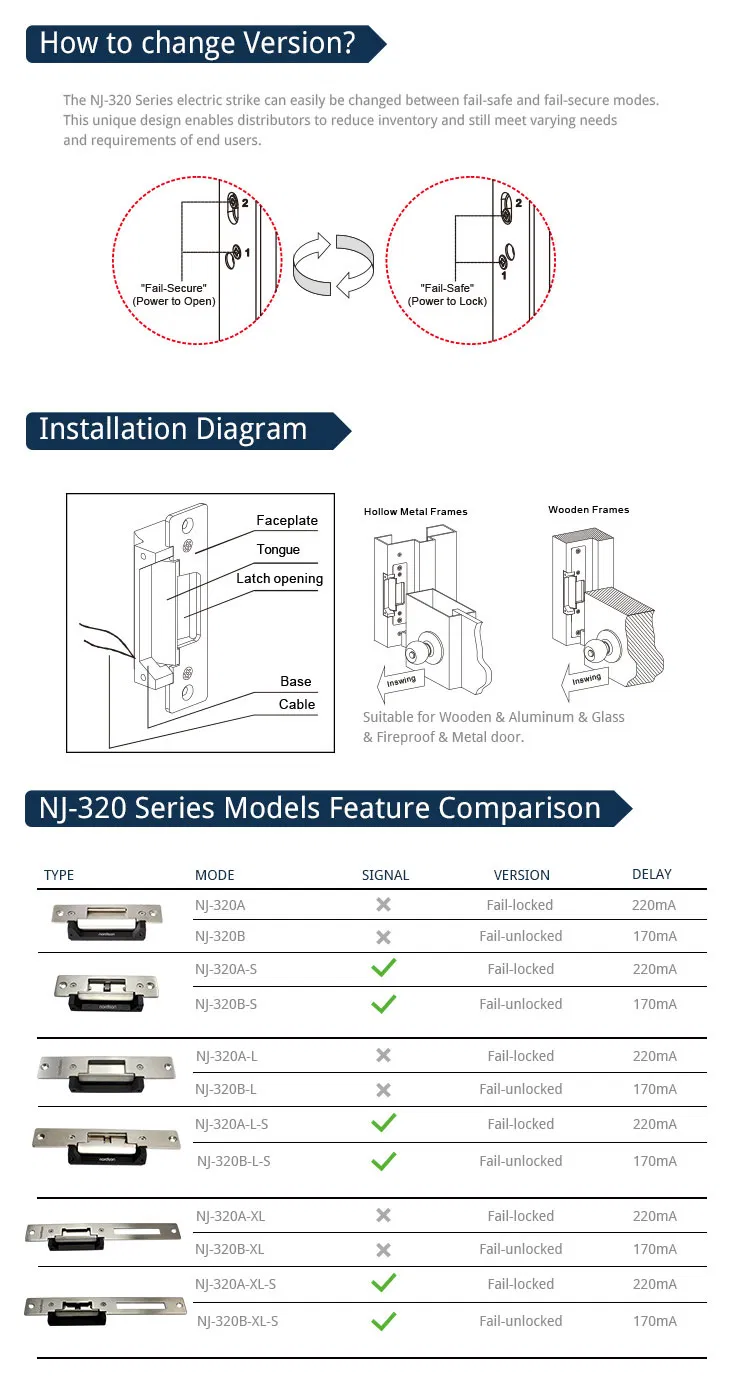

| Version | NJ-320A-L: Fail-locked (locked when power is off) NJ-320B-L: Fail-unlocked (unlocked when power is off) |
| Shear Strength | 1600Lbs (800kg) |
| Lock Status Sensors | NO |
| Operating Voltage | DC 12V |
| Standby Current | 220mA |
| Optional Functions | Lock Status Sensors |
| Face Place Material | Stainless Steel |
| Surface Temp | Low Temperature |
| Ambient Temperature | -10°C - +55°C |
| Suitable For | Wooden, Aluminum, Glass, Fireproof & Metal doors |

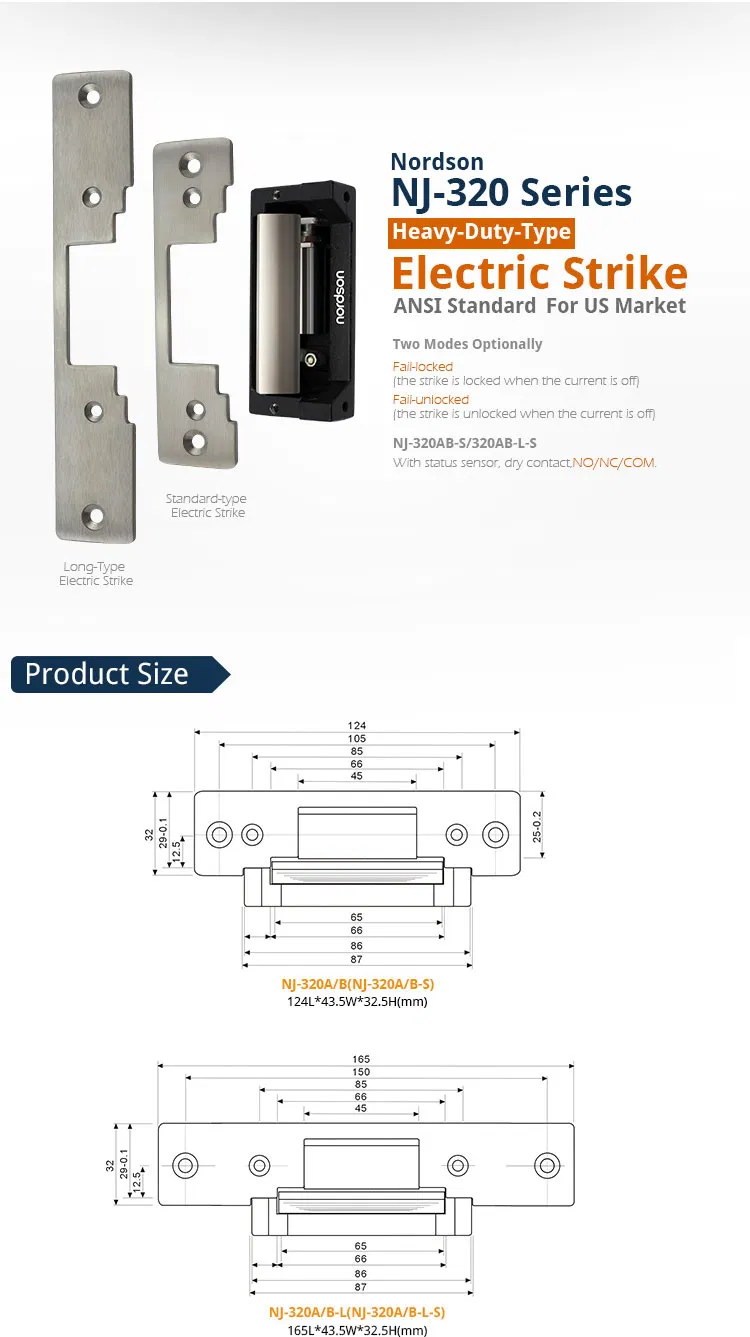

| Dimensions (L x W x D) | 165L x 32W x 36H (mm) |
| Weight | 0.38kg |
| Certifications | CE-mark, RoHS-mark |
