Model NO.
NJ-320A Vending Machine Locker Lock
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Company, Garage, Community
Working Principle
Electronically Controlled Lock
Function
Fail-Safe, Fail-Secure
Material
Stainless Steel Bolt Electric Lock
Specification
CE, ROHS, SGS

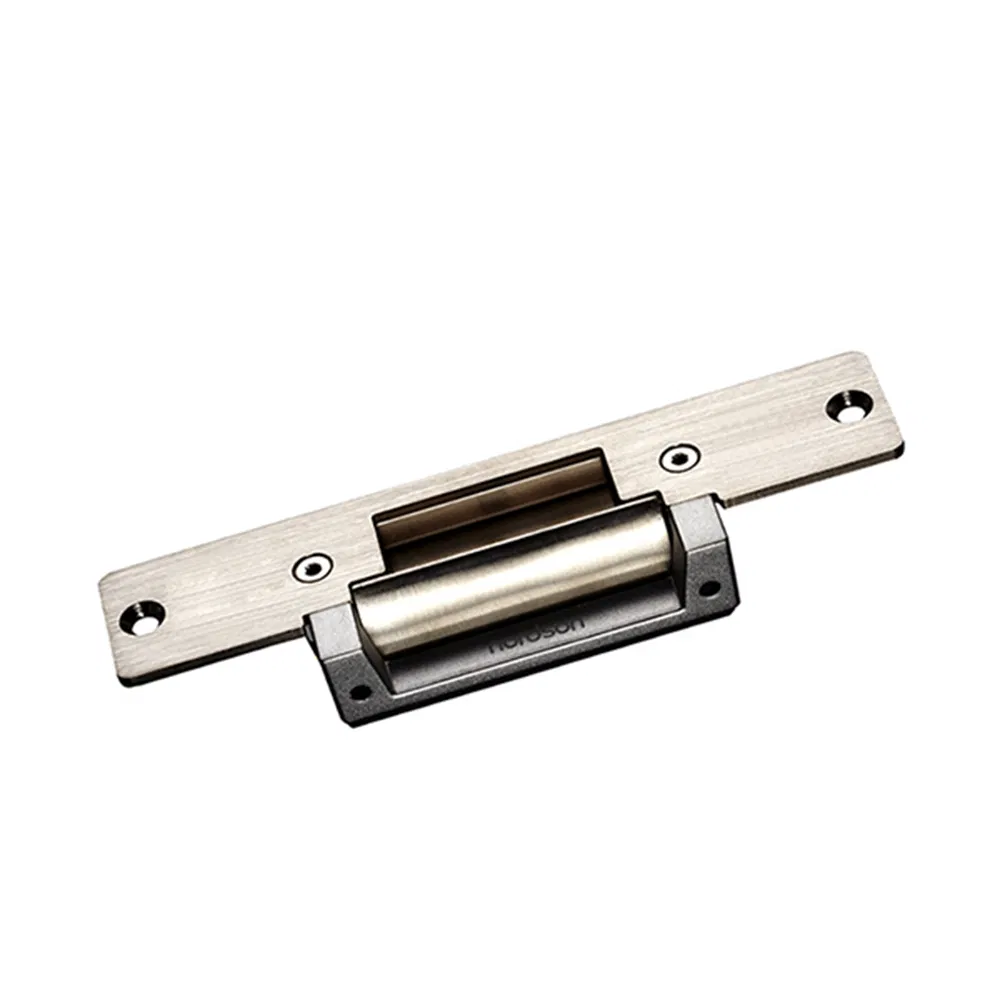

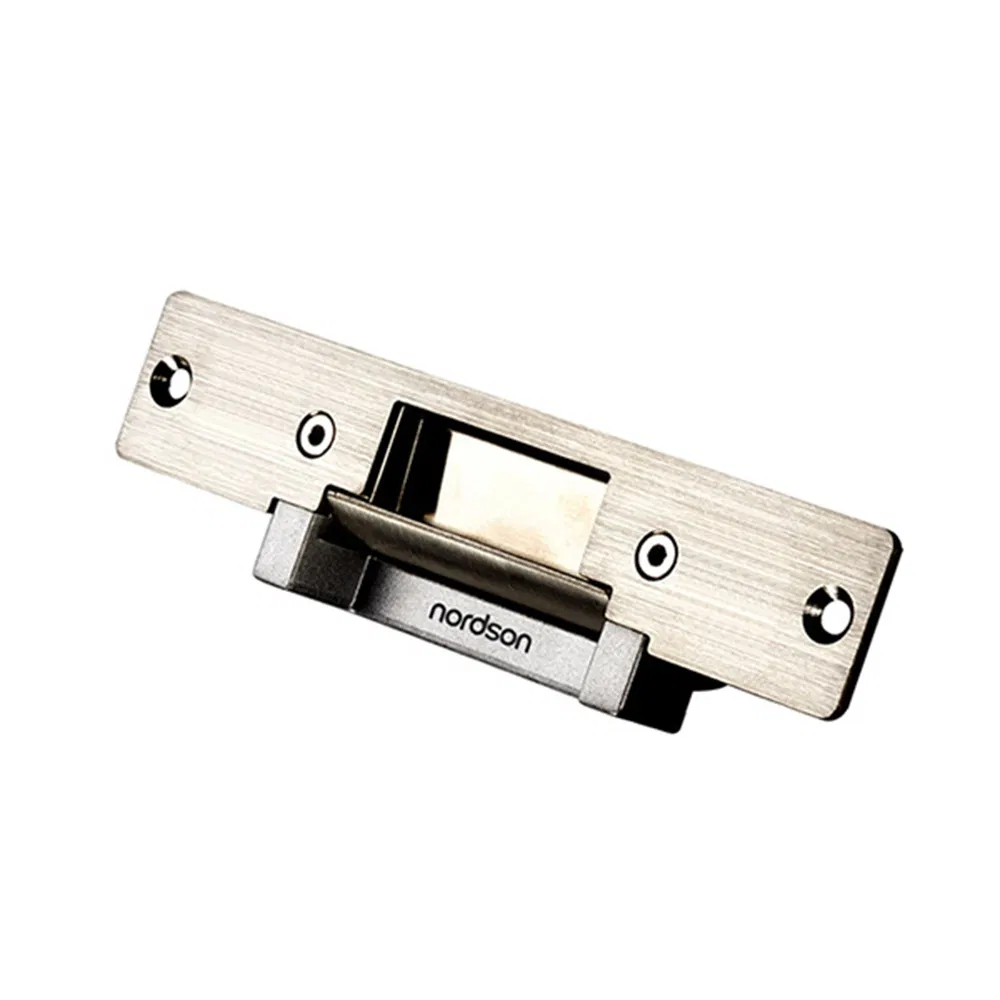

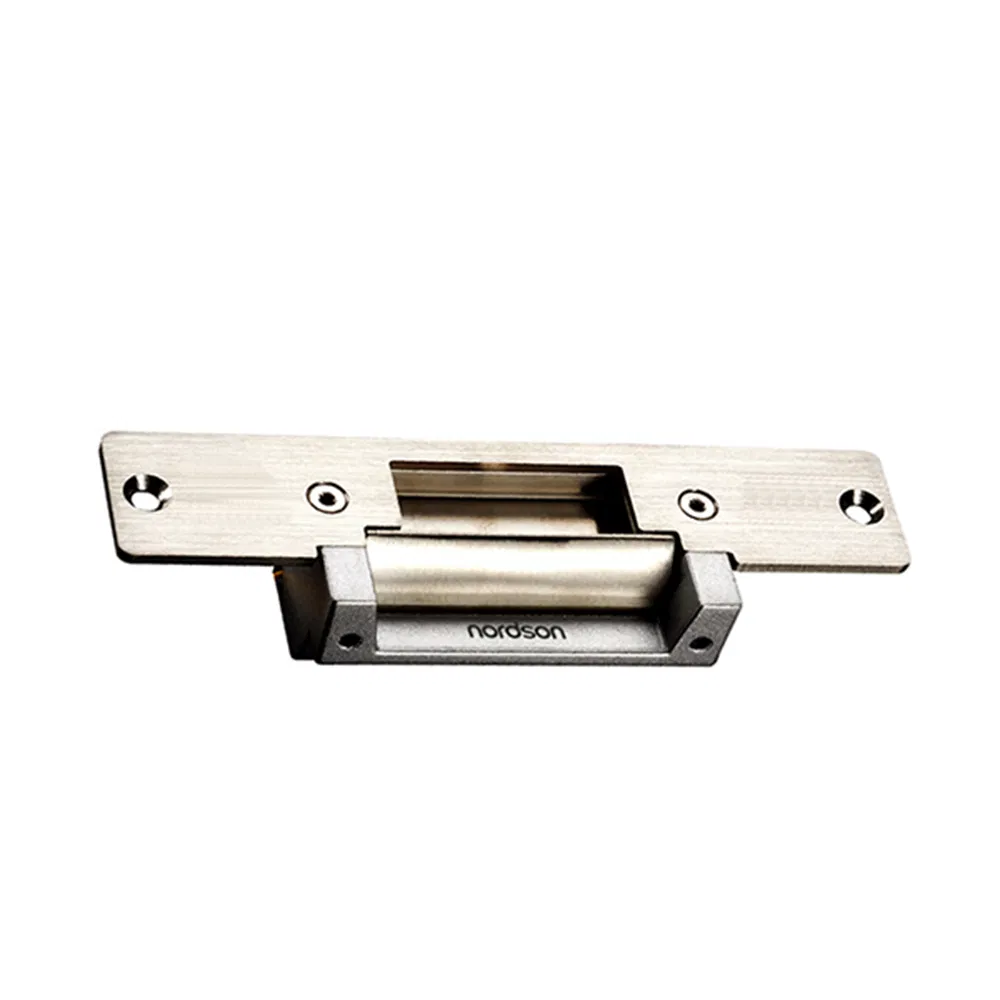

Fail-Secure Adjustable Glass Door Custom Vending Machine Locker Lock
✔

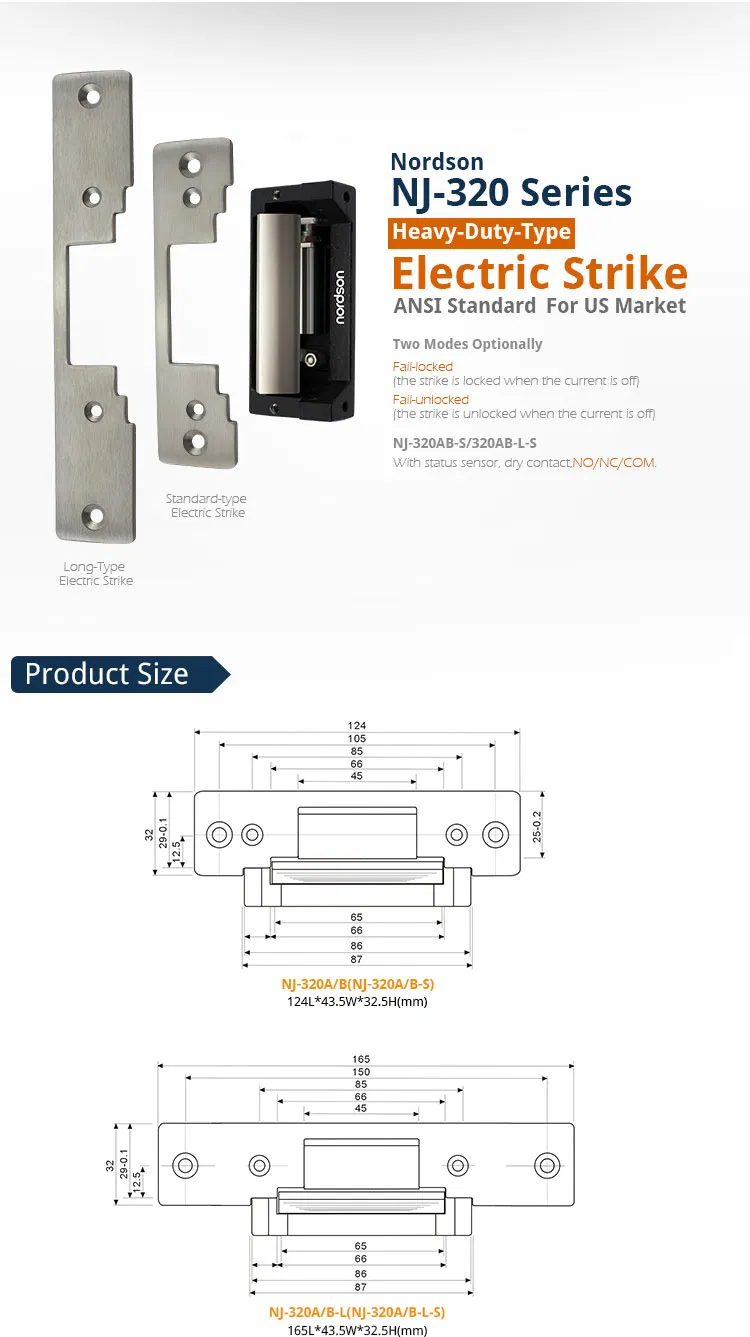

Model No: NJ-320A-XL / NJ-320B-S
✔
Type: Long Type European Electric Strike
✔
Operation: Fail-secure (Power to unlock) & Fail-safe (Power to lock) available
❓ Frequently Asked Questions
What is the holding strength of this electric strike?
This lock features a high-duty construction with a holding strength of up to 800kg, making it suitable for high-security applications.

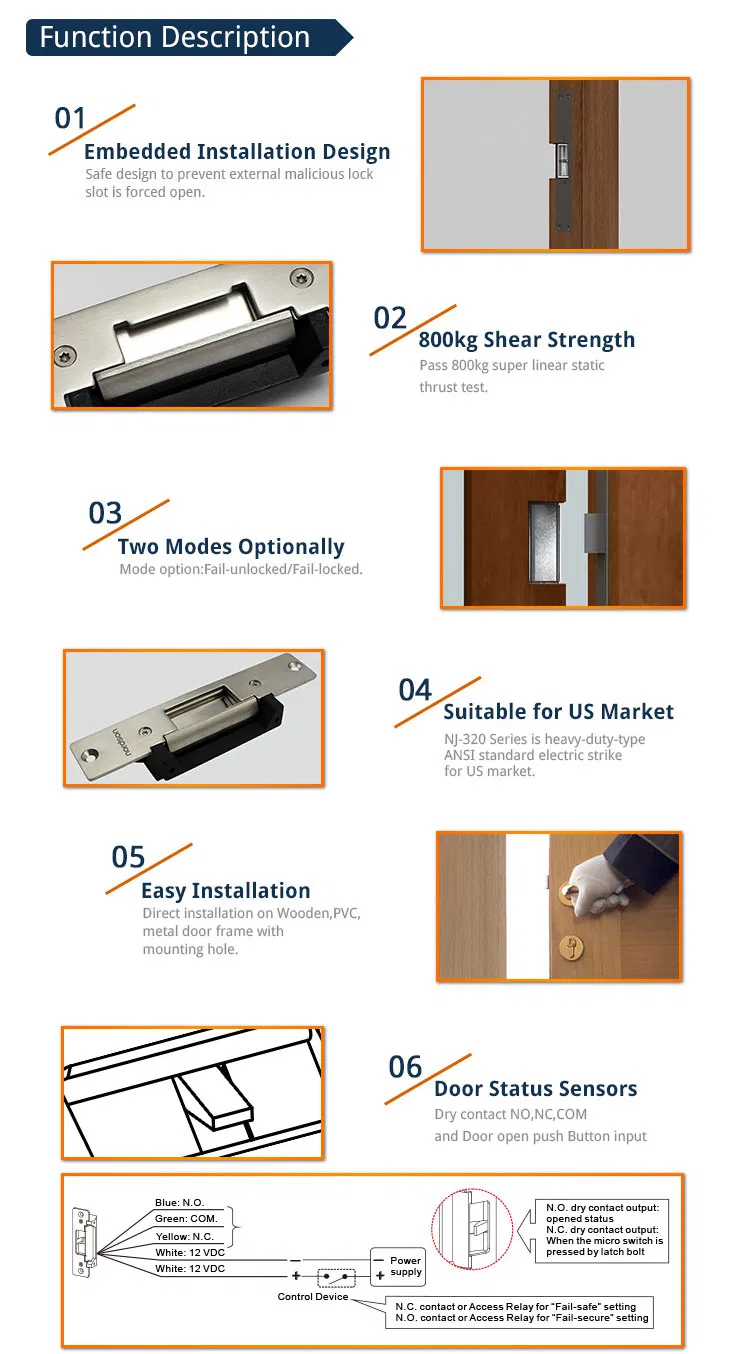

Does this lock support door status monitoring?
Yes, it includes signal output (NO/NC/COM) to monitor the door status, ensuring real-time security management.

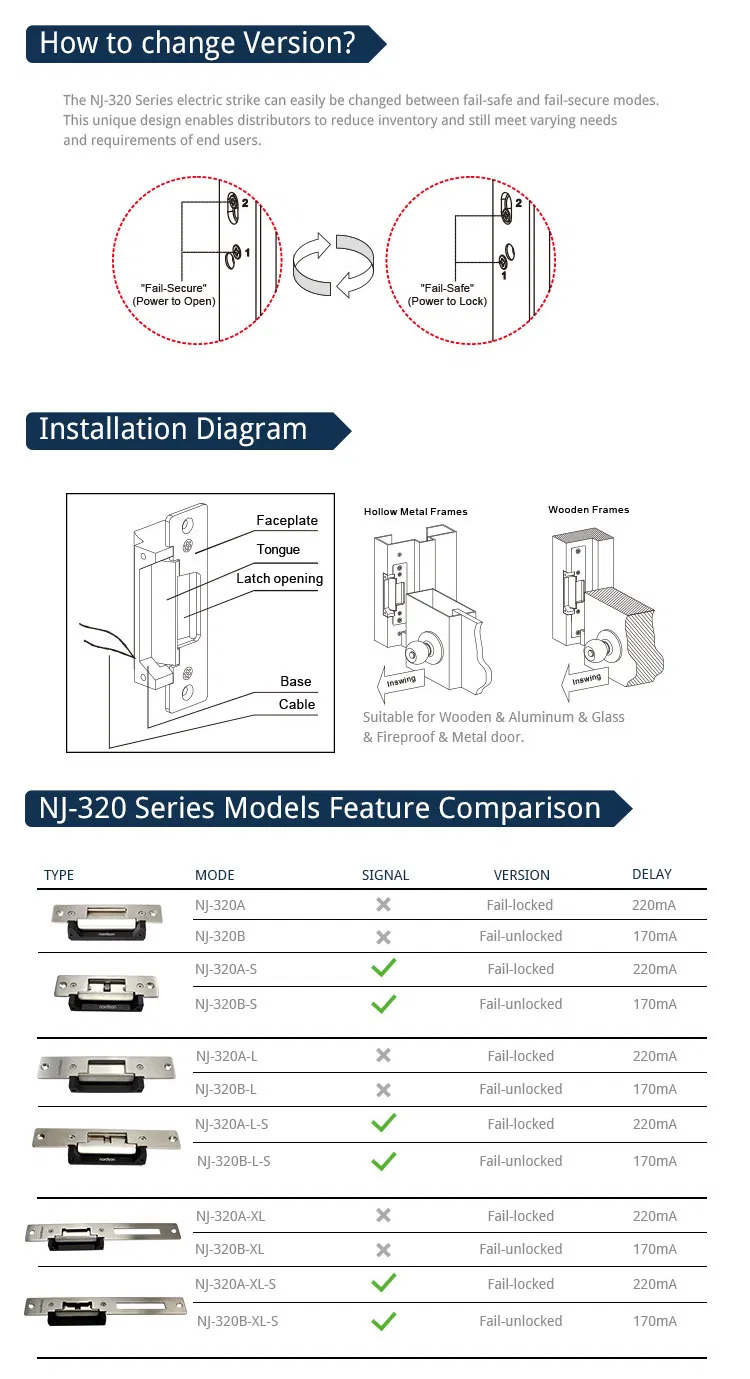

What is the difference between Fail-Safe and Fail-Secure models?
The NJ-320A is Fail-Secure (remains locked when power is lost), while the NJ-320B is Fail-Safe (unlocks when power is lost for safety).
Is it suitable for outdoor use?
It is designed for temperatures between -10°C and +55°C. It is ideal for public passages, campuses, and warehouses, but should be protected from direct heavy rain.
What types of doors can this lock be installed on?
This versatile electric strike is compatible with wooden doors, metal doors, PVC doors, and 90-degree swinging glass doors.

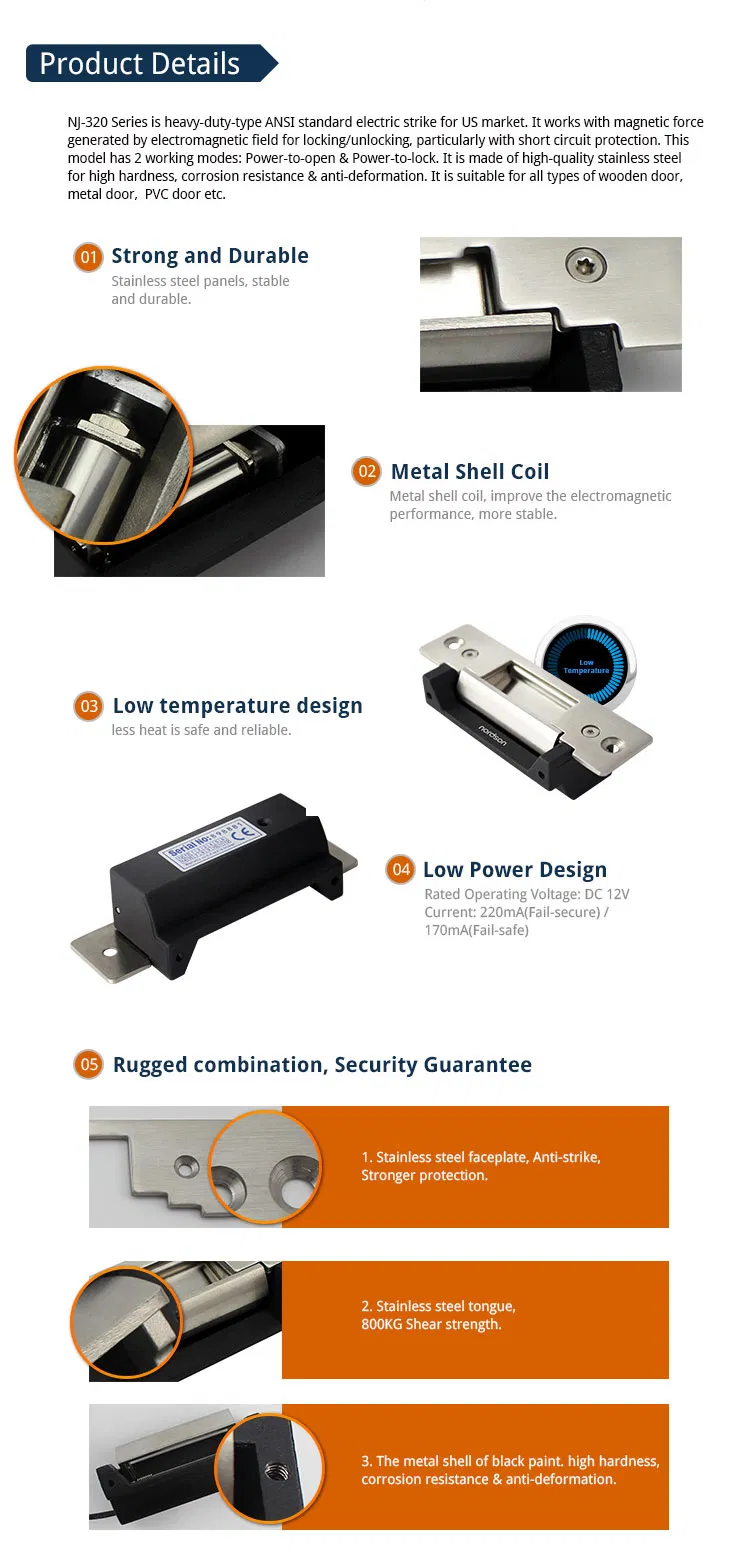

What is the operating voltage?
The lock operates on a standard DC 12V power supply with a low current consumption of approximately 170mA to 220mA.
