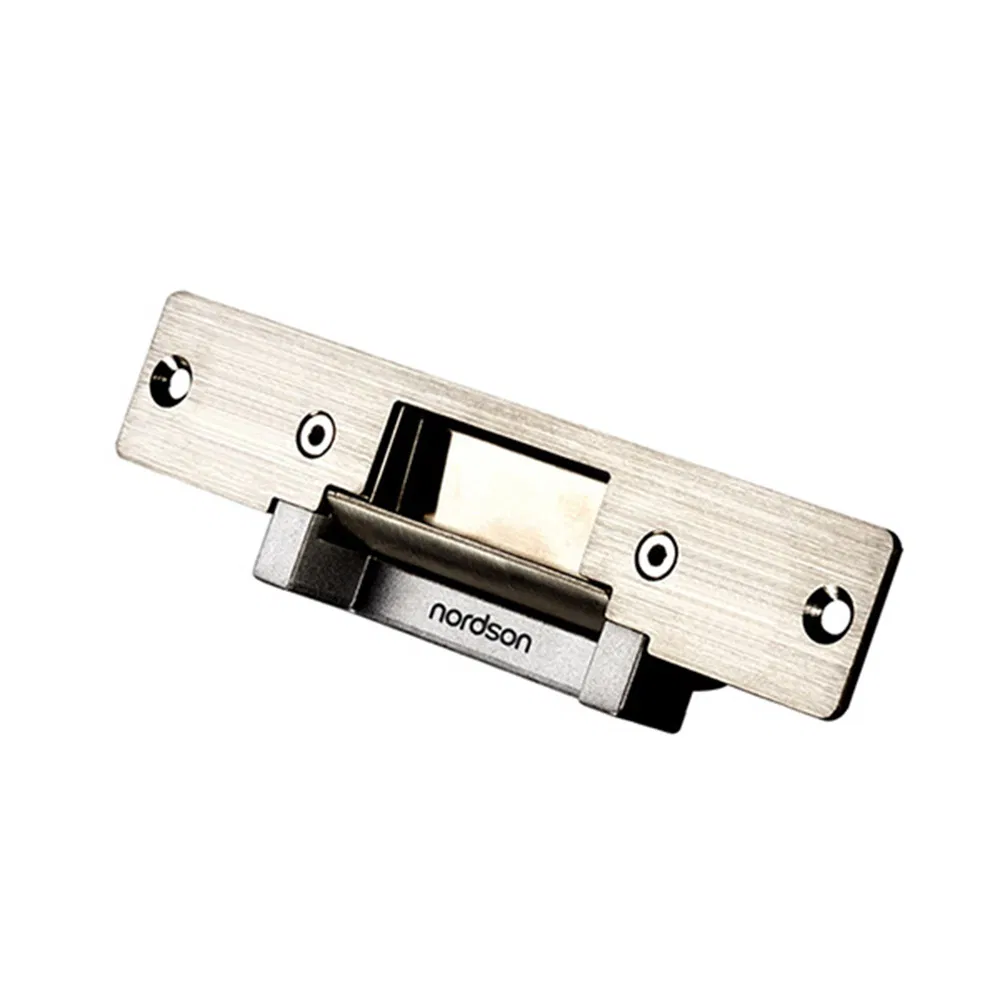

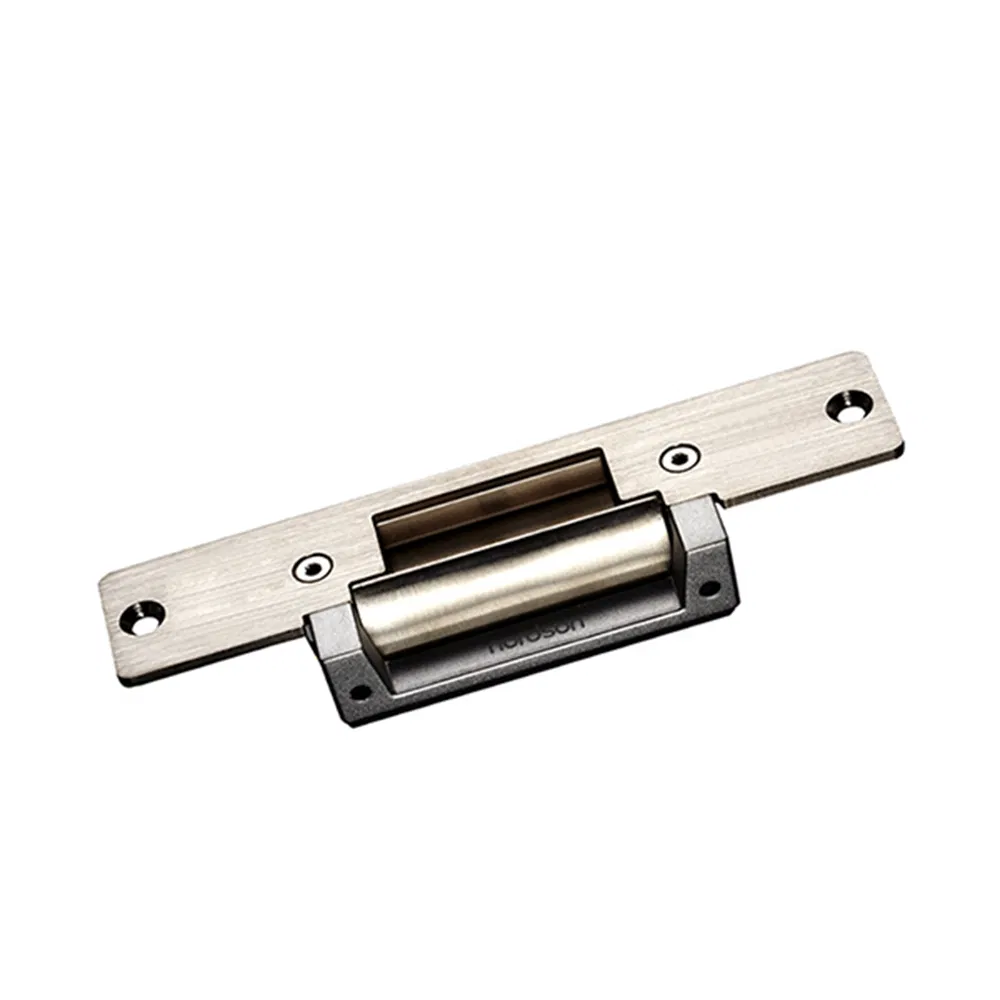

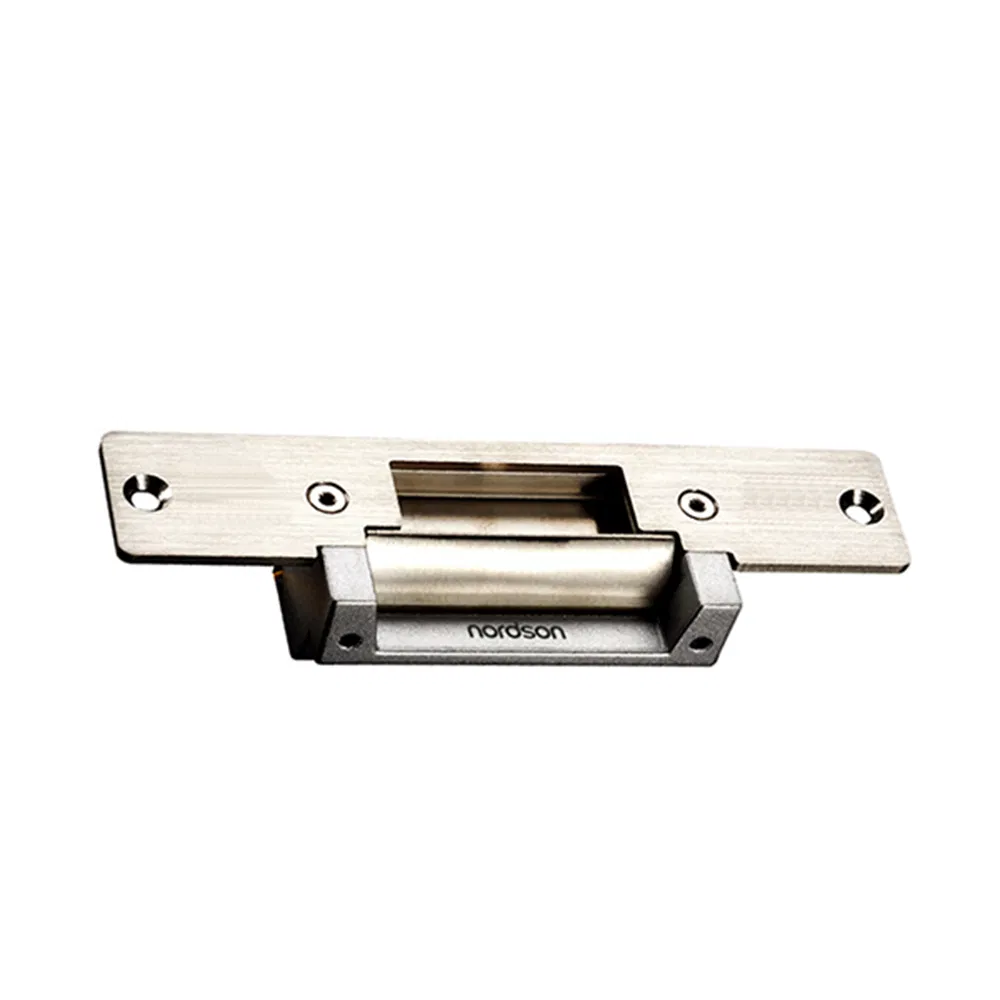

Fail-Secure Adjustable Glass Door Custom Electronic Lock
Fail-Secure Adjustable Glass Door Custom Electronic Lock
Fail-Secure Adjustable Glass Door Custom Electronic Lock
1 / 3
Fail-Secure Adjustable Glass Door Custom Electronic Lock
Fail-Secure Adjustable Glass Door Custom Electronic Lock
Fail-Secure Adjustable Glass Door Custom Electronic Lock

Fail-Secure Adjustable Glass Door Custom Electronic Lock

Customization: Available
Customized: Customized
Certification: RoHS, CCC
Send Inquiry

Product Description

Basic Specifications

Model NO.: NJ-300A Italian Machine Locker Electronic
Application: Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel
Working Principle: Electronically Controlled Lock
Function: Fail-Safe, Fail-Secure
Type: Electric Strike
Holding Strength: 800kg
Voltage: DC12V
Material: Stainless Steel Bolt, Painted Steel Housing
Weight: 0.6kg
Certification: CE, ROHS, SGS

Product Description

Fail-Secure Adjustable Glass Door Custom Electronic Vending Italian Machine Locker Electronic
  • Model No.: NJ-320A-XL / NJ-320B-S
  • Product Type: Long Type European Electric Strike
  • NJ-320B-S: Fail-safe type (Power to lock)
  • NJ-320A-XL: Fail-secure type (Power to unlock)
Lock Size 250Lx32Wx33H(mm)
Holding Strength 800kg
Bolt Structure Stainless Steel
Voltage 12VDC
Current 170mA(NJ-320A) / 220mA(NJ-320B)
Signal Output Door status Output, NO/NC/COM
Suitable For Wooden Door, Metal Door, PVC Door
Opening Mode 90 Degree Swinging Door

Product Gallery

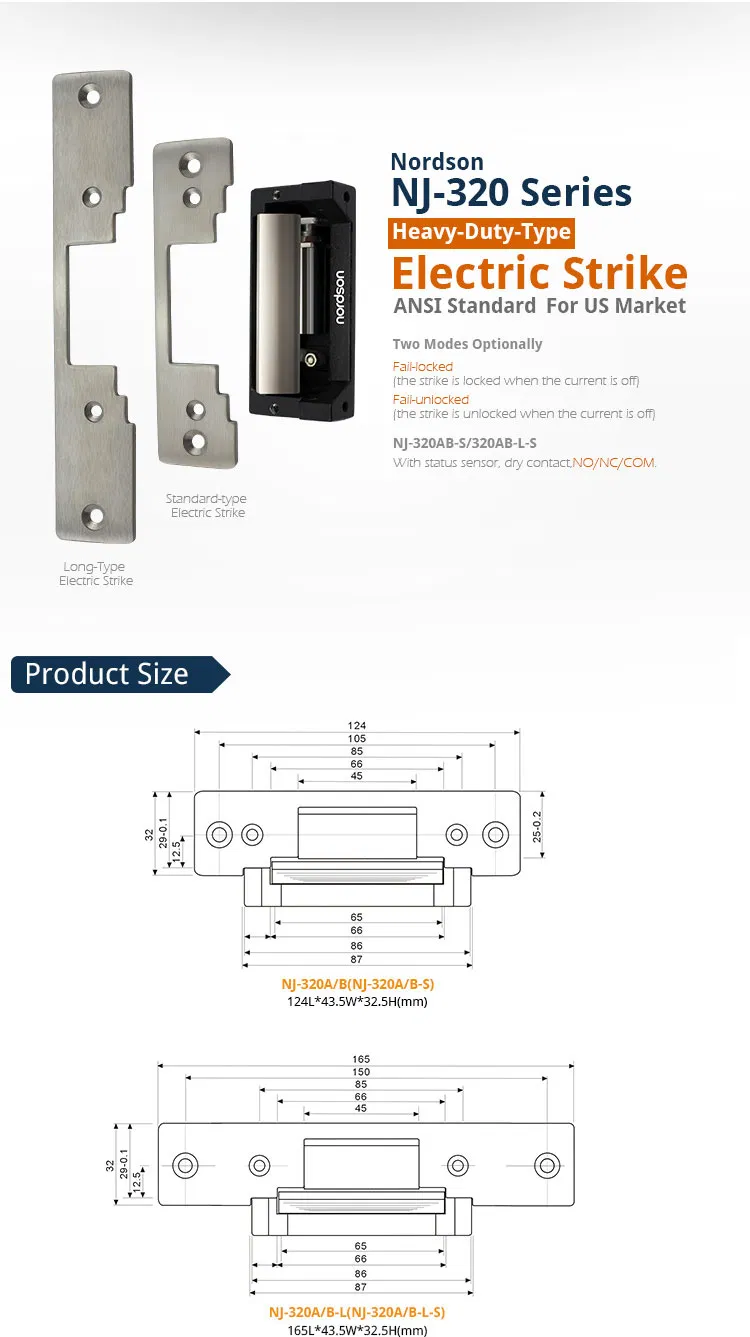

Electronic Lock Detail 1

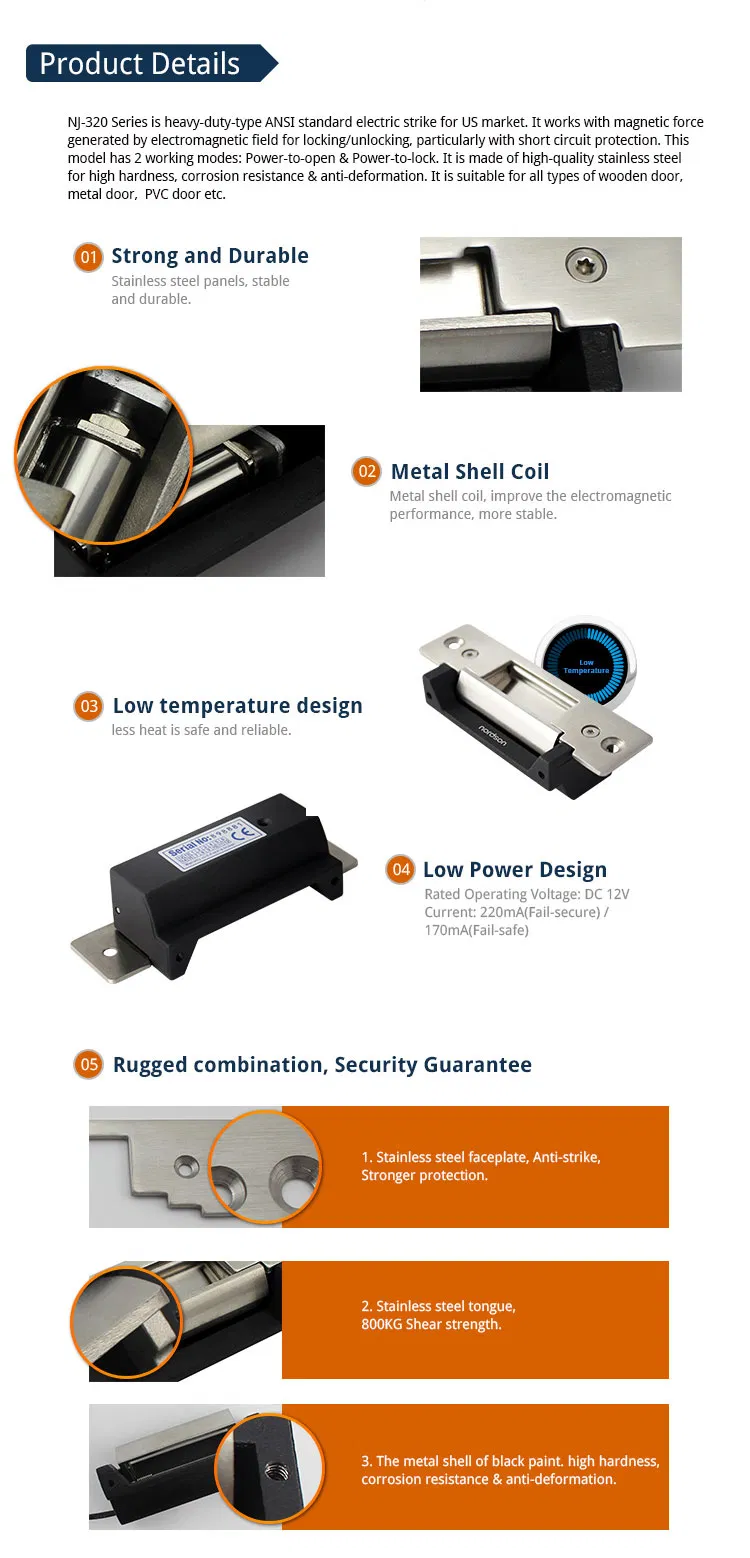

Electronic Lock Detail 2

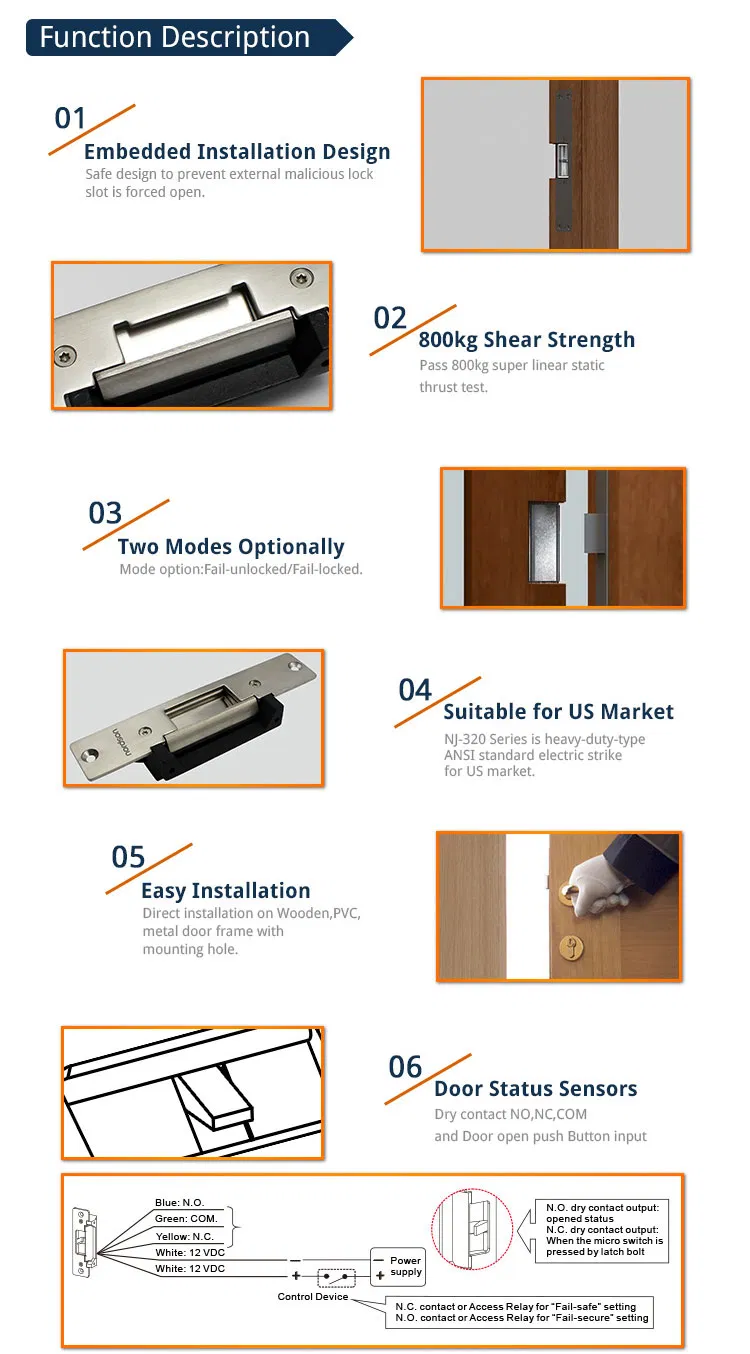

Electronic Lock Detail 3

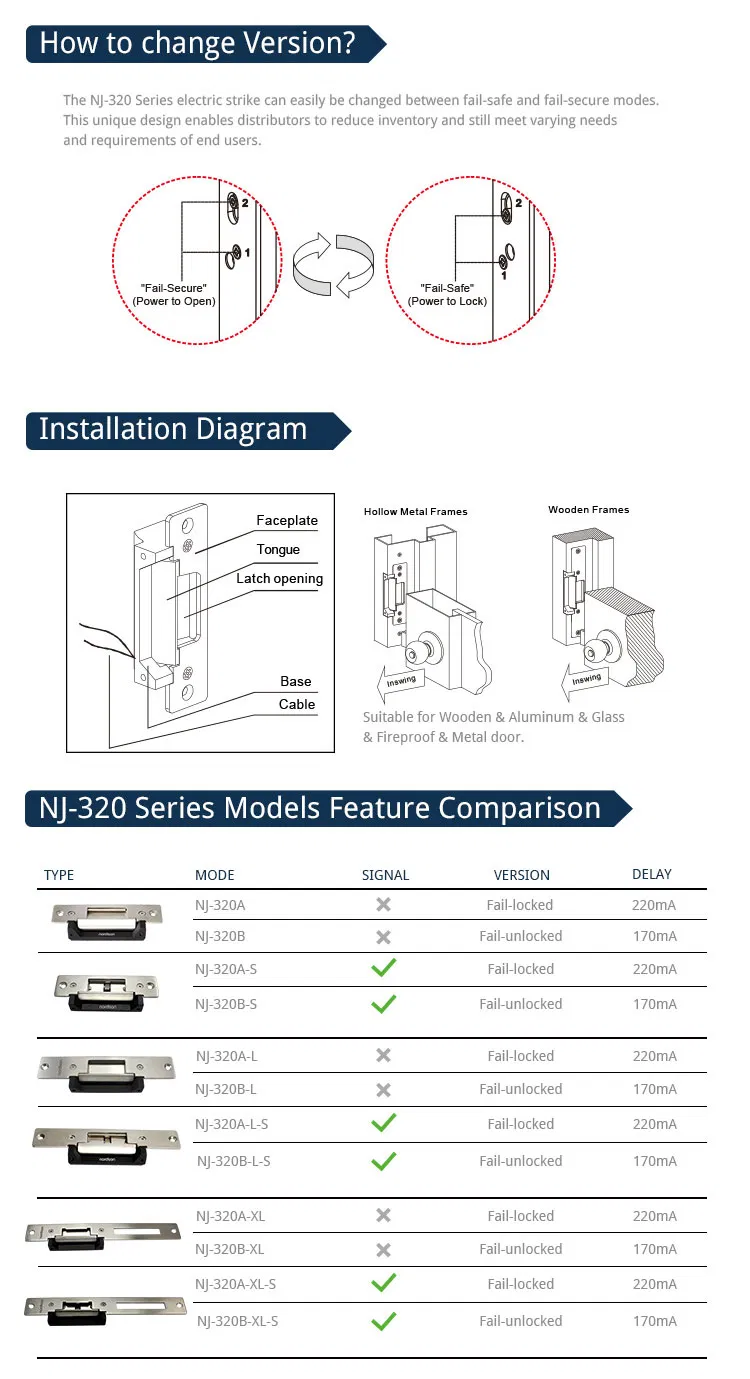

Electronic Lock Detail 4
Electronic Lock Detail 5
Electronic Lock Detail 6

Frequently Asked Questions

What is the difference between Fail-Safe and Fail-Secure?
Fail-Safe (NJ-320B) means the door unlocks when power is lost. Fail-Secure (NJ-320A) means the door remains locked when power is lost and requires power to unlock.
What is the maximum holding strength of this strike lock?
This electronic strike lock provides a high holding strength of up to 800kg, making it suitable for high-security applications.
Does this lock provide feedback on the door status?
Yes, the lock includes a signal output (NO/NC/COM) to monitor whether the door is currently open or closed.
What types of doors can this be installed on?
It is versatile and suitable for wooden doors, metal doors, and PVC doors with a 90-degree swinging opening mode.
What voltage is required for operation?
The device operates on a standard 12VDC power supply with low current consumption (170mA to 220mA).
Is the lock bolt durable?
Yes, the bolt structure is made of high-quality stainless steel, ensuring long-term durability and resistance to wear.
