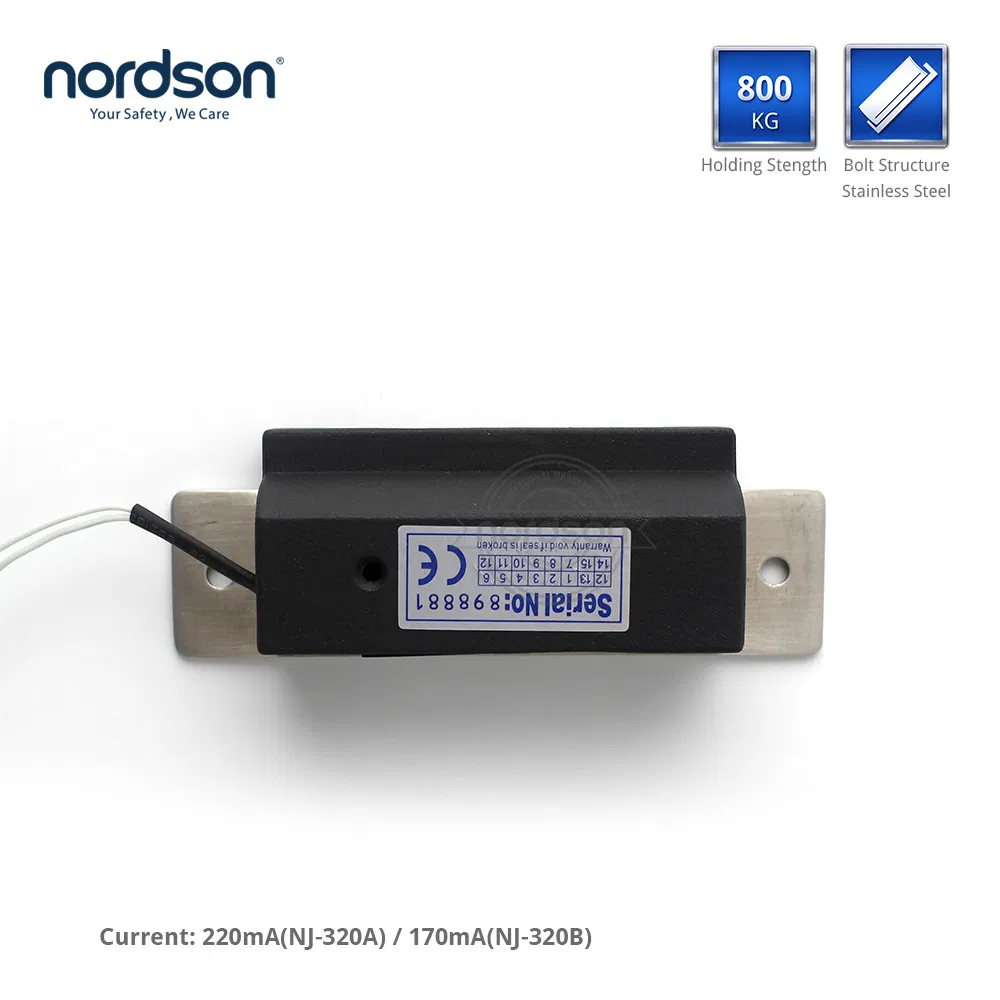

| Model NO. | NJ-320B-L stainless steel door lock |
| Lock Size | 165L*43.5W*32.5h(Mm) |
| Holding Strength | 800kg |

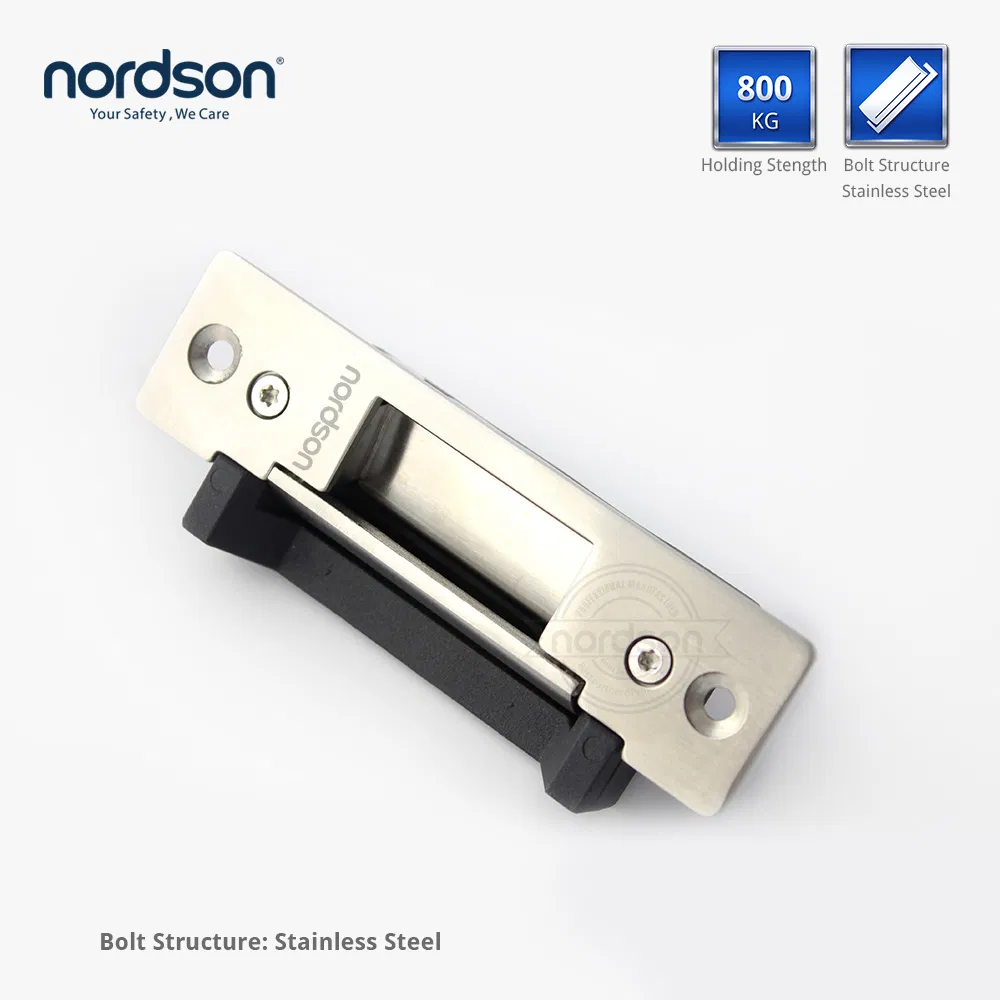

| Bolt Structure | Stainless Steel |
| Voltage | 12VDC |
| Weight | 0.6kg |
| Current | 220mA |
| Packing | Neutral Packing |
| Specification | CE, ROHS GSG, GMP |
| HS Code | 123456 |
| Capacity | 20000 units |

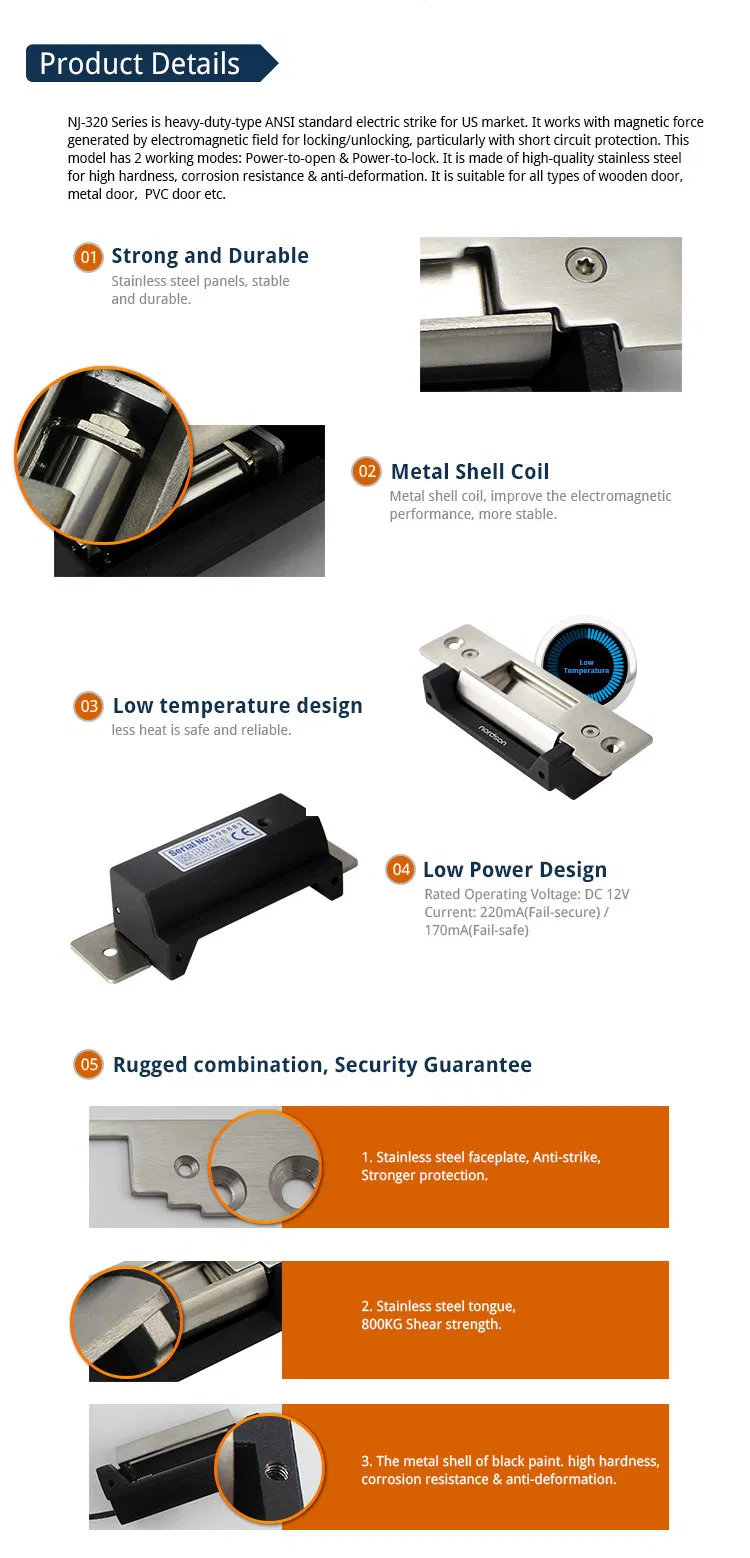

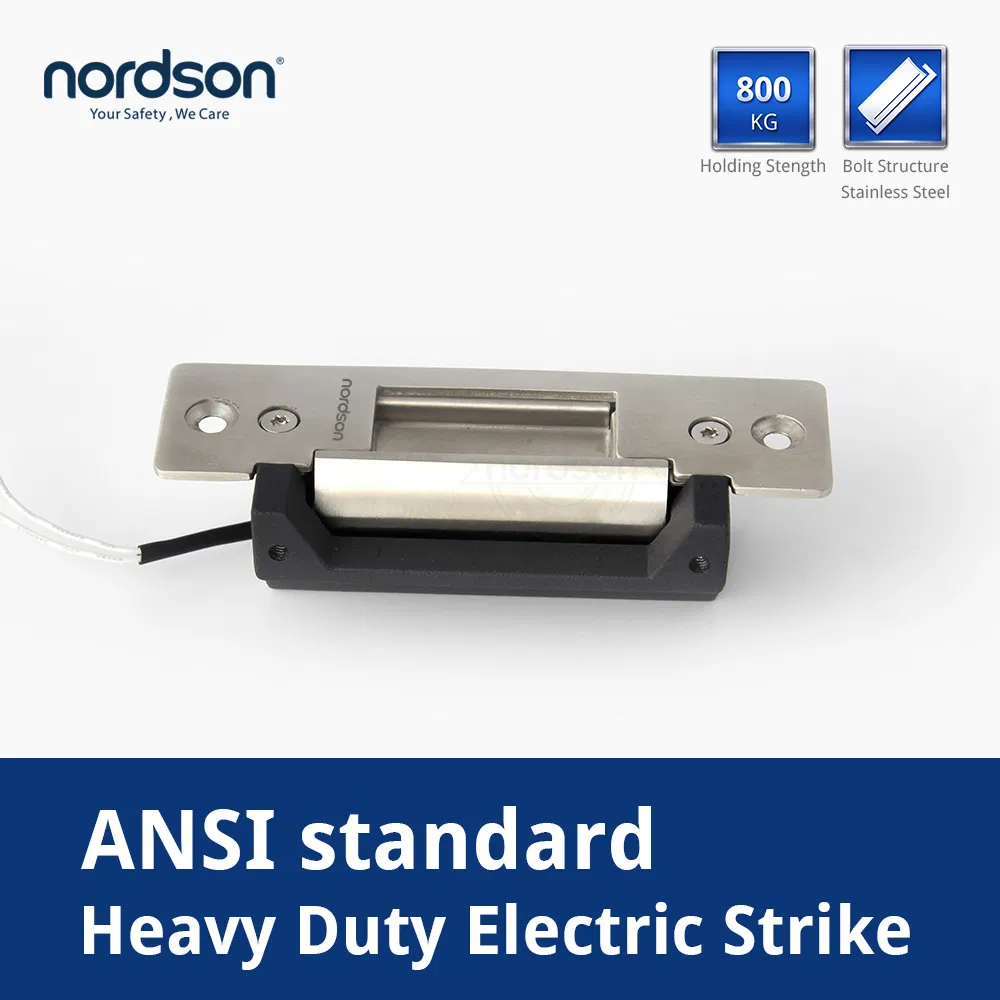

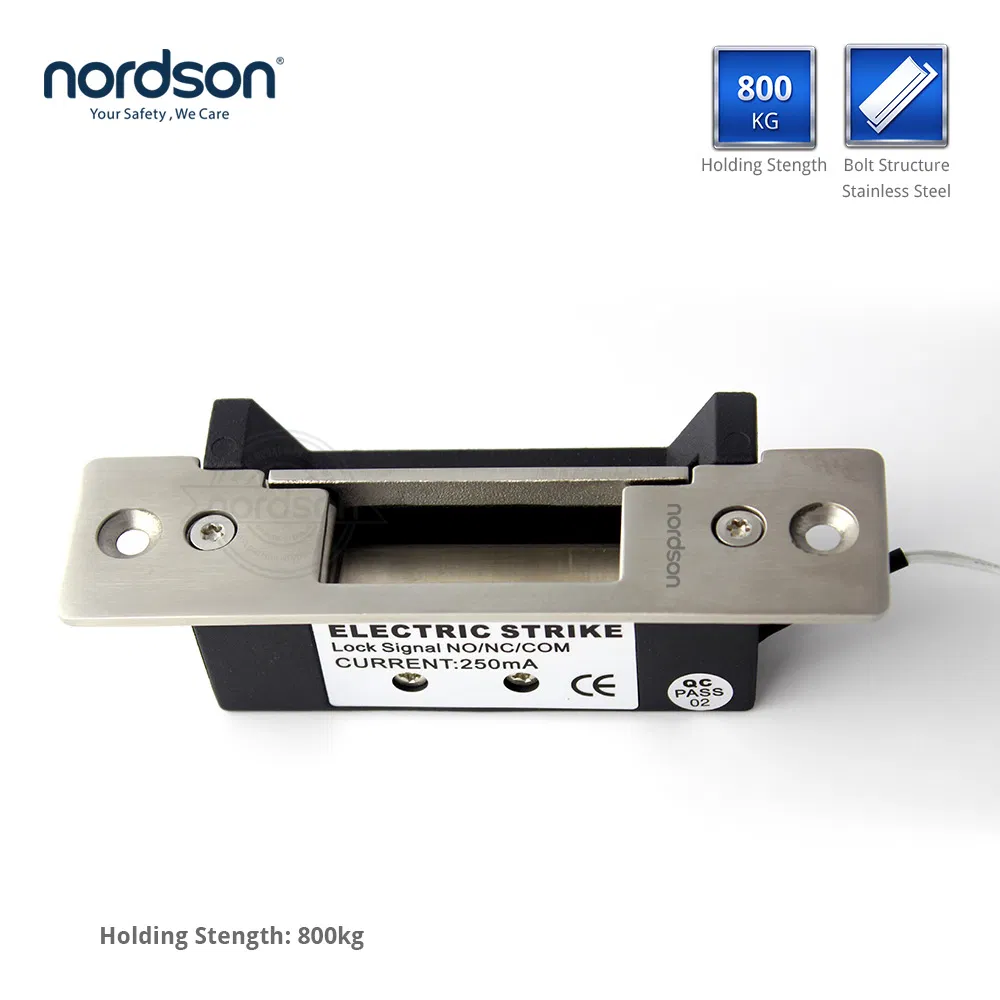

Overview: NJ-320A is a heavy-duty ANSI standard electric strike specifically designed for the market. It operates using magnetic force generated by an electromagnetic field for efficient locking and unlocking. The device is equipped with short circuit protection for enhanced safety.

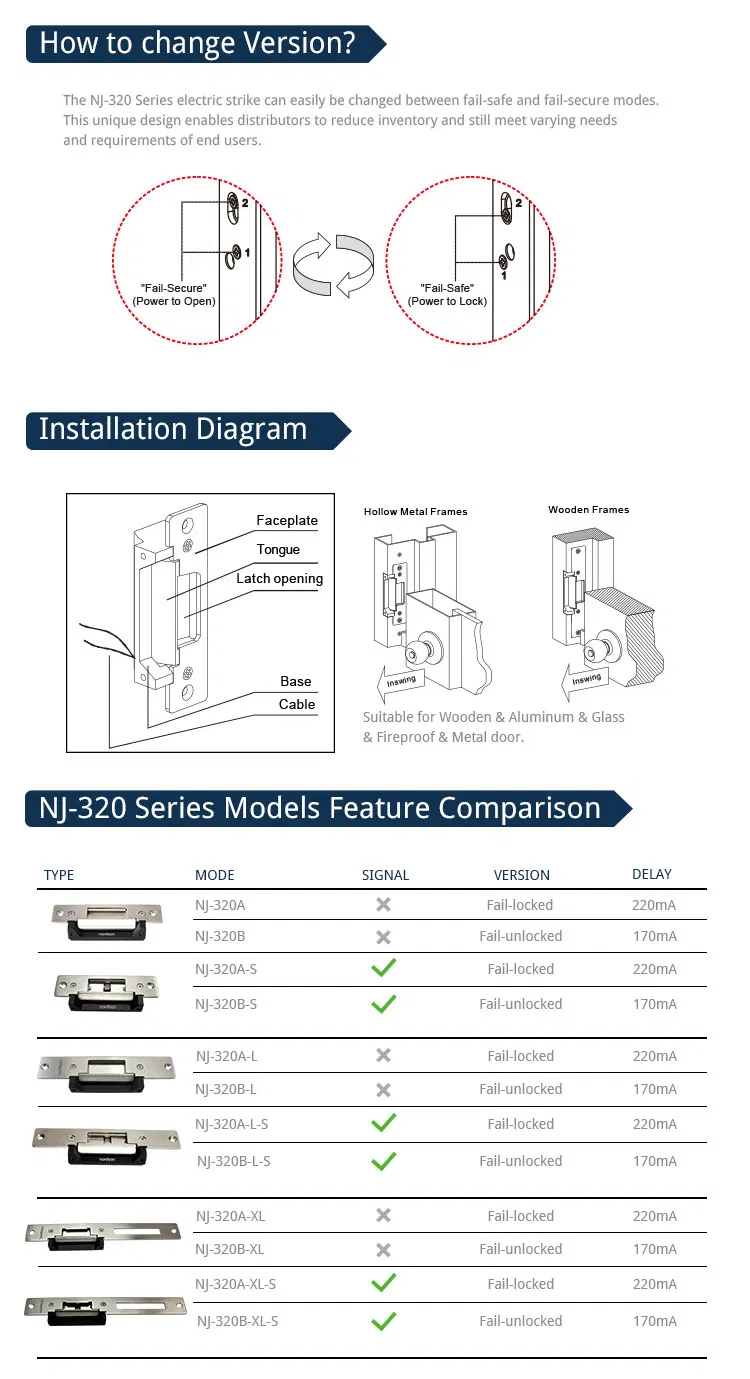

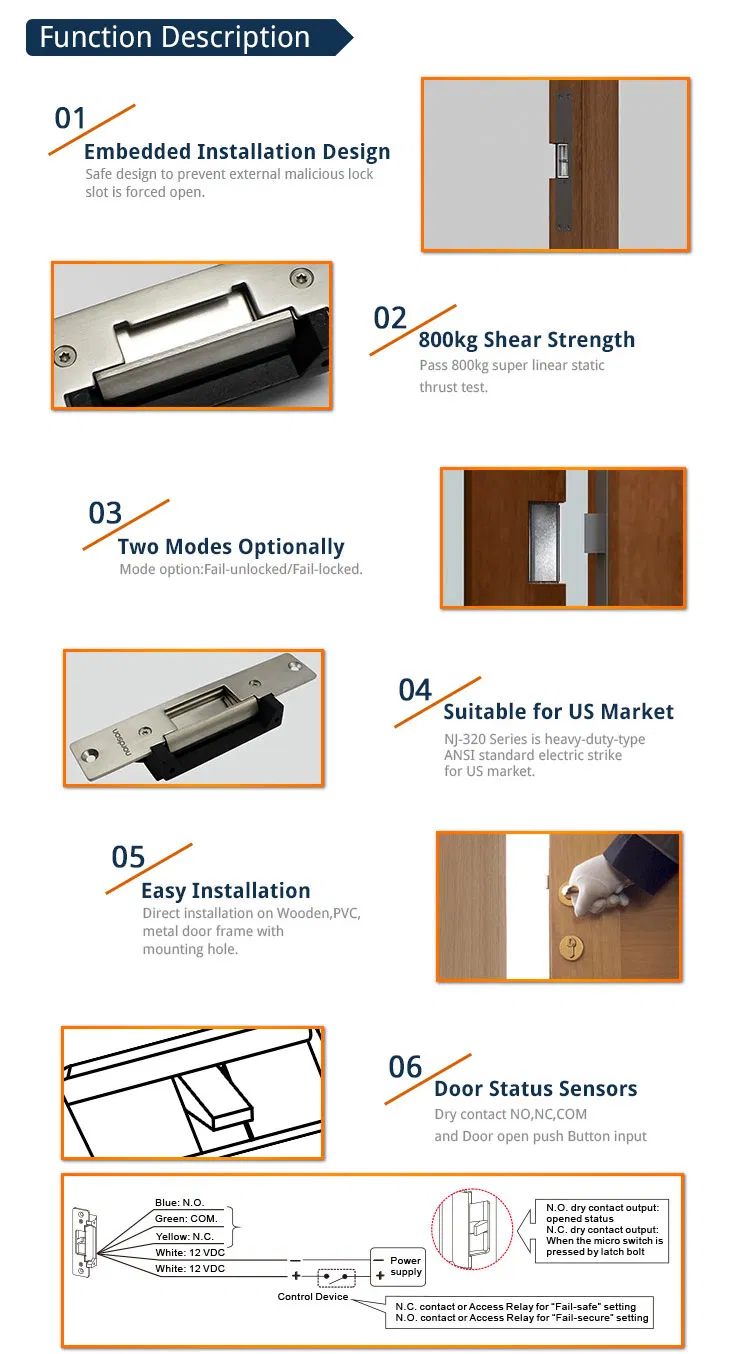

This model features two versatile working modes: Power-to-open (Fail-Secure) and Power-to-lock (Fail-Safe). Constructed from high-quality stainless steel, it offers exceptional hardness, corrosion resistance, and anti-deformation properties. It is ideal for various door types including wooden doors, metal doors, and PVC doors.

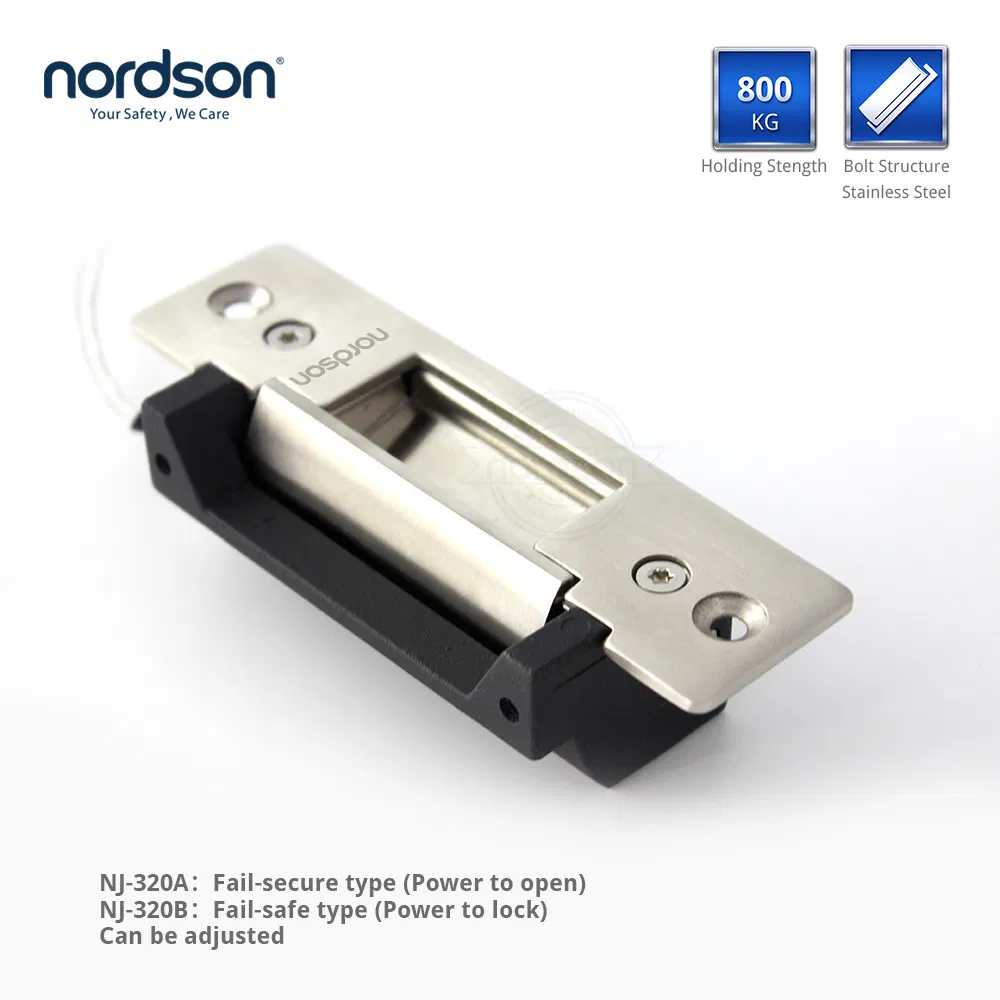

| Version Options | NJ-320A: Fail-locked (Locked when power is off) NJ-320B: Fail-unlocked (Unlocked when power is off) |
| Shear Strength | 1600Lbs (800kg) |
| Rated Voltage | DC 12V |
| Standby Current | 220mA |
| Face Plate | Stainless Steel |
| Operating Temp | -10°C to +55°C |
| Compatibility | Wooden, Aluminum, Glass, Fireproof & Metal doors |

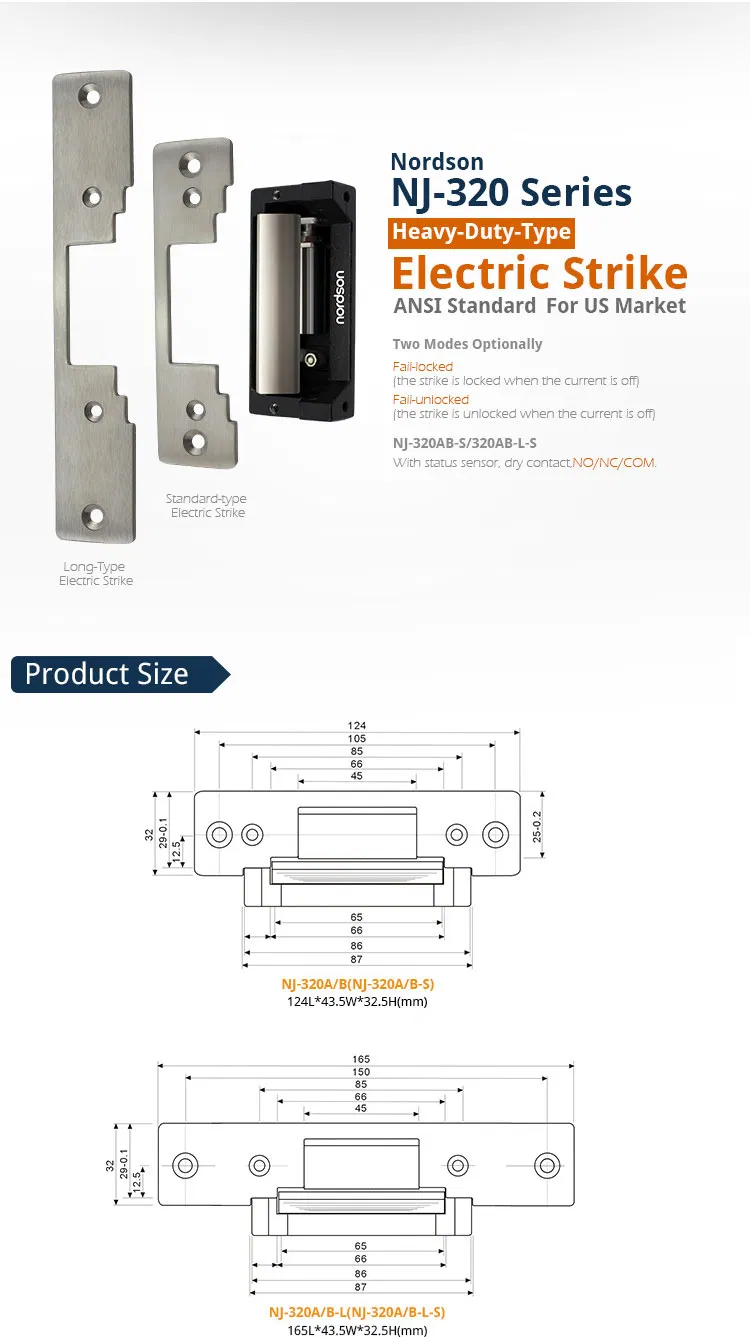

| Dimensions | 124L x 32W x 36H (mm) |
| Compliance | CE-mark, RoHS |
