Fail-locked long type wide mouth electric door strike 12v

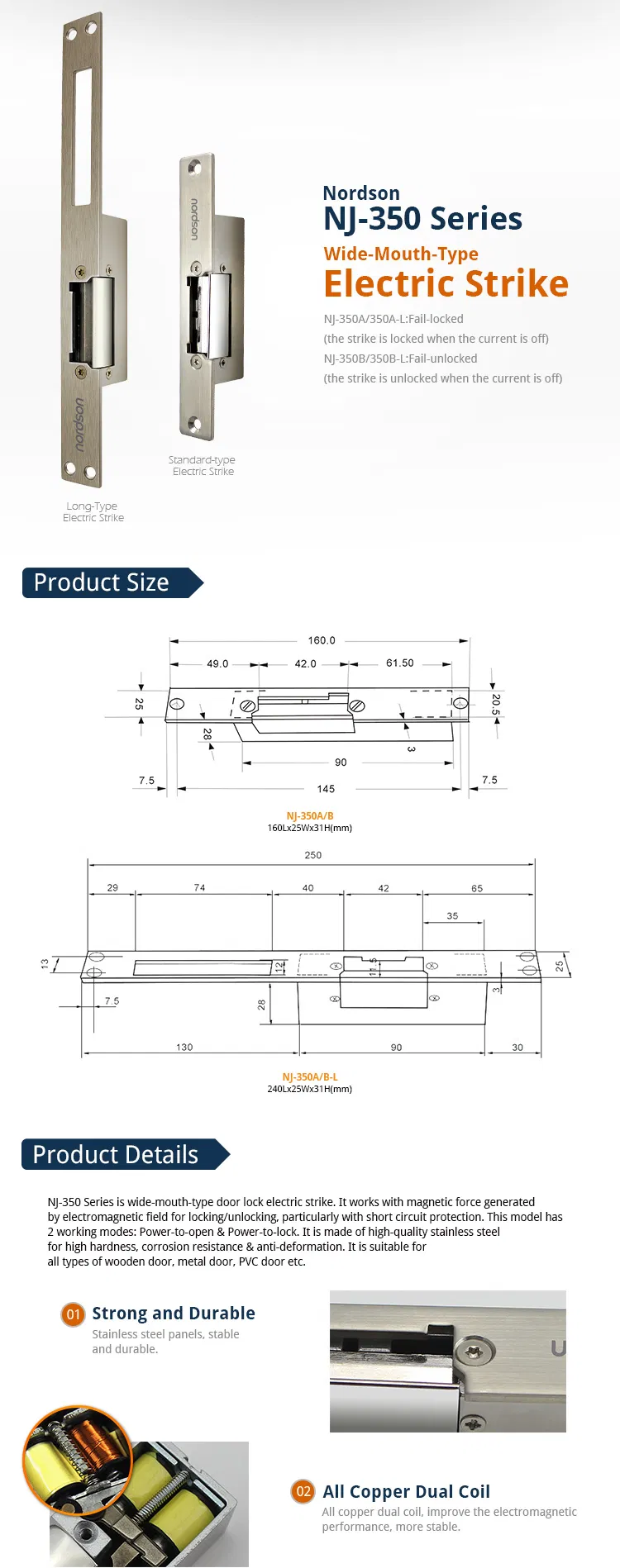

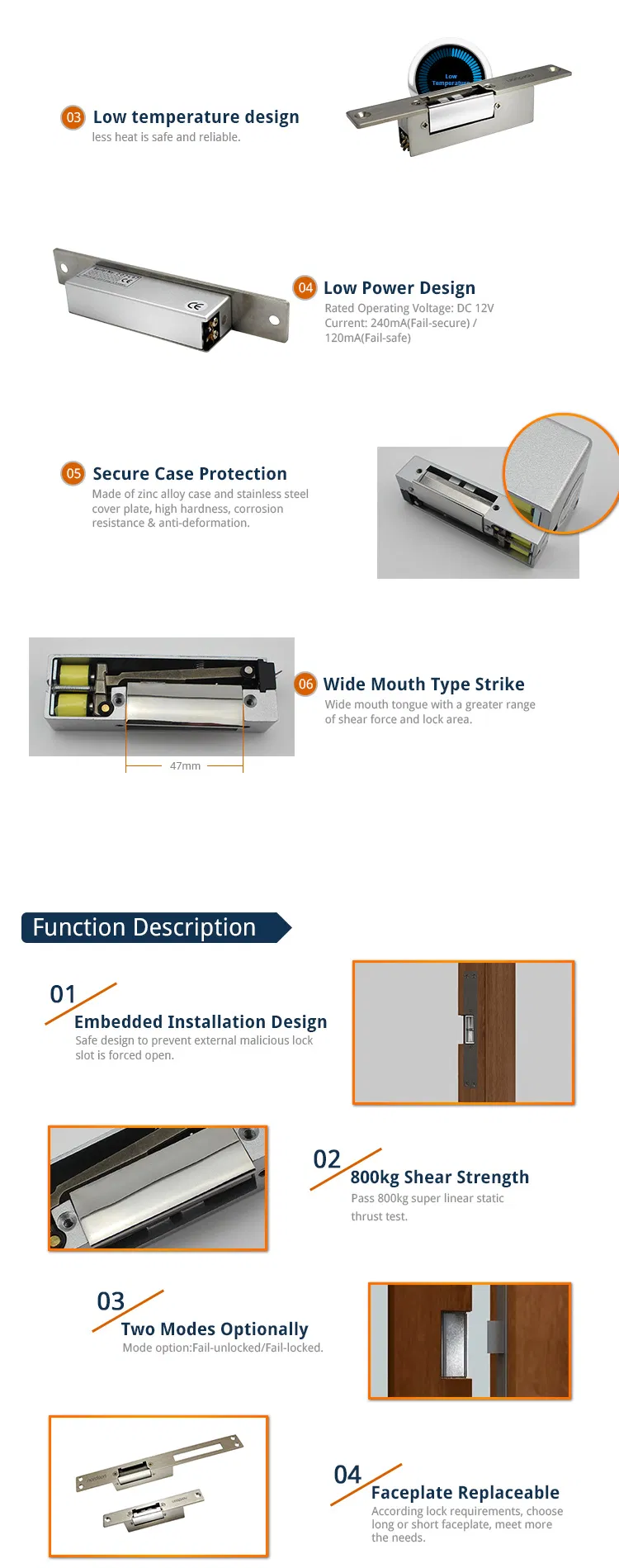

The NJ-350A-L is a wide-mouth-type long electronic strike lock. It works with magnetic force generated by an electromagnetic field for locking/unlocking, featuring short circuit protection. This model offers 2 working modes: Power-to-open & Power-to-lock. Constructed from high-quality aluminum, it provides high hardness, corrosion resistance, and anti-deformation properties. It is suitable for all types of wooden doors, metal doors, PVC doors, etc.
| Parameter | Details |
|---|---|
| Model NO. | NJ-350A-L |
| Version | NJ-350A-L: Fail-locked | NJ-350B-L: Fail-unlocked |
| Shear Strength | 500kg (1200lbs) |
| Rated Operating Voltage | DC 12V |
| Standby Current | 200mA |
| Face Plate Material | High Aluminum |
| Surface Temp | Low Temperature |
| Operating Ambient Temp | -10°C - +55°C |

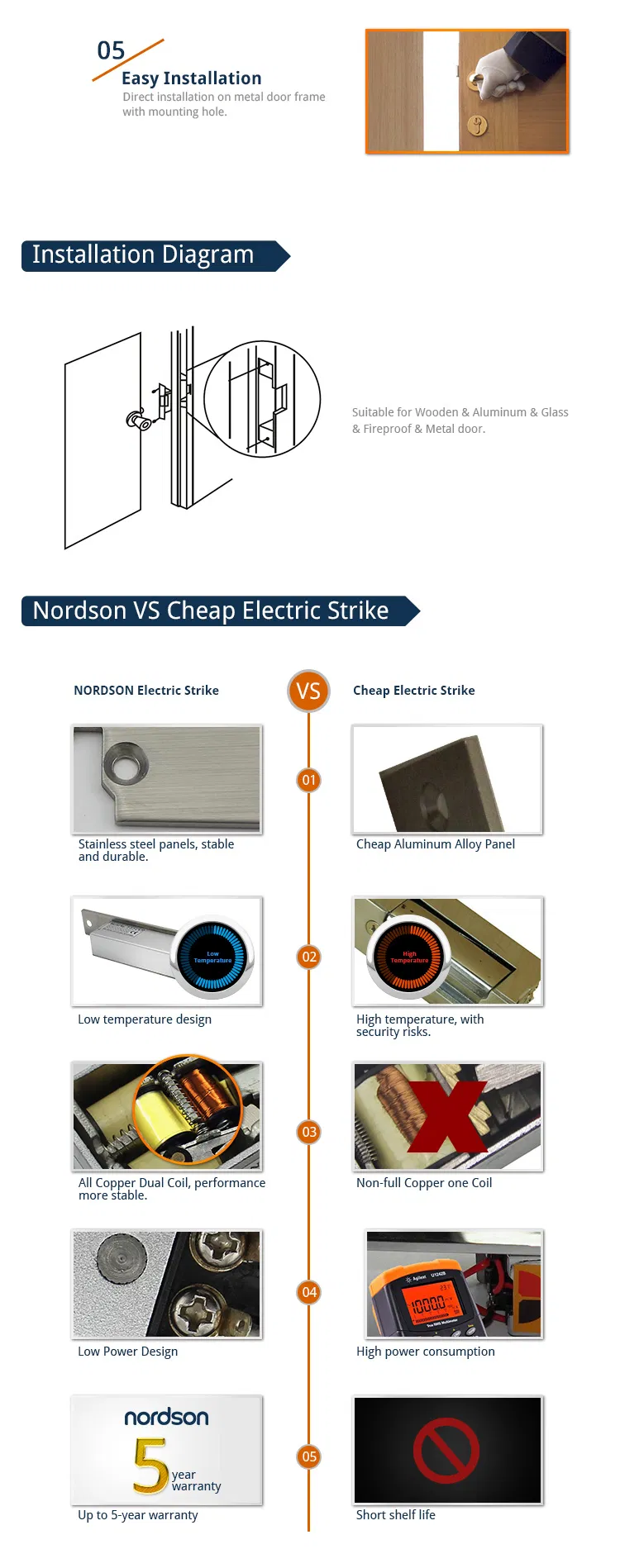

| Suitable For | Wooden, Aluminum, Glass, Fireproof & Metal Doors |
| Strike Plate Dimensions | 240L x 28W x 31H (mm) |
| Weight | 0.5kg |
| Certifications | RoHS, CCC, CE, MA |
