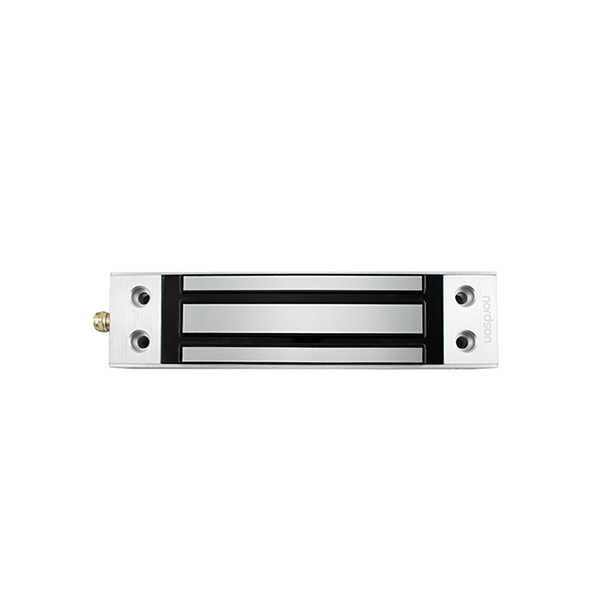

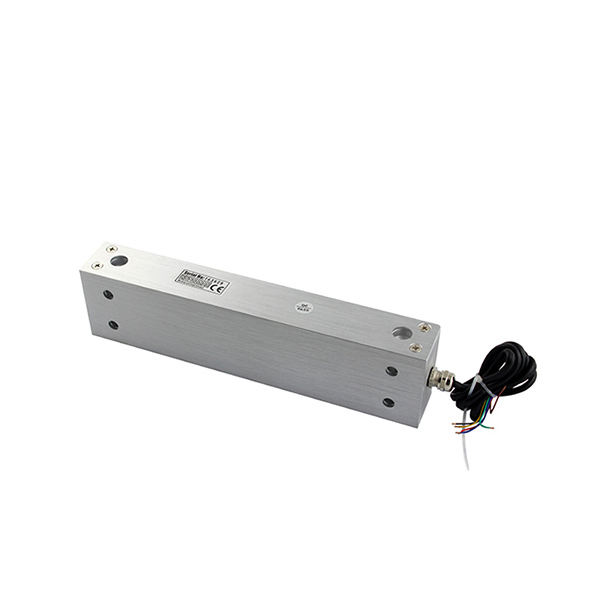

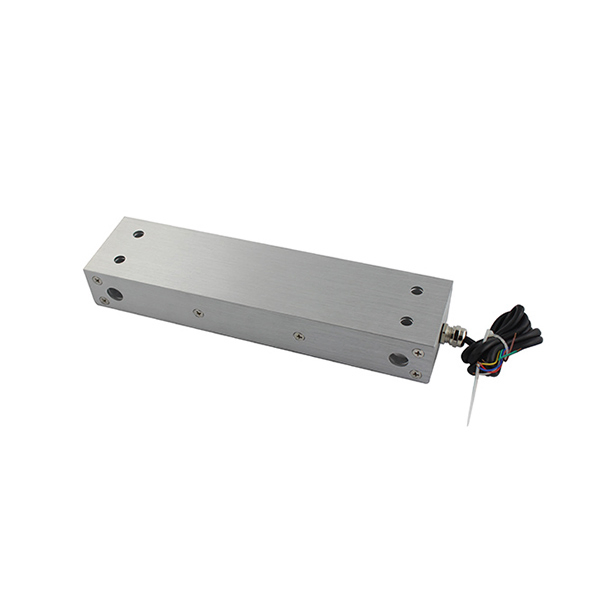

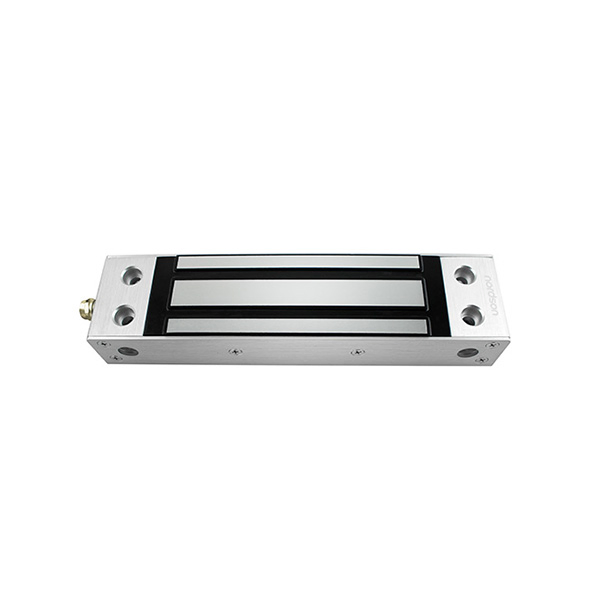

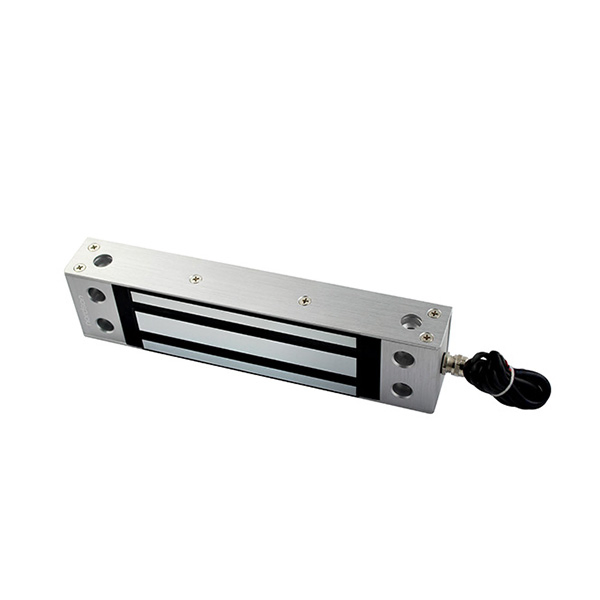

DC12V Waterproof IP68 Outdoor 600kg (1200Lbs) Glass Door Electromagnetic Electro Magnetic Door Lock

Still deciding? Get samples of $ !
Request Sample

Product Description

!

Basic Specifications

Model NO.
NE-600W door lock
Type
Electromagnetic Lock
Voltage
DC12V or DC24V
Holding Force
600kg (1200lbs)
Waterproof Grade
IP65
Operation Mode
Fail-Safe (Power to Lock)
Working Principle
Electronically Controlled Magnetic
Lock Size
266L*67W*39H (mm)
Armature Plate
185L*57W*13H (mm)
Weight
4.5kg - 4.7kg
Lock Status Sensors
Dry Contact No, Nc, COM
Certifications
CE, RoHS

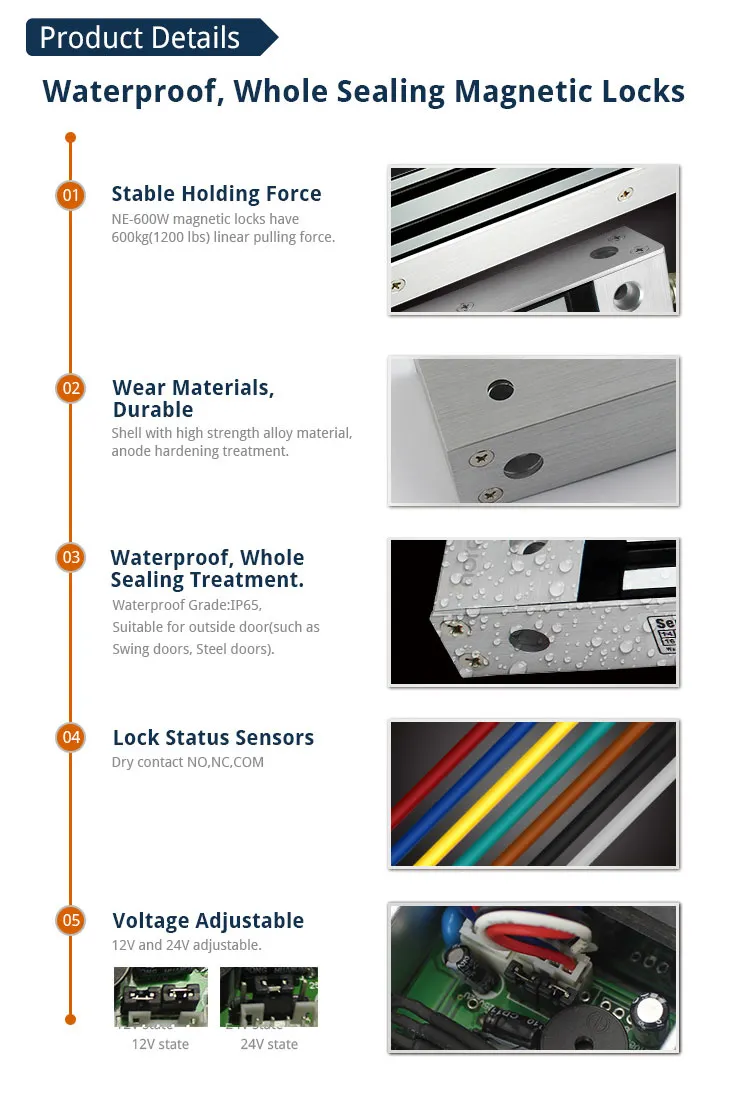

Product Description

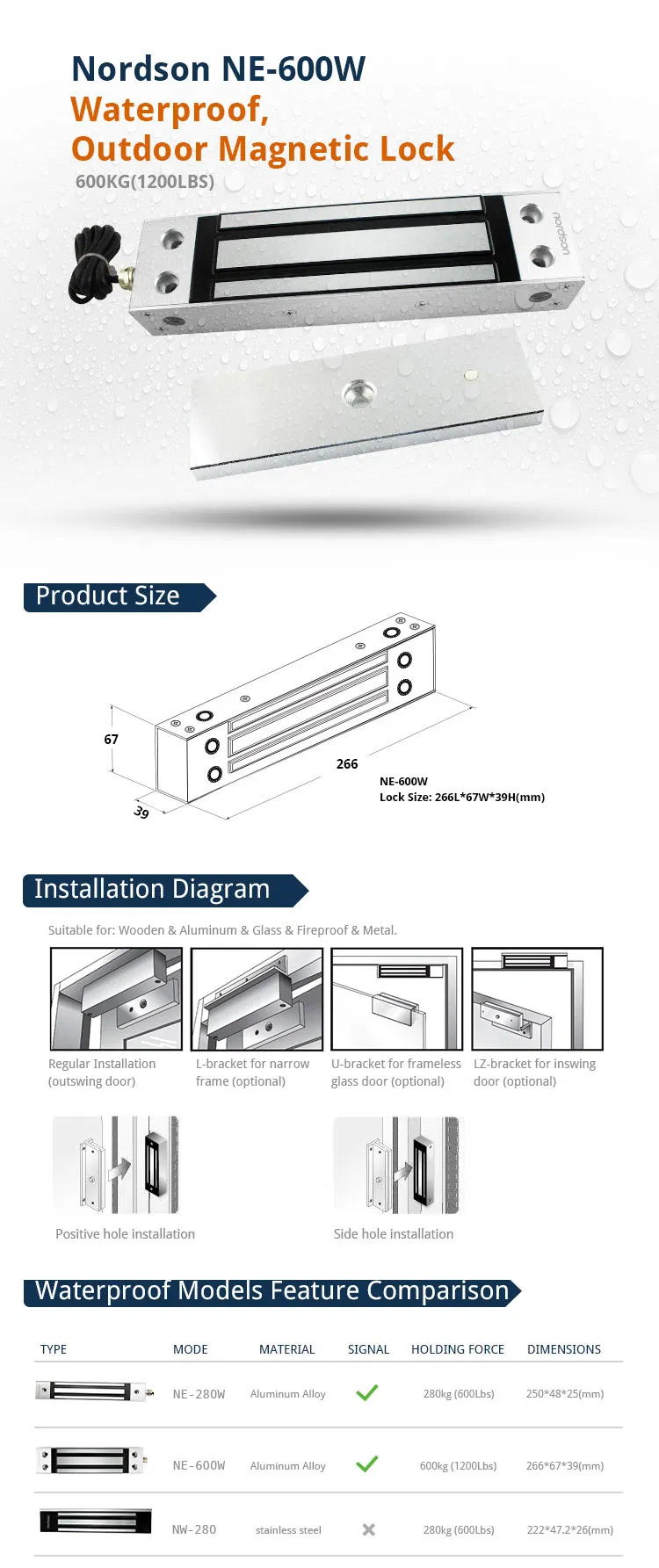

12V Waterproof Outdoor Gate Lock (NE-600W)

Designed for public passages, enterprises, supermarkets, campuses, and hospitals. This heavy-duty electromagnetic lock is engineered for reliability in outdoor environments.

Voltage: DC12V or DC24V
Waterproof: IP65 Professional Grade
Holding Force: 600kg (1200Lbs)
Current Draw: 12V/500mA; 24V/250mA
Safety: No residual magnetism, no mechanical damage, 90-degree open
Special Features: Built-in Buzzer, Customization Available
i

Service & Shipping

Packaging: Neutral Packing for all shipments.

Shipping Time: Small quantities are dispatched within 1-5 working days. Large orders are processed within 14 working days after payment receipt.

Warranty Policy: We provide a three-year warranty for electromagnetic locks, covering non-human factor quality issues. Maintenance services are available for products damaged under other conditions with applicable material fees.

?

Frequently Asked Questions

What is the holding force of the NE-600W?
The lock provides a powerful holding force of 600kg (1200lbs), making it ideal for high-security gates and doors.
Is this lock suitable for outdoor use?
Yes, the NE-600W is IP65 waterproof rated, specifically designed to withstand outdoor conditions and moisture.
What does "Fail-Safe" mean for this lock?
Fail-Safe means the lock requires power to stay locked (Power to Lock). In the event of a power failure, the lock will automatically release for safety.
Does the lock support different voltages?
Yes, it features dual-voltage capability, supporting both DC12V and DC24V inputs.
What is the warranty coverage for this product?
The electromagnetic lock comes with a comprehensive 3-year warranty for quality-related issues not caused by human factors.
