Product Description

Basic Specifications

Model NO.

NJ-360A electric strike lock

Style

Modern

Shape

Strike Lock

Anti-theft Standard

Shear Strength

1600lbs(800kg)

Operating Voltage

DC 12V

Face Plate Material

High Zinc Alloy

Weight

0.6kg

Production Capacity

50000 Piece/Month

Product Description

All Copper Coil Fail-Unlock / Fail-Locked DC 12V Surface Mounting Electric Strike Lock

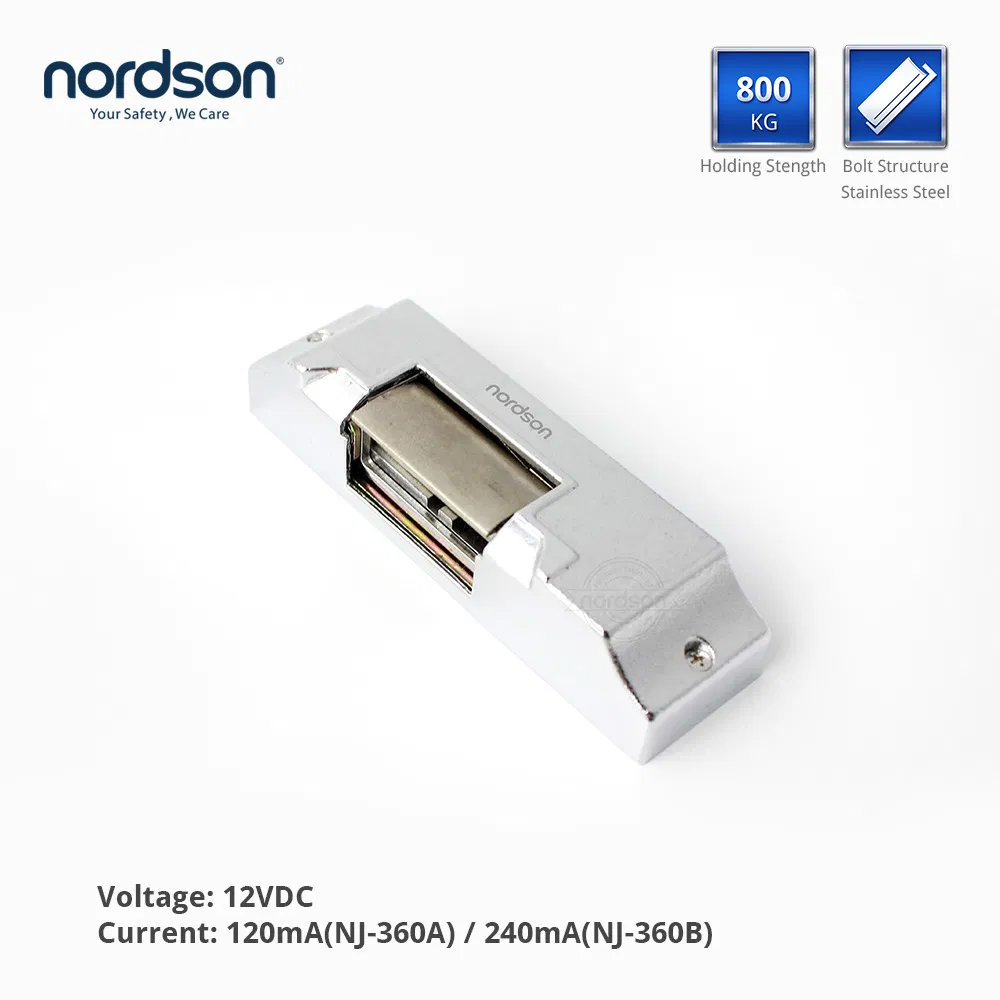

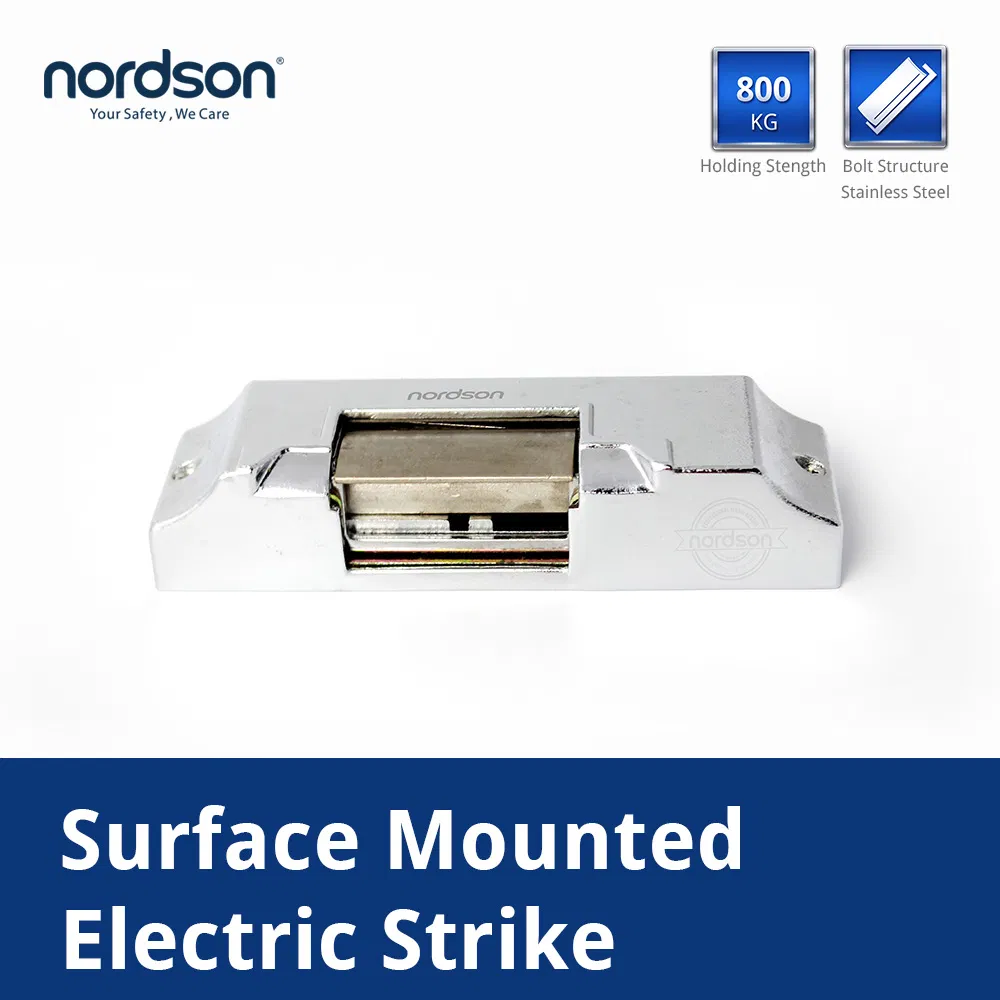

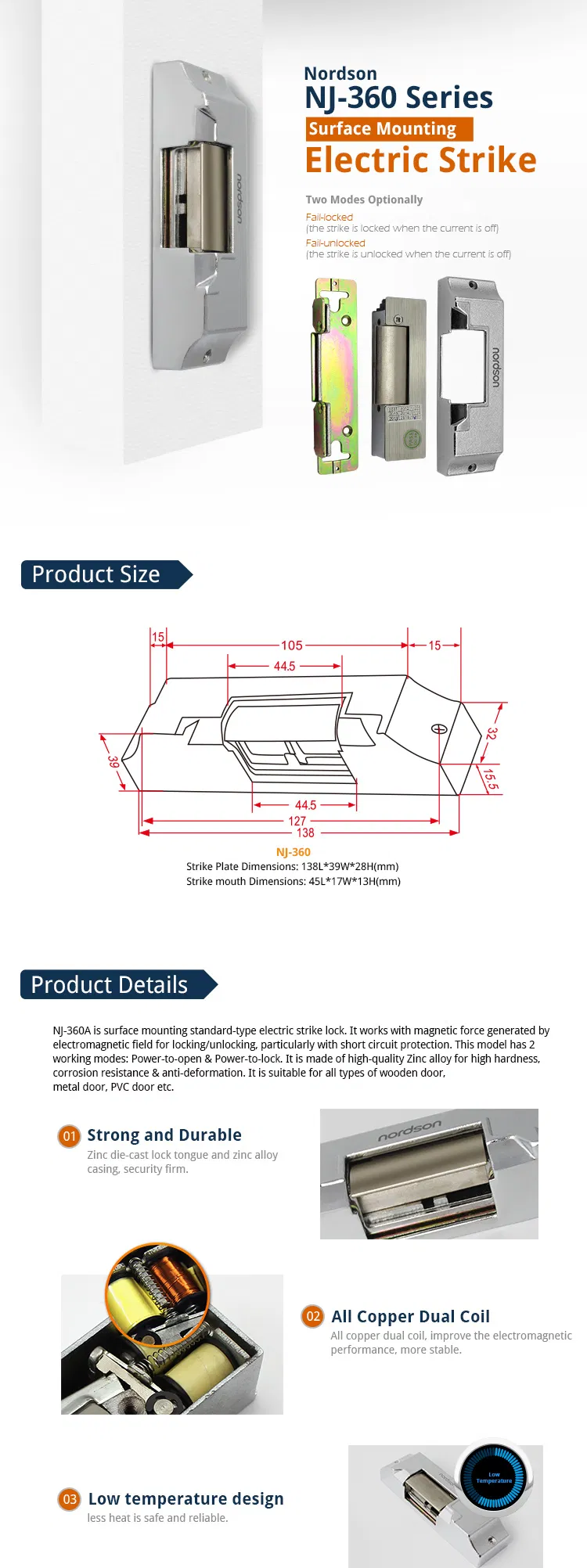

NJ-360A is a surface mounting standard-type electric strike lock. It works with magnetic force generated by an electromagnetic field for locking/unlocking, specifically featuring short circuit protection. This model offers two working modes: Power-to-open and Power-to-lock. Constructed from high-quality Zinc alloy, it ensures high hardness, corrosion resistance, and anti-deformation properties. It is suitable for various applications including wooden, metal, and PVC doors.

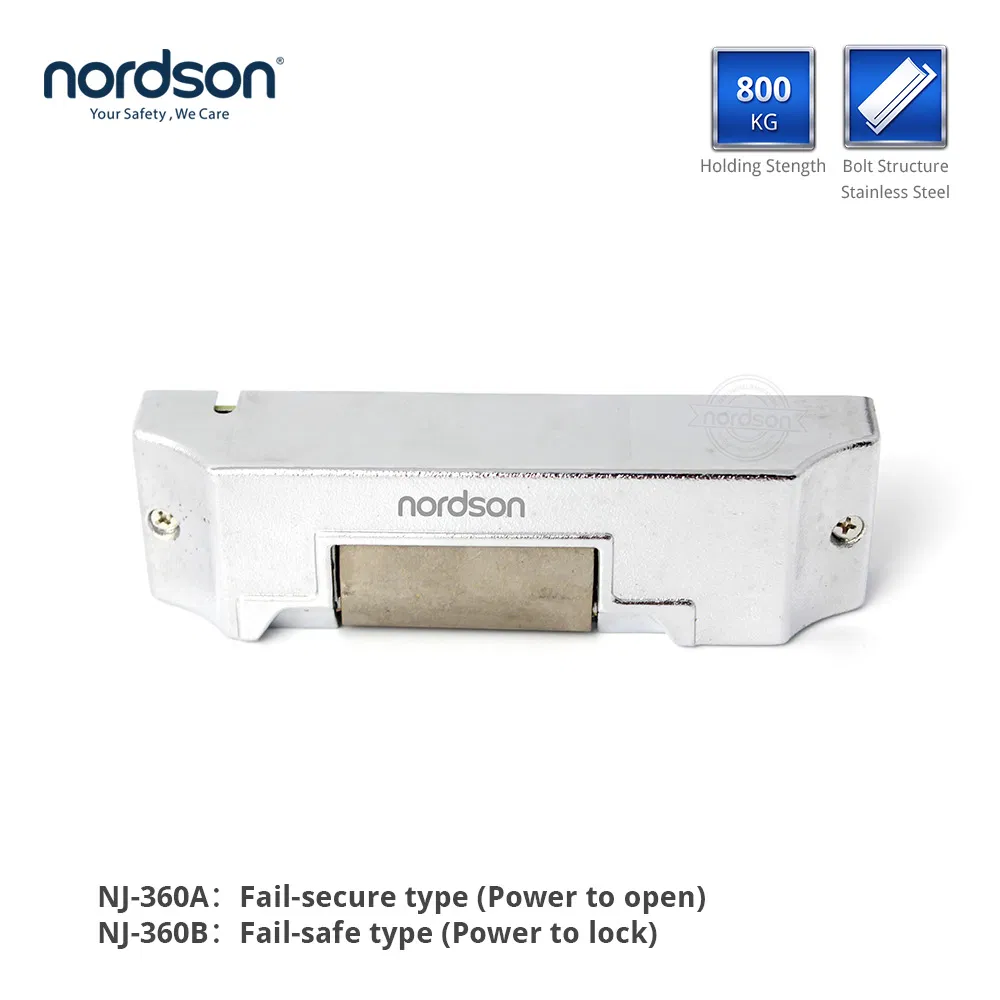

Version	NJ-360A: Fail-locked (locked when current is off) NJ-360B: Fail-unlocked (unlocked when current is off)

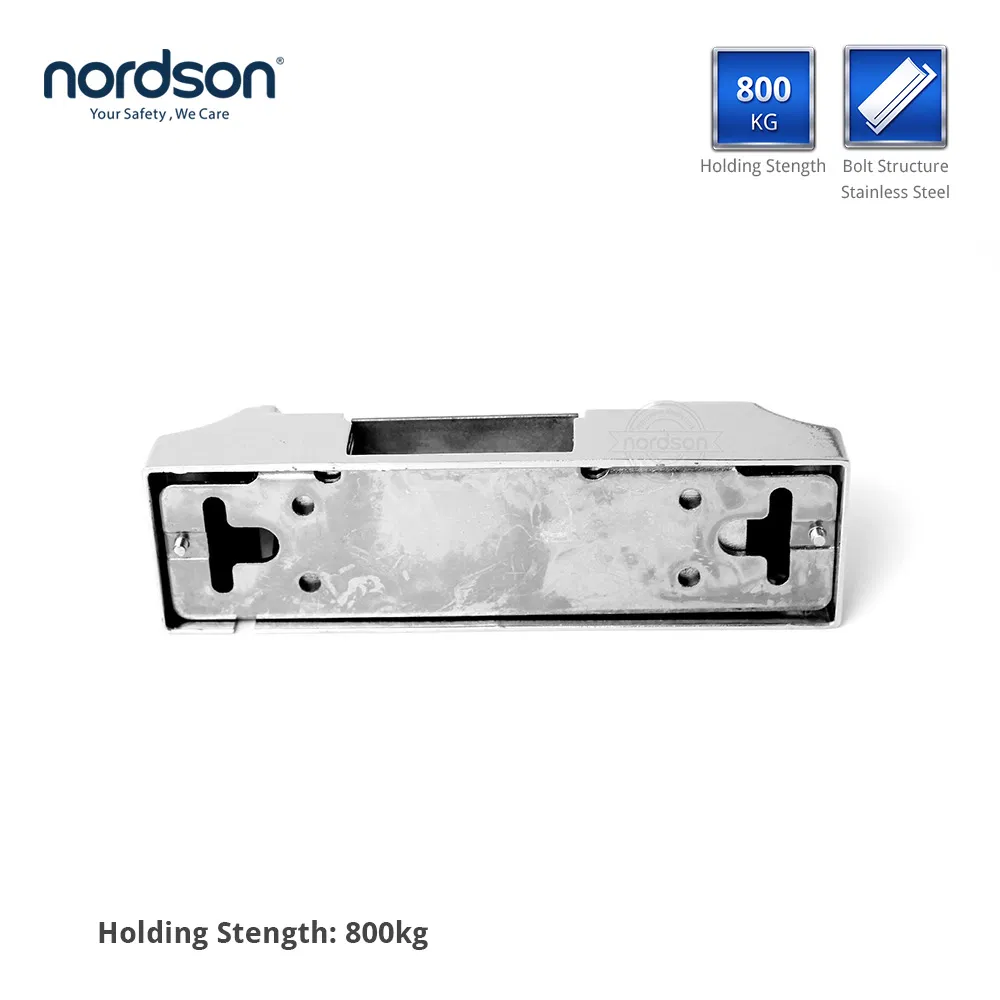

Shear Strength	1600Lbs (800kg)
Rated Operating Voltage	DC 12V
Standby Current	240mA
Face Plate Material	High Zinc Alloy
Operating Temperature	-10°C to +55°C
Suitable For	Wooden, Aluminum, Glass, Fireproof & Metal Doors
Strike Plate Dimensions	138L * 39W * 28H (mm)
Strike Mouth Dimensions	45L * 17W * 13H (mm)
Certifications	CE-marked & RoHS compliant

Frequently Asked Questions

What is the difference between NJ-360A and NJ-360B?

NJ-360A is a Fail-Locked version (remains locked when power is off), while NJ-360B is a Fail-Unlocked version (opens when power is off).

What is the maximum holding force of this electric strike?

This lock features a high shear strength of 1600lbs (approximately 800kg), providing robust security.

Is this lock suitable for outdoor metal doors?

Yes, it is designed for multiple door types including metal, wooden, aluminum, and fireproof doors, with a high-quality Zinc alloy construction for corrosion resistance.

What voltage is required for operation?

The lock operates on a rated voltage of DC 12V with a standby current of 240mA.

Can I install this on a fireproof door?

Yes, the NJ-360 series is specifically listed as suitable for fireproof doors as well as glass and aluminum frames.
