All Copper Coil Fail-Unlocken / Fail-Locked DC 12V Surface Mounting Electric Strike

1 / 5

All Copper Coil Fail-Unlocken / Fail-Locked DC 12V Surface Mounting Electric Strike

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

NJ-360A Electric strike

Style

Modern

Shape

Strike Lock

Anti-theft Standard

Shear Strength

1600lbs (800kg)

Operating Voltage

DC 12V

Face Plate Material

High Zinc Alloy

Weight

0.6kg

🔍 Product Description & Overview

All Copper Coil Fail-Unlock / Fail-Locked DC 12V Surface Mounting Electric Strike

NJ-360A is a surface mounting standard-type electric strike lock. It works with magnetic force generated by an electromagnetic field for locking/unlocking, particularly featuring short circuit protection. This model offers two working modes: Power-to-open (Fail-Locked) and Power-to-lock (Fail-Unlocked). Constructed from high-quality Zinc alloy, it provides exceptional hardness, corrosion resistance, and anti-deformation properties.

📊 Technical Specifications

Version	NJ-360A: Fail-locked (Locked when current is off) NJ-360B: Fail-unlocked (Unlocked when current is off)
Shear Strength	1600Lbs (800kg)
Rated Voltage	DC 12V
Standby Current	240mA
Face Plate Material	High Zinc Alloy
Ambient Temperature	-10°C to +55°C
Suitable For	Wooden, Aluminum, Glass, Fireproof & Metal Doors
Dimensions (L x W x D)	138L * 39W * 28H (mm)
Strike Mouth Size	45L * 17W * 13H (mm)
Certification	CE & RoHS Compliant

💡 Frequently Asked Questions

❓ What is the difference between NJ-360A and NJ-360B?

NJ-360A is Fail-Locked (remains locked when power is lost), while NJ-360B is Fail-Unlocked (unlocks automatically when power is cut).

❓ What types of doors are compatible with this electric strike?

This lock is versatile and suitable for wooden doors, aluminum doors, glass doors, metal doors, and even fireproof doors.

❓ Does this lock require a specific power supply?

Yes, it operates on a standard DC 12V rated voltage with a standby current of approximately 240mA.

❓ How strong is the NJ-360A electric strike?

It features a high shear strength of up to 1600lbs (800kg), providing robust security for various applications.

❓ Is the material durable against corrosion?

Yes, the face plate is made of high-quality Zinc alloy, which offers excellent hardness and high resistance to corrosion and deformation.

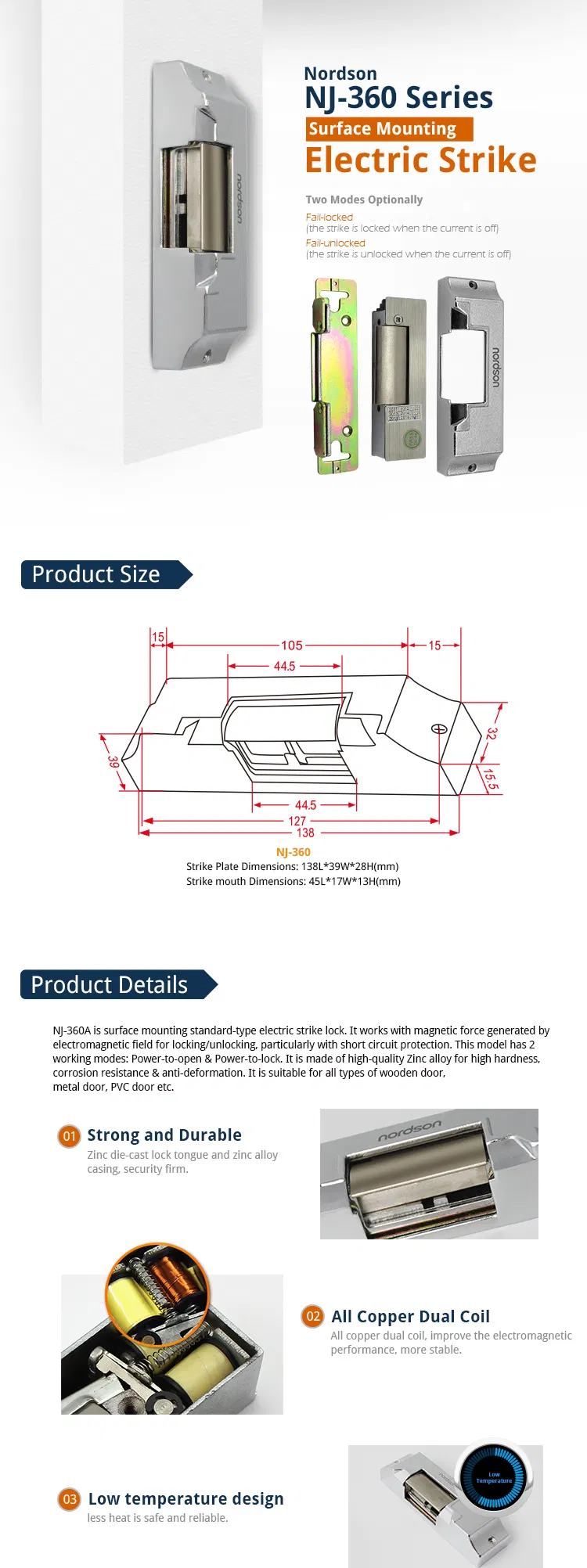

❓ What are the installation dimensions?

The plate dimensions are 138L * 39W * 28H (mm), and the strike mouth measures 45L * 17W * 13H (mm).

Product Detail

All Copper Coil Fail-Unlocken / Fail-Locked DC 12V Surface Mounting Electric Strike

Product Description

All Copper Coil Fail-Unlock / Fail-Locked DC 12V Surface Mounting Electric Strike
