Fail-Secure Adjustable Glass Door Custom Electric Strike Magnetic Electromagnetic Lock

Customization:	Available
Customized:	Customized
Certification:	RoHS, CCC

Send Inquiry

Product Description

Basic Information

Model NO.

NJ-320A Magnetic Electromagnetic Lock

Application

Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Garage, Community

Working Principle

Electronically Controlled Lock

Function

Fail-Safe, Fail-Secure

Type

Electric Strike

Material

Stainless Steel Bolt

Holding Strength

800kg

Voltage

DC12V

Weight

0.6kg

Specifications

CE, ROHS, SGS

Product Description

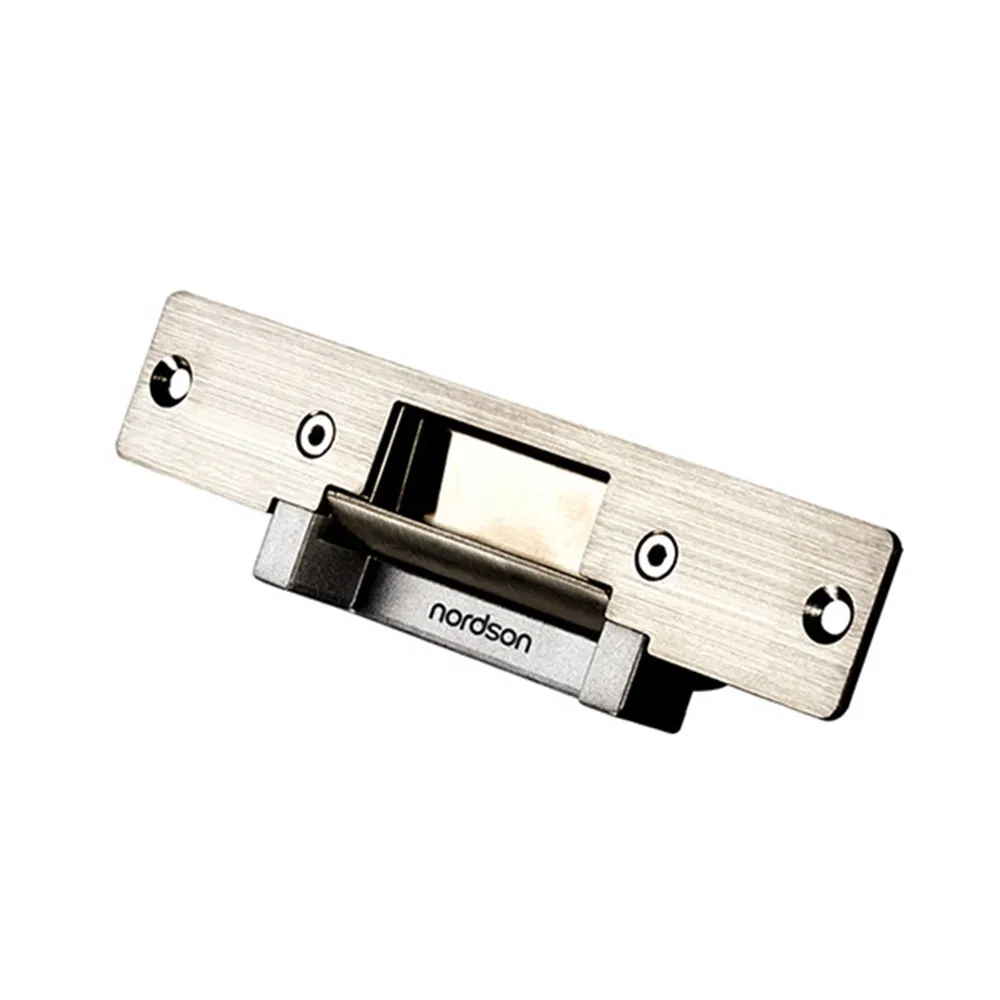

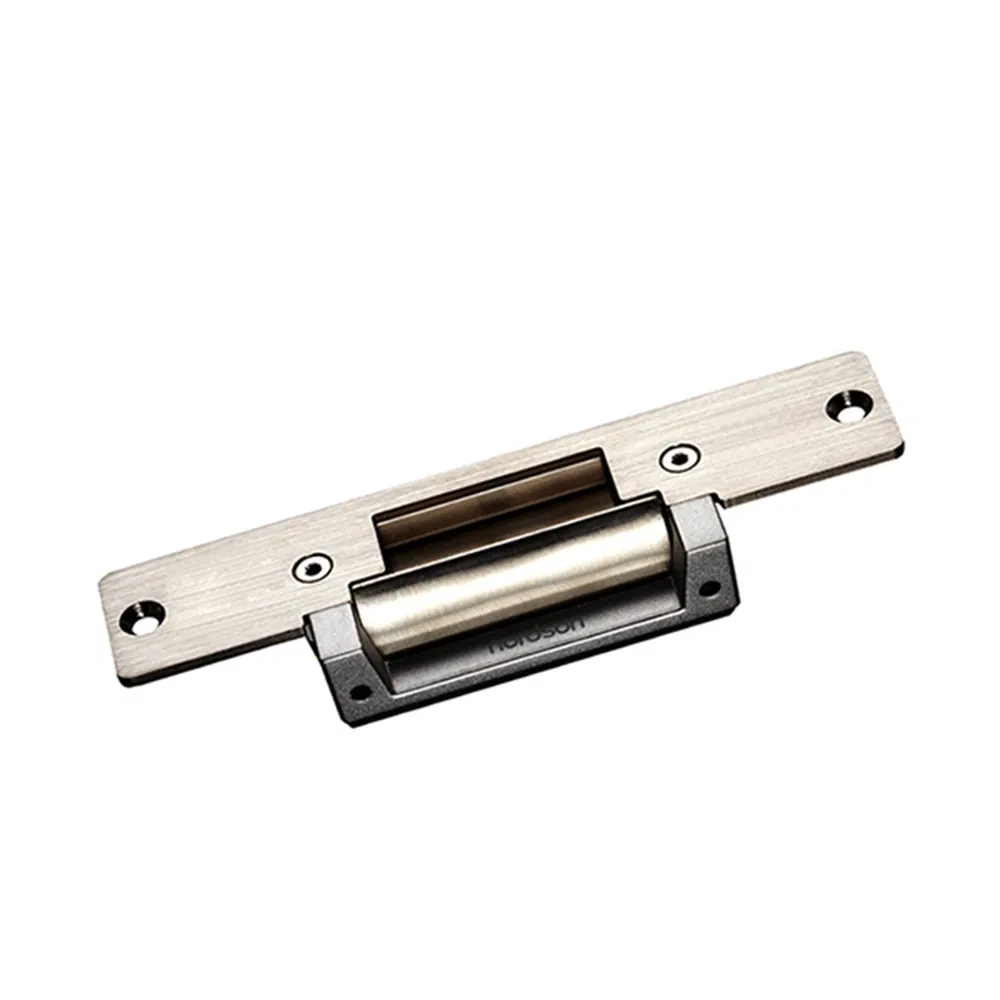

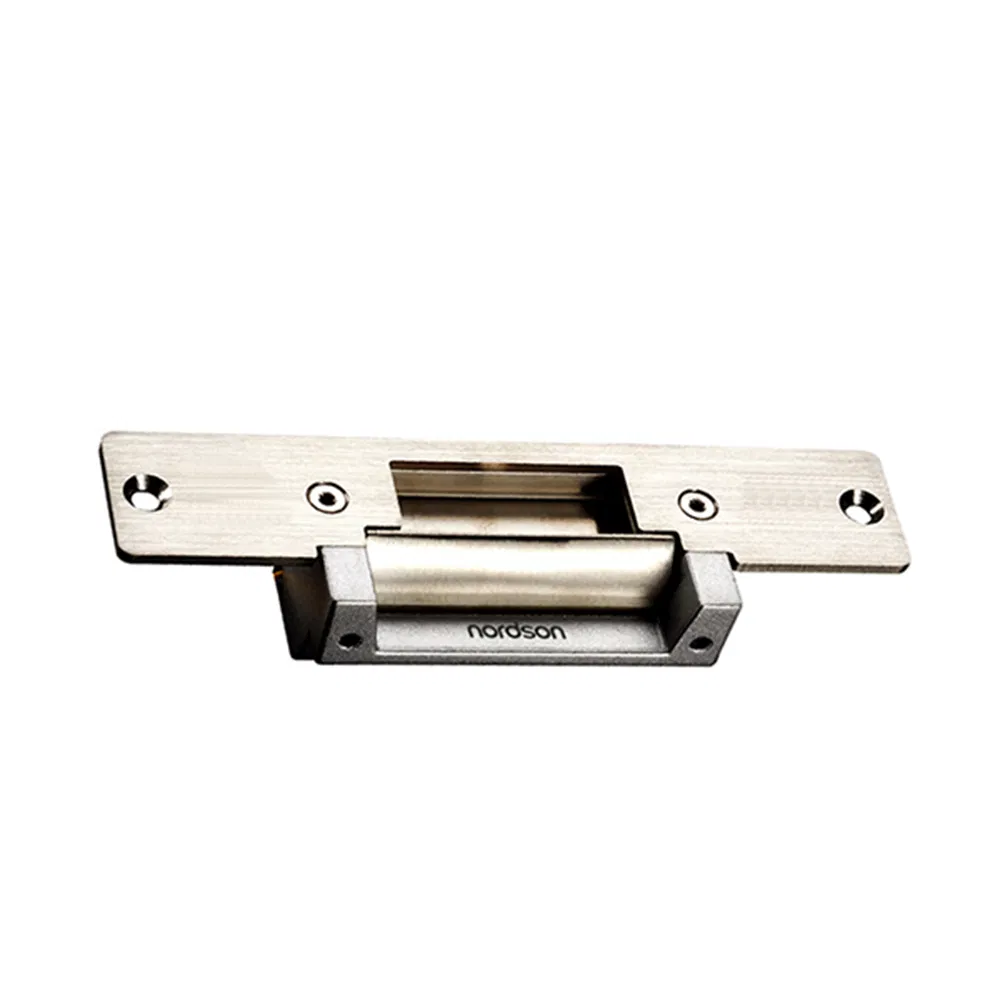

Fail-Secure Adjustable Glass Door Custom Electric Strike Lock

Model: NJ-320A-XL (Long Type European Electric Strike)
NJ-320B-S: Fail-safe type (Power to lock)
Suitable for: Wooden Door, Metal Door, PVC Door
Opening Mode: 90 Degree Swinging Door

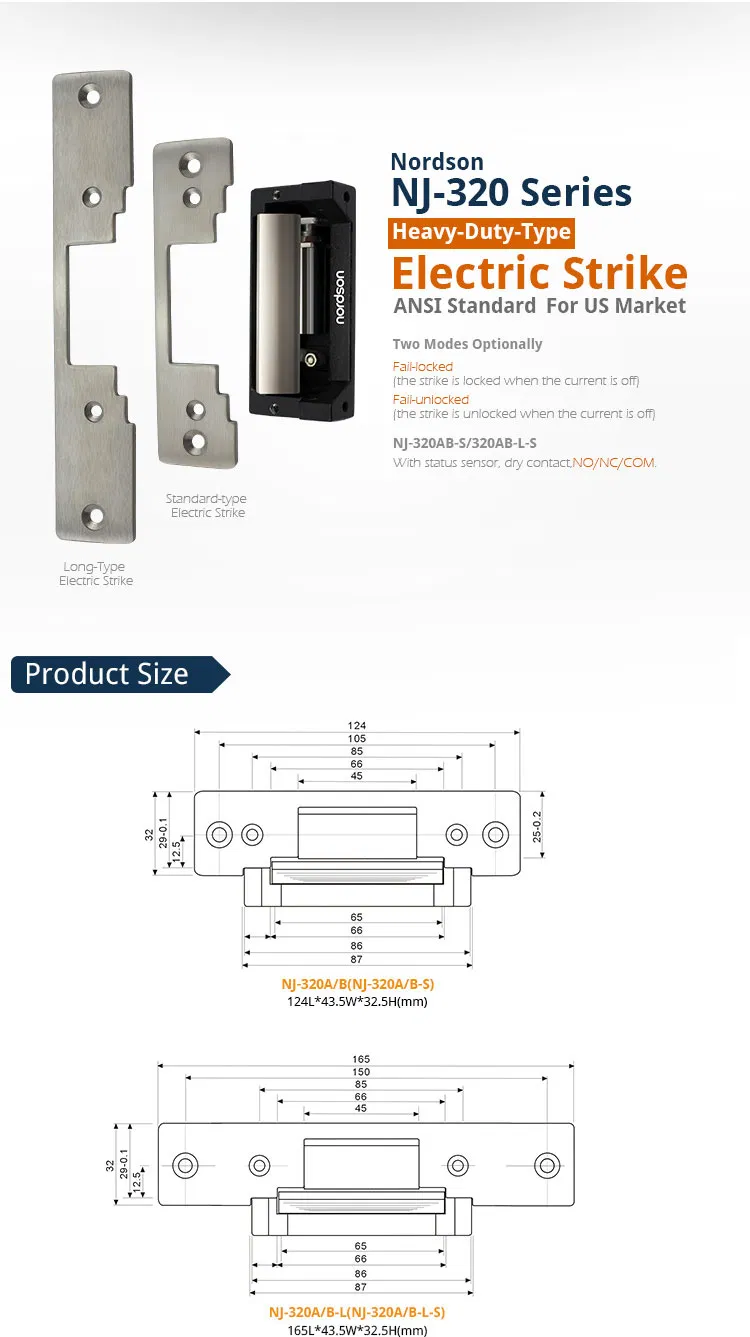

Lock Size	250Lx32Wx33H(mm)
Holding Strength	800kg

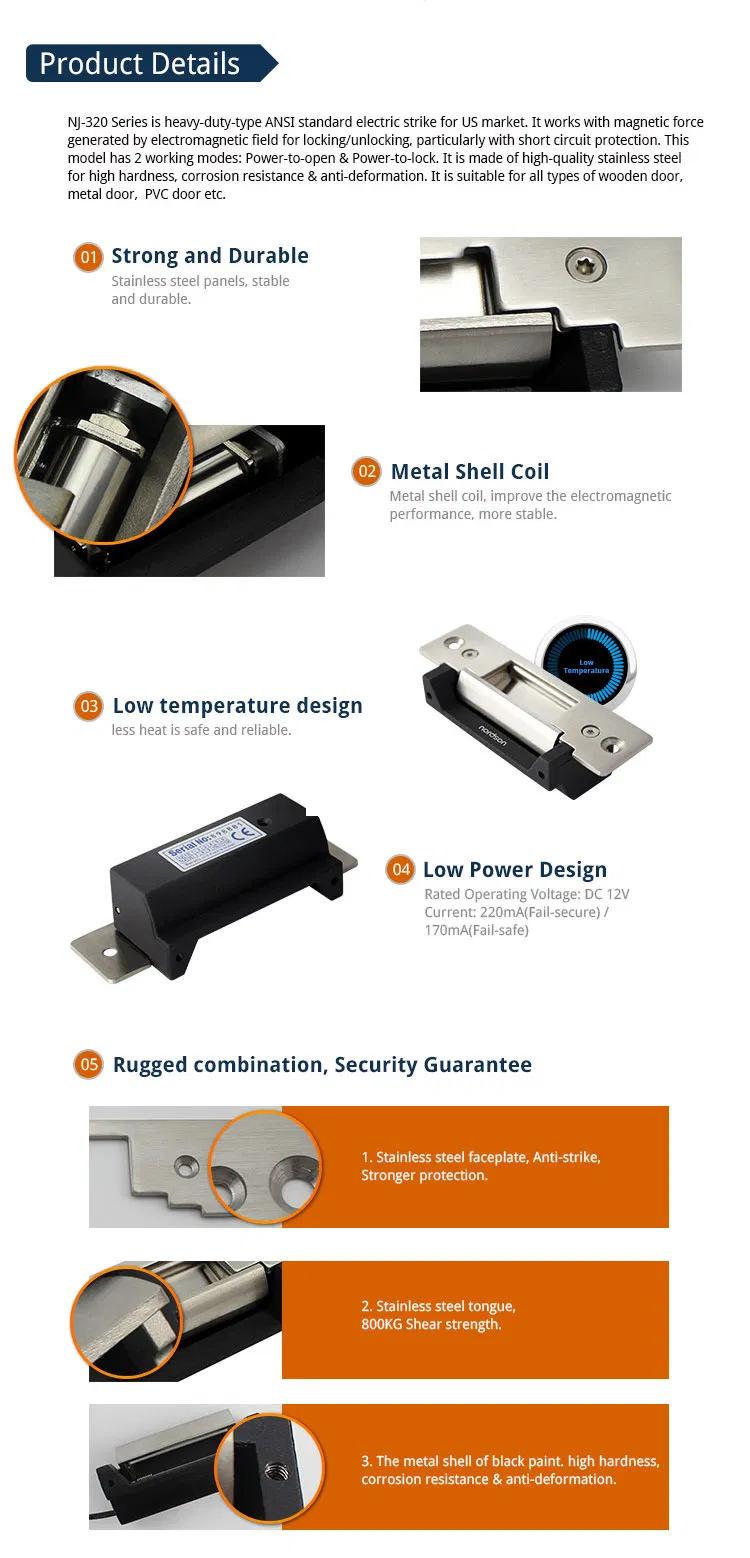

Bolt Structure	Stainless Steel
Voltage	12VDC
Current	170mA(NJ-320A) / 220mA(NJ-320B)
Signal Output	Door status Output, NO/NC/COM
Surface Temp	Within +20°C
Suitable Temp	-10~+25°C (14-131°F)
Face Plate Housing	Painted Steel
Function	Built-out MOV (Surge Protection)

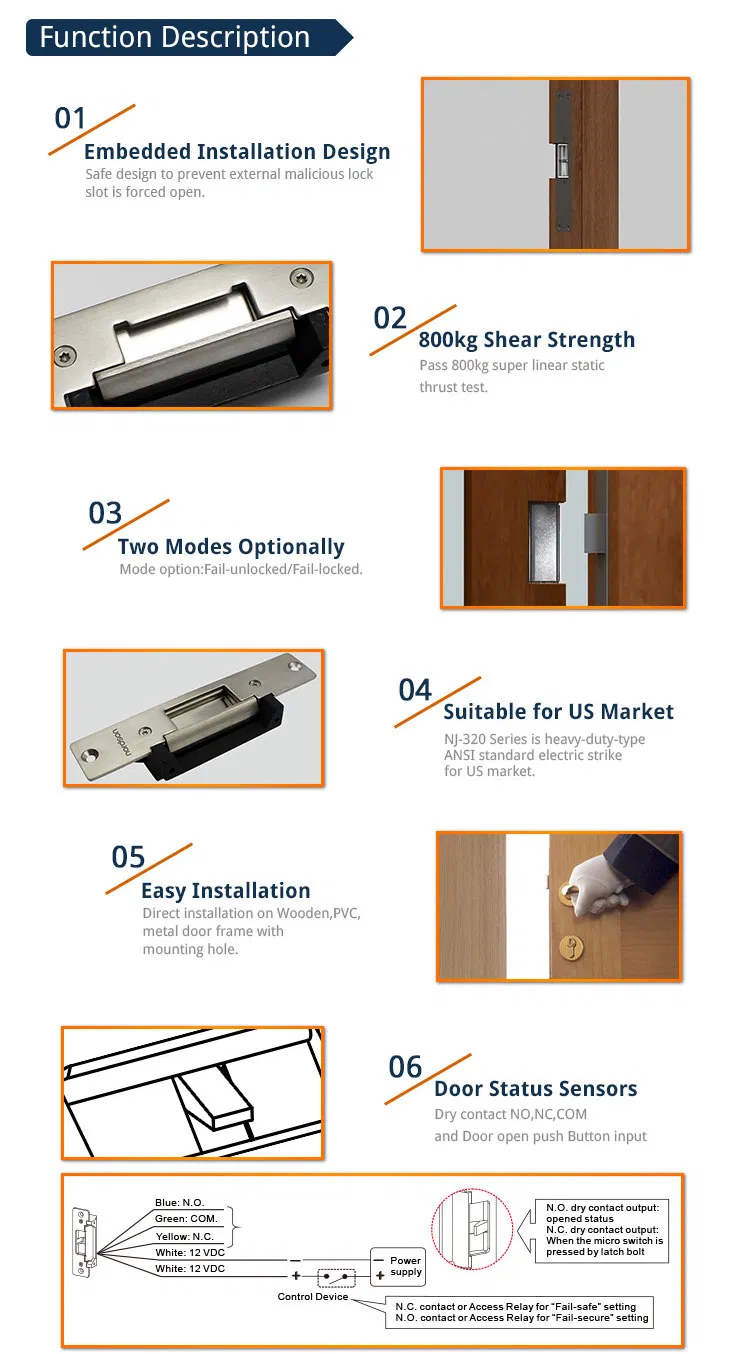

Product Gallery

Frequently Asked Questions

What is the maximum holding strength of this electric strike?

The NJ-320 series provides a robust holding strength of up to 800kg, ensuring high security for various door types.

What is the difference between NJ-320A and NJ-320B?

NJ-320A is a Fail-Secure type (power to unlock), while NJ-320B is a Fail-Safe type (power to lock).

Which door materials are compatible with this lock?

This lock is designed for versatility and is suitable for wooden doors, metal doors, and PVC doors.

Does this device support door status monitoring?

Yes, it features signal output for door status with NO, NC, and COM connections.

What are the electrical requirements for installation?

The lock operates on a standard DC12V voltage with a low current draw of 170mA to 220mA depending on the model.

Is the lock protected against voltage spikes?

Yes, the lock includes a built-out MOV (Metal Oxide Varistor) for surge protection.
